A-Shape Tubular Gin Pole with 120x7mm Tube Diameter, 6-13m Length, and Corrosion-Resistant Coating for Transmission Tower Construction

1 Piece
MOQ
Get the latest price
Price
A-Shape Tubular Gin Pole with 120x7mm Tube Diameter, 6-13m Length, and Corrosion-Resistant Coating for Transmission Tower Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: A-Shape Tubular Gin Pole
Model: LBGR120A / LBGR150A
Item No.: 03311-03321
Length: 6-13m
Tube Diameter: 120x7mm / 150x6mm
Safety Factor: 2.5
Weight: 7.5-8 Kg/m
Warranty: 1 Year
Highlight:

120x7mm Tube Diameter Gin Pole

,

6-13m Length Tubular Gin Pole

,

Corrosion-Resistant Coating A-Shape Gin Pole
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: LBGR120A
Payment & Shipping Terms
Packaging Details: Plywood case with steel-banded reinforcement for export
Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders
Payment Terms: L/C,T/T
Supply Ability: 3000 Pieces per Month
Product Description
A-Shape Tubular Gin Pole LBGR120A for Transmission Tower Construction
The A-shape tubular gin pole is a tubular steel lifting mast for erecting and servicing transmission towers and substation structures. Its triangular A-frame spreads the load over a wide base, and the tubular sections assemble to working lengths from 6m to 13m. Two models are available in 120mm and 150mm tube diameters, with the vertical load and safety factor data listed below.
Design and Structure

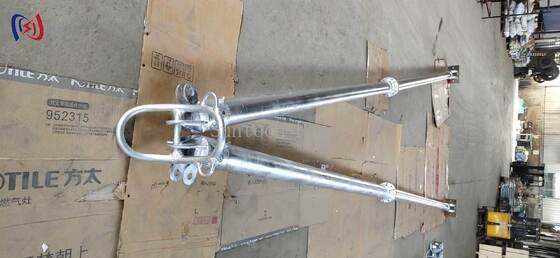

  • A-frame tubular design: wide triangular base and even load distribution for a stable footing.

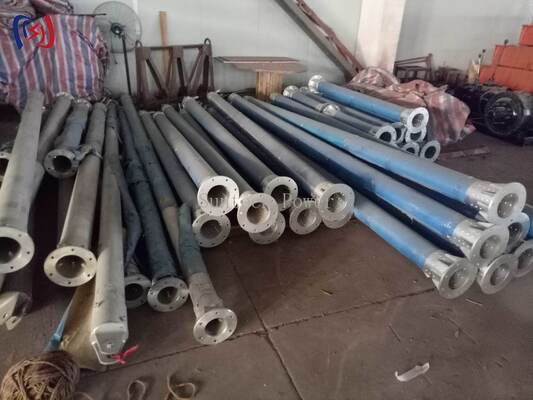

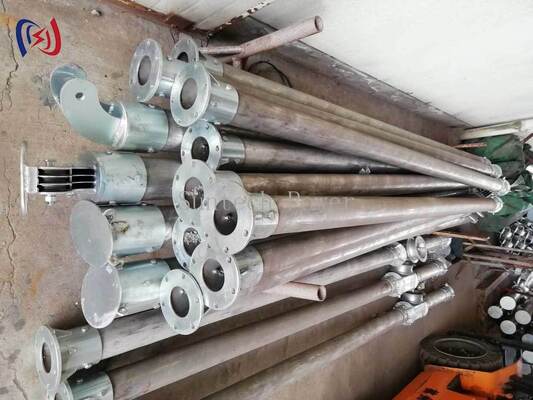

  • High-strength steel tube frame: welded tubular sections in 120mm and 150mm diameters.

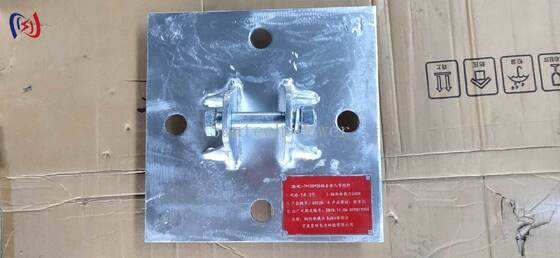

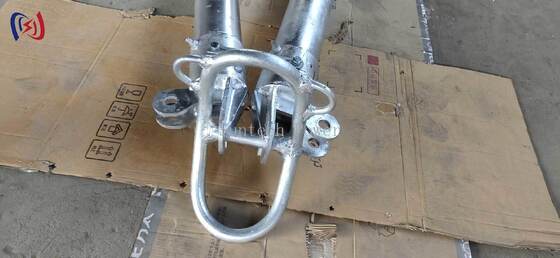

  • Reinforced connection joints: bolted connections at the mast head and base.
  • Modular sections: assemble to the required length for the tower being built.
  • Corrosion-resistant coating: suitable for outdoor site use.
  • Replaceable components: easier inspection and servicing.
Technical Specifications
Item No.ModelLength (m)Diameter x Wall (mm)Vertical Load (KN)Safety FactorWeight (kg/m)
03311LBGR120A6-9120x717-302.57.5
03321LBGR150A8-13150x613-312.58
Quality Control and Testing
Tubular sections, joints and fittings are assembled and checked for fit, straightness and connection integrity before packing. Each batch is inspected against its stated tube size and working length. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Transmission tower assembly
  • Substation structure erection
  • Temporary lifting operations
  • Emergency tower repairs
Assembly and Use
  • Site preparation: level the work area and verify ground conditions.
  • Assembly: join the labelled tubular sections and secure all connections.
  • Operation: monitor the load and keep the working zone clear.
  • Dismantling: reverse the assembly steps and store components in a dry place.
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom lengths, tube sizes and branding
  • Model selection support (6m to 13m length) based on tower height and load
  • Spare tubular sections and fittings available
  • 12-month limited warranty
Tell us your tower height, working length and load, and our engineers will confirm the right gin pole model and a factory-direct quotation within one working day.
