Modular Lattice Gin Pole with Corrosion-Resistant Coating for 8-18m Power Tower Construction

1 Piece
MOQ
Negotiation
Price
Modular Lattice Gin Pole with Corrosion-Resistant Coating for 8-18m Power Tower Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Inner-Suspended Lattice Gin Pole
Model: LBNX-300A / LBNX-300B
Item No.: 03131-03141
Range: 8-18m
Section: 300x300mm
Safety Factor: 2.5
Weight: 10.5-11.0 Kg/m
Warranty: 1 Year
Highlight:

Modular Lattice Gin Pole

,

Corrosion-Resistant Gin Pole

,

8-18m Lattice Gin Pole
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: LBNX-300A
Payment & Shipping Terms
Packaging Details: Plywood case with steel-banded reinforcement for export
Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders
Payment Terms: L/C,T/T
Supply Ability: 2000 Pieces per Month
Product Description

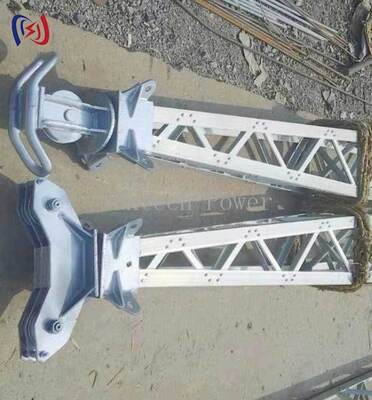

Inner-Suspended Lattice Gin Pole LBNX-300A for Tower Construction
The inner-suspended lattice gin pole is a modular lifting mast for power transmission tower construction. It is suspended inside the tower body, which keeps the working area around the tower clear. The lattice sections bolt together to build working heights from 8m to 18m, and the vertical load and safety factor data for each model is listed below.
Design and Structure
  • Inner-suspension design: the mast is held inside the tower body, leaving the surrounding work area unobstructed.
  • Modular lattice sections: interlocking lengths assemble to the required height.
  • Reinforced steel joints: bolted connections at the mast head and base.
  • Square steel tube main parts: 50x50mm main members with 25x25mm to 30x30mm accessories.
  • Corrosion-resistant coating: suitable for outdoor site use.
  • Replaceable components: easier inspection and servicing.
Technical Specifications
Item No.ModelRange (m)Section (mm)Main Part (mm)Accessory (mm)Vertical Load (KN)Safety FactorWeight (kg/m)
03131LBNX-300A8-16300x30050x50x425x25x313-382.510.5
03141LBNX-300B11-18300x30050x50x530x30x315-402.511.0
Quality Control and Testing
Lattice sections, joints and accessories are assembled and checked for fit, straightness and connection integrity before packing. Each batch is inspected against its stated section size and working range. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Transmission tower assembly
  • Substation structure erection
  • Temporary lifting operations
  • Emergency tower repairs
Assembly and Use
  • Site preparation: level the work area and verify ground conditions.
  • Assembly: join the labelled lattice sections and secure all connections.
  • Operation: monitor the load and keep the working zone clear.
  • Dismantling: reverse the assembly steps and store components in a dry place.
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom heights, sections and branding
  • Model selection support (8m to 18m range) based on tower height and load
  • Spare lattice sections and accessories available
  • 12-month limited warranty
Tell us your tower height, working range and load, and our engineers will confirm the right gin pole model and a factory-direct quotation within one working day.
