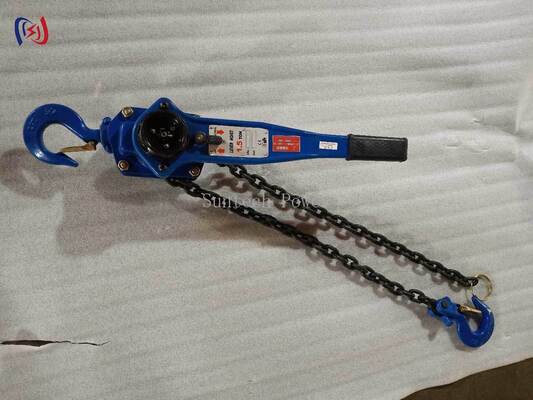

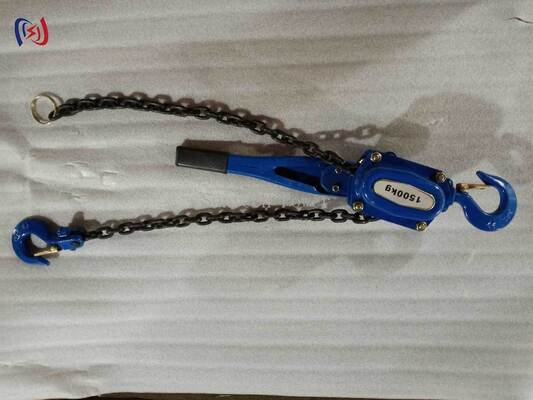

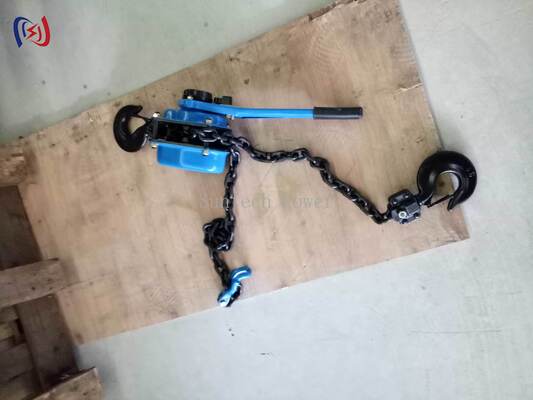

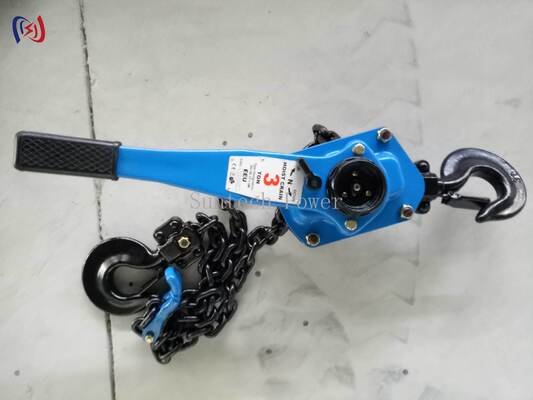

Heavy Duty Chain Hoist 5-90KN Manual Chain Block with Automatic Brake for Power Line Installation

1 Piece
MOQ
Get the latest price
Price
Heavy Duty Chain Hoist 5-90KN Manual Chain Block with Automatic Brake for Power Line Installation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Chain Type Handle Hoist
Model: 14201 / 14211 / 14215 / 14221 / 14231 / 14241 / 14245
Rated Load: 5-90KN
Standard Lifting Height: 1.5m (3m / 5m Options)
Weight: 4.2-47kg
Weight Of 1m Chain: 0.52-6.6kg
Mechanism: Manual Hand Chain
Warranty: 1 Year
Highlight:

5-90KN Rated Load Chain Hoist

,

Manual Hand Chain Operation Chain Block

,

Automatic Brake System Chain Hoist
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: Chain Type Handle Hoist
Payment & Shipping Terms
Packaging Details: Plywood case with steel-banded reinforcement for export
Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders
Payment Terms: L/C,T/T
Supply Ability: 3000 Pieces per Month
Product Description
Heavy Duty Chain Hoist for Lifting and Positioning on Power Line Work
The heavy duty chain hoist is a manual chain block for lifting, holding and positioning loads on power line and industrial work. Its hand chain drives forged gears that raise and lower the load in controlled steps, while an automatic brake keeps it in place when the operator lets go. Seven models cover rated loads from 5KN to 90KN, with a standard 1.5m lifting height.
Design and Operation
  • Manual hand chain operation: precise, controlled load positioning.
  • High-tensile steel load chain: standard 1.5m lift, with 3m and 5m versions available.
  • Forged alloy steel gears: built for repeated lifting under load.
  • Automatic brake system: holds the load when the hand chain is released.
  • Zinc-plated finish: corrosion protection for outdoor use.
  • Replaceable wear components: easier servicing in the field.
Technical Specifications
Item No.Rated Load (KN)Min. Hook Distance (mm)Lifting Chain LinesWeight (kg)Weight of 1m Chain (kg)
14201526014.20.52
142117.532017.50.8
1421510380111.51.4
1422115380111.51.4
14231304801212.2
1424160620231.54.4
14245907003476.6
Chain Length Options
  • Standard lifting height: 1.5m
  • 3m chain versions available (item numbers 14202, 14212, 14216, 14222, 14232, 14242, 14246)
  • 5m chain versions available (item numbers 14204, 14214, 14218, 14224, 14234, 14244, 14248)
Quality Control and Testing
Gears, chain, hooks and frames are assembled and checked for chain feed, brake hold and general function before packing. Each batch is inspected against its stated rated load. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Transmission tower component lifting
  • Substation equipment installation
  • Temporary cable support systems
  • Emergency repair operations
Handling and Care
  • Before use: inspect the chain, hooks and brake, and confirm the load capacity.
  • In use: keep a steady lifting speed and watch the load position.
  • After use: clean off dirt and lubricate the chain and gears.
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom lifting heights, chain lengths and branding
  • Model selection support (5KN to 90KN) based on load and lift
  • 3m and 5m chain-length versions available
  • 12-month limited warranty
Tell us your load, lift height and chain length, and our engineers will confirm the right model and a factory-direct quotation within one working day.
