Name: Ratchet Lever Hoist 10-40KN with Lever-operated Ratchet and Automatic Braking System for Power Line Construction
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SJJS-1A
Price: 285715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Ratchet Lever Hoist

Model: SJJS-1A / SJJS-2A / SJJS-3A / SJJS-4A

Item No.: 14171A / 14172A / 14173A / 14174A

Rated Load: 10-40KN

Weight: 2-6.3kg

Mechanism: Lever-operated Ratchet

Warranty: 1 Year

Highlight:

10-40KN Rated Load Ratchet Lever Hoist

Lever-operated Ratchet Lever Hoist

Automatic Braking System Manual Hoist

Basic Infomation

Place of Origin: Ningbo, China

Brand Name: Suntech

Certification: ISO 9001

Model Number: SJJS-1A

Payment & Shipping Terms

Packaging Details: Plywood case with steel-banded reinforcement for export

Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders

Payment Terms: L/C,T/T

Supply Ability: 3000 Pieces per Month

Gallery

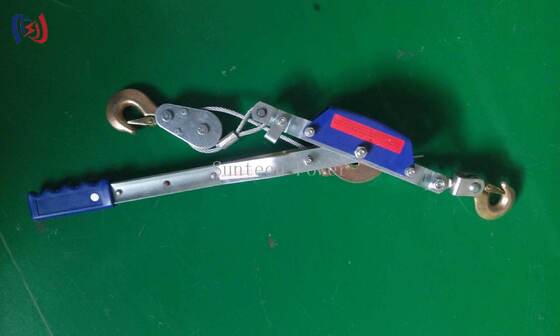

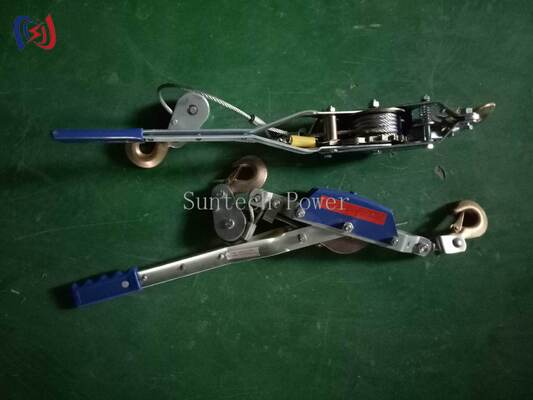

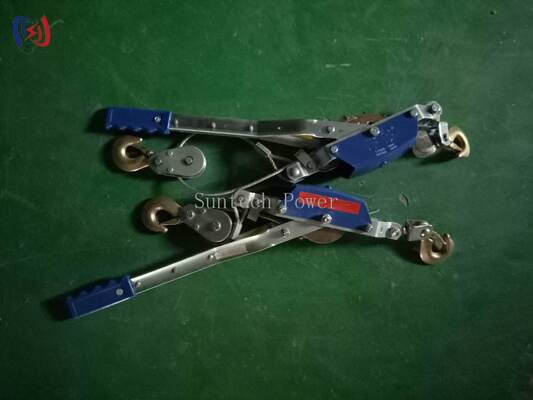

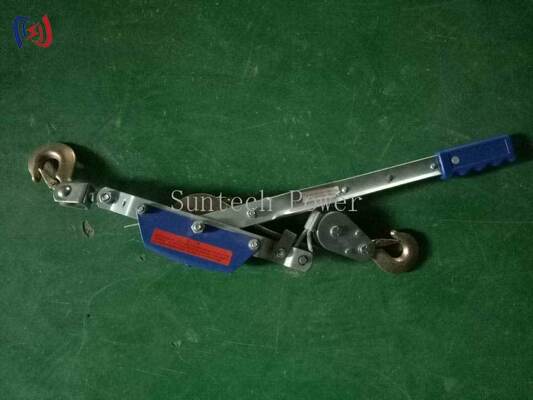

Ratchet Lever Hoist 10-40KN with Lever-operated Ratchet and Automatic Braking System for Power Line Construction

Product Description

Ratchet Lever Hoist for Lifting and Holding Loads on Power Line Projects

The ratchet lever hoist is a manual lifting tool for power line projects, where loads have to be raised, held and positioned precisely from an elevated structure. Its lever-operated ratchet gear train takes up load in small steps and locks positively, and the automatic brake holds the load when the handle is released. Four models cover rated loads from 10KN to 40KN, with weights from 2kg to 6.3kg.

Design and Operation

Lever-operated ratchet: incremental, controlled load adjustment.
Forged alloy steel gears and reinforced frame: built for repeated lifting under load.
Automatic braking system: holds the load when the handle is released.
Positive locking: holds the load at the chosen position.
Ergonomic lever: easier to work from a structure.
Zinc-plated finish: corrosion protection for outdoor use.

Technical Specifications

Item No.	Model	Rated Load (KN)	Weight (kg)
14171A	SJJS-1A	10	2
14172A	SJJS-2A	20	3.5
14173A	SJJS-3A	30	4.5
14174A	SJJS-4A	40	6.3

Quality Control and Testing

Gears, frames and hooks are assembled and checked for ratchet operation, brake hold and general function before packing. Each batch is inspected against its stated rated load. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.

Typical Applications

Transmission tower assembly
Substation equipment installation
Temporary cable support systems
Emergency repair operations

Handling and Care

Before use: inspect the hooks and body, and confirm the load capacity.
In use: keep a steady lifting speed and watch the load position.
After use: clean off dirt and lubricate the moving parts.

Factory Support and Buyer Assurance

Manufacturer-direct pricing with no trading-layer mark-up
OEM and ODM available with custom configurations and branding
Model selection support (SJJS-1A to SJJS-4A) based on load
Replaceable wear parts available
12-month limited warranty

Tell us your load, lift height and working conditions, and our engineers will confirm the right SJJS model and a factory-direct quotation within one working day.
