Wire Rope Handle Hoist with 8-54KN Rated Load Manual Ratchet Lever and 20m Steel Rope for Power Line Construction

1 Piece
MOQ
Get the latest price
Price
Wire Rope Handle Hoist with 8-54KN Rated Load Manual Ratchet Lever and 20m Steel Rope for Power Line Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wire Rope Handle Hoist
Model: HSS408 / HSS416 / HSS432 / HSS454
Item No.: 14183 / 14184 / 14185 / 14186
Rated Lifting / Pulling: 8/12.5 - 54 KN
Rope Diameter: 8.3-20mm
Standard Rope Length: 20m
Net Weight: 6.8-52kg
Mechanism: Manual Ratchet Lever
Warranty: 1 Year
Highlight:

8-54KN Rated Load Wire Rope Handle Hoist

,

Manual Ratchet Lever Wire Rope Handle Hoist

,

20m Steel Rope Wire Rope Handle Hoist
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: HSS408
Payment & Shipping Terms
Packaging Details: Plywood case with steel-banded reinforcement for export
Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders
Payment Terms: L/C,T/T
Supply Ability: 3000 Pieces per Month
Product Description

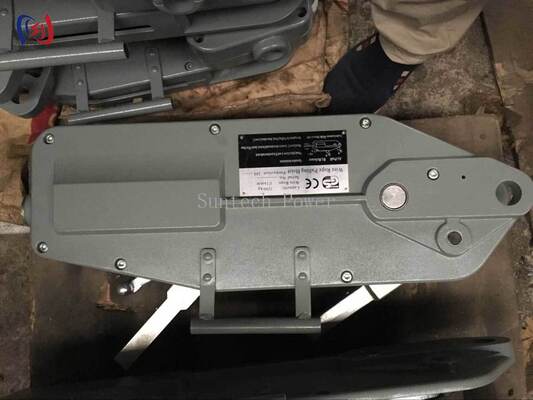

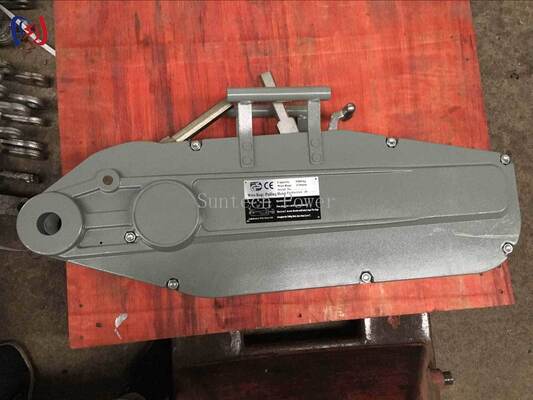

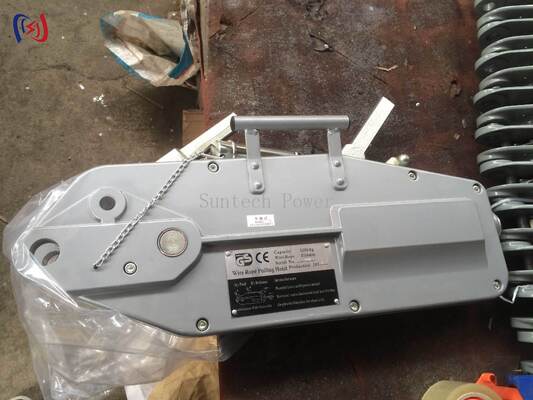

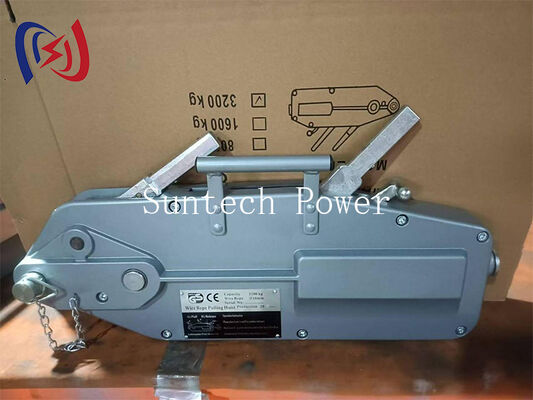

Wire Rope Handle Hoist for Lifting and Pulling on Power Line Projects
The wire rope handle hoist is a manual lever hoist for lifting and pulling loads on power line projects. A ratchet lever and forged gear train let the operator raise, hold and lower a load in controlled steps, while an automatic brake keeps it in place when the handle is released. Four models cover rated lifting and pulling from 8KN to 54KN, with a standard 20m steel rope and net weights from 6.8kg to 52kg.
Design and Operation
  • Manual ratchet lever: controlled raising, holding and lowering.
  • Forged alloy steel gears: built for repeated lifting under load.
  • High-tensile steel rope: supplied with a standard 20m length.
  • Automatic brake system: holds the load when the handle is released.
  • Overload protection device: guards against over-tension.
  • Zinc-plated finish: corrosion protection for outdoor work.
  • Ergonomic handle: keeps hand effort within the rated range.
Technical Specifications
Item No.ModelRated Lifting / Pulling (KN)Once Journey (mm)Rope Diameter (mm)Standard Rope Length (m)Net Weight (kg)Hand Force at Rated Load (N)
14183HSS4088 / 12.5408.3206.8343
14184HSS41616 / 2540112013400
14185HSS43232 / 5016162025441
14186HSS4545420202052550
Quality Control and Testing
Gears, frames and rope are assembled and checked for ratchet operation, brake hold and overload-device function before packing. Each batch is inspected against its stated rated load. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Transmission tower component lifting
  • Substation equipment installation
  • Temporary cable support systems
  • Emergency repair operations
Handling and Care
  • Before use: inspect the rope, hook and brake, and confirm the load is within rating.
  • In use: keep the load steady and watch for rope damage.
  • After use: clean and lubricate the moving parts and store dry.
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom configurations and branding
  • Model selection support (HSS408 to HSS454) based on load and rope length
  • Replaceable wear parts available
  • 12-month limited warranty
Tell us your load, lift height and working conditions, and our engineers will confirm the right HSS model and a factory-direct quotation within one working day.
