Name: Ratchet Wire Tightener with 10-30KN Rated Load and 1200-1500mm Tight-Line Length Featuring Forged Steel Gears
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SJJA-1
Price: 285715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Ratchet Withdrawing Wire Tightener

Model: SJJA-1 / SJJA-2 / SJJA-3

Item No.: 14102 / 14103 / 14104

Rated Load: 10-30KN

Tight-Line Length: 1200-1500mm

Weight: 3.5-6kg

Mechanism: Ratchet, Forged Steel Gears

Warranty: 1 Year

Highlight:

10-30KN Rated Load Ratchet Wire Tightener

1200-1500mm Tight-Line Length Wire Tightener

Forged Steel Gears Conductor Tightener

Basic Infomation

Place of Origin: Ningbo, China

Brand Name: Suntech

Certification: ISO 9001

Model Number: SJJA-1

Payment & Shipping Terms

Packaging Details: Plywood case with steel-banded reinforcement for export

Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders

Payment Terms: L/C,T/T

Supply Ability: 3000 Pieces per Month

Gallery

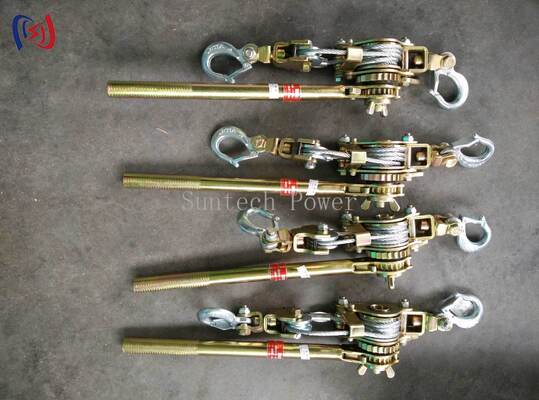

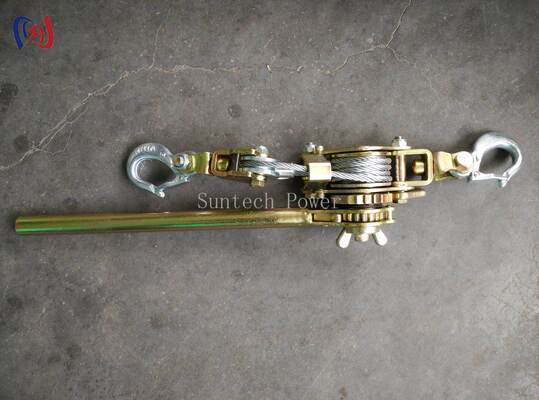

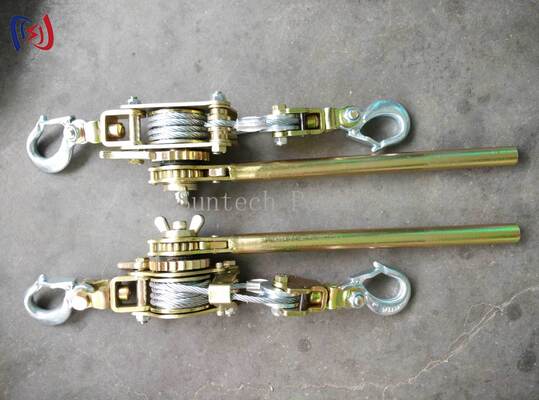

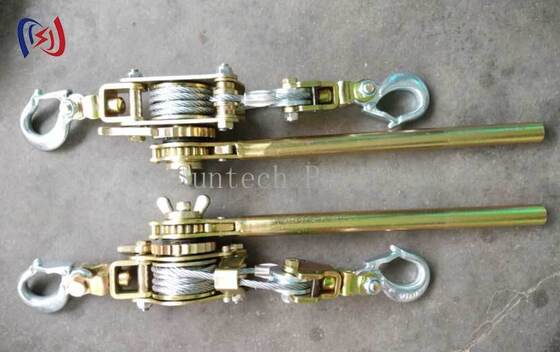

Ratchet Wire Tightener with 10-30KN Rated Load and 1200-1500mm Tight-Line Length Featuring Forged Steel Gears

Product Description

Ratchet Wire Tightener for Precise Conductor Tensioning on Power Line Work

The ratchet wire tightener pulls and holds tension on a conductor or wire during stringing, using a ratchet lever so the operator can take up load in small, controlled steps rather than in one movement. Three models cover rated loads from 10KN to 30KN, with tight-line lengths from 1200mm to 1500mm, which suits overhead line stringing, substation work and temporary wire securing.

Design and Operation

Ratchet mechanism: incremental tension take-up with positive locking at the chosen tension.
Forged steel gears and reinforced frame: built for repeated pulling under load.
Non-marring jaws with rounded edges: reduce marking on the conductor.
Quick release: fast wire changes between pulls.
Ergonomic handle: easier to work the lever up on a structure.
Fail-safe locking: holds the load if the operator releases the handle.

Technical Specifications

Item No.	Model	Rated Load (KN)	Tight-Line Length (mm)	Weight (kg)
14102	SJJA-1	10	1200	3.5
14103	SJJA-2	20	1500	4.5
14104	SJJA-3	30	1500	6

Quality Control and Testing

Gears and frames are forged, machined and assembled, then checked for ratchet operation, lock function and grip before packing. Each batch is inspected against its stated rated load. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.

Typical Applications

Overhead transmission line installation
Underground cable pulling operations
Substation wire tensioning
Temporary wire securing

Handling and Care

Before use: inspect the ratchet mechanism and check wire compatibility.
In use: keep a steady pulling speed and watch the tension indicator.
After use: clean off dirt and lubricate the moving parts.

Factory Support and Buyer Assurance

Manufacturer-direct pricing with no trading-layer mark-up
OEM and ODM available with custom configurations and branding
Model selection support (SJJA-1 to SJJA-3) based on load and length
Replaceable wear parts available
12-month limited warranty

Tell us your conductor size, required tension and working length, and our engineers will confirm the right SJJA model and a factory-direct quotation within one working day.
