Dual Hook Steel Turnbuckle with 5-100KN Rated Load, Hot-dip Galvanized Finish, and Adjustable Distance 250-600mm for Power Line Tensioning

1 Piece
MOQ
Get the latest price
Price
Dual Hook Steel Turnbuckle with 5-100KN Rated Load, Hot-dip Galvanized Finish, and Adjustable Distance 250-600mm for Power Line Tensioning
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Dual-Hook Steel Turnbuckle
Model: SJS-0.5 / SJS-1 / SJS-2 / SJS-3 / SJS-5 / SJS-8 / SJS-10
Item No.: 14111 / 14112 / 14113 / 14114 / 14115 / 14116 / 14117
Rated Load: 5-100KN
Max Centre Distance: 800-1740mm
Adjustable Distance: 250-600mm
Weight: 2.5-10kg
Finish: Hot-dip Galvanized
Warranty: 1 Year
Highlight:

5-100KN Rated Load Turnbuckle

,

Hot-dip Galvanized Turnbuckle

,

Adjustable Distance 250-600mm Tensioning Device
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: SJS-1
Payment & Shipping Terms
Packaging Details: Plywood case with steel-banded reinforcement for export
Delivery Time: 3-5 working days for stock, 15-25 days for bulk orders
Payment Terms: L/C,T/T
Supply Ability: 4000 Pieces per Month
Product Description

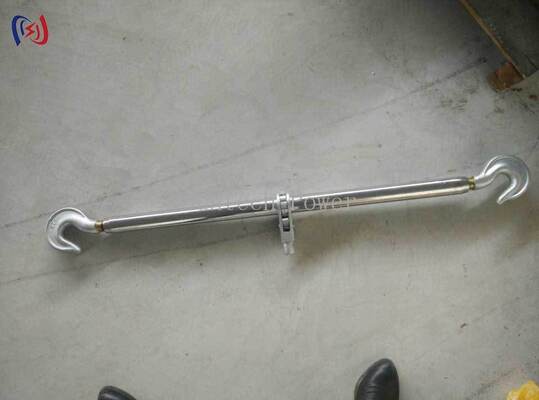

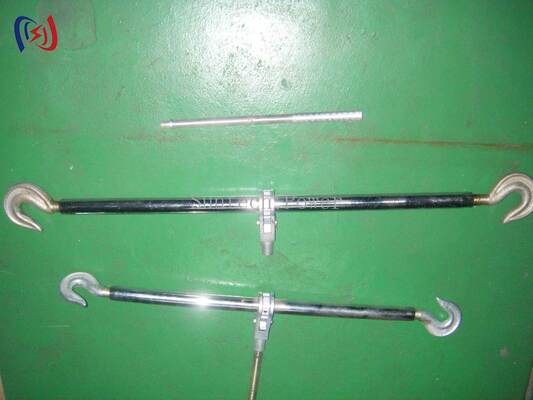

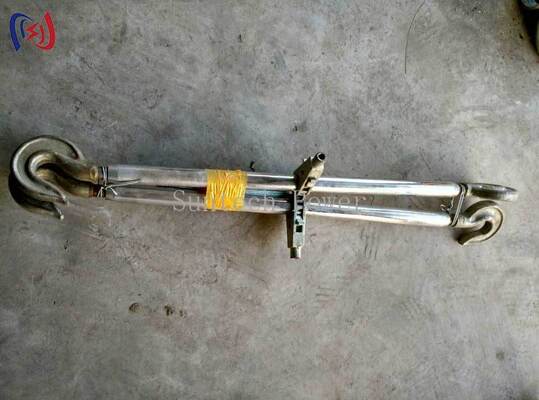

Dual Hook Steel Turnbuckle for Power Line Tensioning and Guy Wire Adjustment
The dual hook steel turnbuckle is a tensioning device for overhead line and guy wire work. Its forged steel body and hook end fittings turn to take up or release tension on a conductor, guy or temporary stay. Seven models cover rated loads from 5KN to 100KN, with maximum centre distances from 800mm to 1740mm, so a crew can pick a size that matches the pulling load and the span it has to reach.
Design and Operation
  • Dual hook ends: positive locking hooks reduce the risk of accidental disengagement.
  • Forged steel body with rolled threads: built for repeated tensioning under load.
  • Hot-dip galvanized finish: corrosion protection for outdoor transmission work.
  • Marked load ratings: the rated load is stamped for quick identification on site.
  • Tool-free adjustment: turn the body by hand to shorten or lengthen the assembly.
  • Fail-safe locking: the hook locks so the fitting cannot slip under tension.
Technical Specifications
Item No.ModelRated Load (KN)Max Centre Distance (mm)Adjustable Distance (mm)Weight (kg)
14111SJS-0.558003002.5
14112SJS-1108602503.5
14113SJS-22010503404
14114SJS-33013504706
14115SJS-55014405108
14116SJS-88016705608.5
14117SJS-10100174060010
Quality Control and Testing
Bodies are forged and threaded, then hot-dip galvanized and checked for thread fit and hook operation before packing. Each batch is inspected against its stated rated load and marked before shipment. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Transmission line conductor tensioning
  • Guy wire installation and adjustment
  • Temporary cable securing and stays
  • Emergency repair work
  • Substation rigging
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom sizes, finishes and branding
  • Model selection support (SJS-0.5 to SJS-10) based on load and reach
  • Matching rigging hardware available
  • 12-month limited warranty
Tell us your pulling load, required reach and end fitting type, and our engineers will confirm the right SJS model and a factory-direct quotation within one working day.
