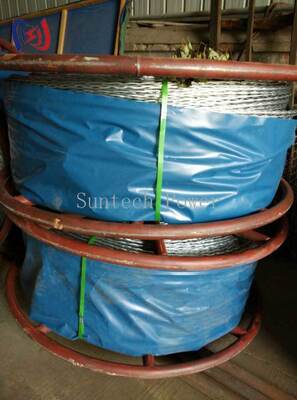

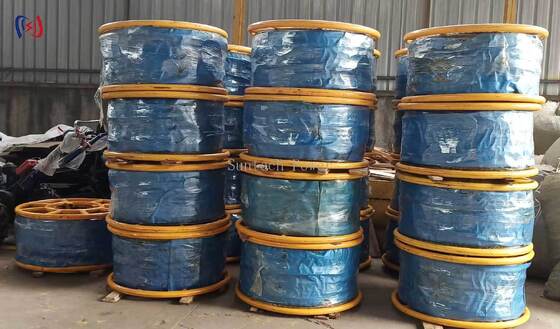

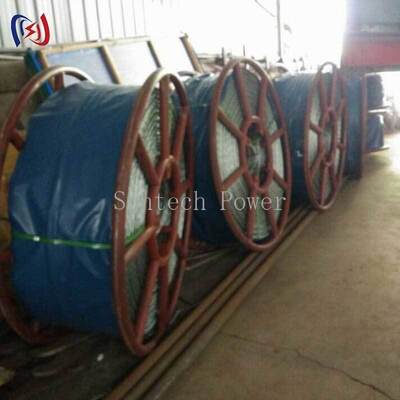

12 Strand Anti Twist Wire Rope with 9-42mm Diameter and 54-817KN Breaking Force for Stable Lifting

1 Piece
MOQ
Negotiable
Price
12 Strand Anti Twist Wire Rope with 9-42mm Diameter and 54-817KN Breaking Force for Stable Lifting
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Anti Twisting Braided Steel Rope
Structure: 12 Strand / 18 Strand
Diameter: 9-42mm
Breaking Force: 54-817KN
Weight: 0.3-4.22kg/m
Material: High-carbon Steel Wire
Construction: Braided, Torque-balanced
Warranty: 1 Year
Highlight:

12 Strand Anti Twist Wire Rope

,

9-42mm Diameter Non-Rotating Wire Rope

,

54-817KN Breaking Force Braided Steel Rope
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: 12 Strand / 18 Strand
Payment & Shipping Terms
Packaging Details: Plywood case with steel-banded reinforcement for export
Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders
Payment Terms: L/C,T/T
Supply Ability: 30000 Pieces per Month
Product Description
Anti Twist Wire Rope for Stable Lifting of Long and Asymmetrical Loads
Anti twist wire rope is made for lifts where a standard wire rope would spin. Its braided, torque-balanced construction keeps a suspended load from rotating, so long or asymmetrical items such as transmission tower sections, steel beams and conductor reels stay under control. This range covers diameters from 9mm to 42mm in 12-strand and 18-strand construction, with minimum breaking forces from 54KN to 817KN.
Why Torque-Balanced Rope Matters
  • Stops load spin: the braided strands counter the rotation that builds up in ordinary wire rope.
  • Holds load orientation: helps place heavy components accurately without fighting the load.
  • Suits long and asymmetrical lifts: transmission tower sections, steel beams and conductor reels.
  • Reduces hardware wear: less twisting fatigue on sheaves, blocks and hooks.
  • Works in multi-sheave systems: predictable behaviour without managing built-up torque.
  • Good flexibility: easier to handle on site than stiff rotation-resistant ropes.
Technical Specifications
Item No.StructureDiameter (mm)Min. Breaking Force (KN)Weight (kg/m)
1811712 Strand9540.3
1811812 Strand11810.45
1811912 Strand131150.58
1812012 Strand151570.82
1812112 Strand182051.03
1812212 Strand202601.33
1812312 Strand233201.63
1812412 Strand253872.03
1812512 Strand274612.37
1812612 Strand285202.6
1812712 Strand305603.12
1814018 Strand211730.87
1814118 Strand242361.24
1815118 Strand273091.55
1815218 Strand303891.99
1815318 Strand334812.45
1815418 Strand365813.05
1815518 Strand396923.56
1815618 Strand428174.22
Material and Construction
  • High-carbon steel wire for strength and fatigue resistance
  • Braided, torque-balanced 12-strand and 18-strand construction
  • Protective coating options for outdoor and marine exposure
Quality Control and Testing
Rope is braided from high-carbon steel wire and inspected strand by strand during production. Minimum breaking force is checked against the specification for each diameter before a batch is released, and products are made under ISO 9001 certified quality management with a test record supplied with every shipment.
Typical Applications
  • Overhead transmission line construction
  • Substation equipment and transformer lifting
  • Steel structure and tower section rigging
  • Multi-sheave block and tackle systems
  • General heavy hoisting and pulling
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom diameters, lengths, coatings and terminations
  • Technical support for rope selection and load matching
  • Matching rigging hardware available
  • 12-month limited warranty
Tell us your maximum load, rope diameter and required length, and our engineers will recommend the right structure and confirm a factory-direct quotation within one working day.
