HZT Series Cable Reel Rotator Platform for 500-2500mm Drums with 1500kg Max Drum Weight

1 Set
MOQ
Get the latest price
Price
HZT Series Cable Reel Rotator Platform for 500-2500mm Drums with 1500kg Max Drum Weight
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cable Reel Rotator Platform
Model: HZT1250 / HZT1800 / HZT2500
Item No.: 21553 / 21552 / 21551
Applicable Drum Diameter: 500-2500mm
Max Drum Weight: 500-1500kg
Dimension: 470x172x105 To 900x230x130mm
Weight: 17-73.5kg
Warranty: 1 Year
Highlight:

HZT Series Cable Reel Rotator Platform

,

500-2500mm Conductor Drum Stand

,

1500kg Max Drum Weight Cable Drum Stand
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO 9001
Model Number: HZT1250
Payment & Shipping Terms
Packaging Details: Carton or pallet for export
Delivery Time: 7-12 days after deposit
Payment Terms: T/T,L/C,Western Union
Supply Ability: 1000 Sets per Month
Product Description
Cable Reel Rotator Platform for Smooth Drum Rotation and Cable Pay Out

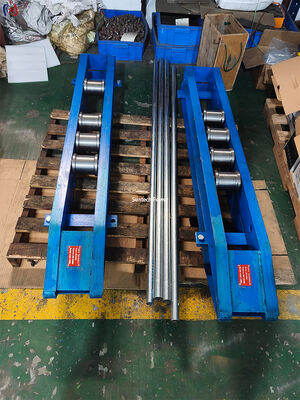

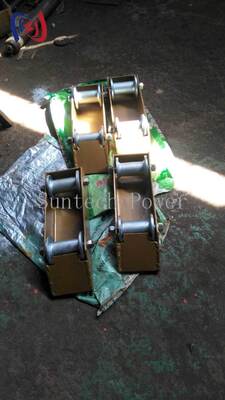

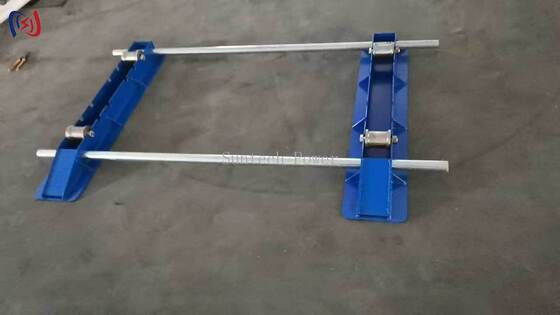

The Cable Reel Rotator Platform turns a cable drum on rollers so the cable pays out smoothly instead of being dragged off the side of the reel. It is used in power, communication and industrial cable-laying work where a drum has to be rotated at ground level. Three models cover drum diameters from 500mm to 2500mm and drum weights up to 1500kg, and each unit separates into a turntable, rollers, roller axles and locking fixtures for easy transport.
How It Works and Where It Helps
  • Roller turntable: the drum rests on rollers so it turns with minimal effort.
  • Adjustable roller base: set the roller spacing to the drum diameter and lock it on the slope.
  • Drum lock: release the locking roller to turn the drum, then lock it again to hold position.
  • Low working height: the drum stays at ground level, which suits tight trenches and manholes.
  • Modular parts: turntable, rollers, axles and lock fixtures separate for transport and storage.
  • Robust construction: a steel turntable and rollers stand up to repeated site use.
Using Method
  1. Mount the two roller bases according to the drum diameter.
  2. Lock the rollers on the slope.
  3. Adjust the roller base to match the drum diameter.
  4. Slope the drum rim up onto the turntable along its slants.
  5. Release the locking roller, and the drum can be turned.
Technical Specifications
Item No.ModelApplicable Drum Diameter (mm)Max Drum Weight (kg)Dimension (mm)Weight (kg)
21553HZT1250500-1250500470x172x10517
21552HZT1800500-18001500650x150x14540
21551HZT2500500-25001500900x230x13073.5
Quality Control and Testing
Turntables, rollers, axles and lock fixtures are cut and welded from steel, checked for fit and squareness, and finished against corrosion before packing. Roller rotation and the locking fixture are verified before shipment. Production runs under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Power transmission and distribution cable laying
  • Communication and fiber optic cable installation
  • Industrial plant cable pulling
  • Cable drum storage and re-reeling
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom sizes, colours and branding
  • Model selection support (HZT1250, HZT1800, HZT2500) based on drum diameter and weight
  • Spare rollers, axles and lock fixtures held in stock
  • 12-month limited warranty
Tell us your drum diameter and maximum drum weight, and our engineers will recommend the right HZT model and confirm a factory-direct quotation within one working day.
