Features

Specifications

Warranty: 1 Year

Name: Rope Reel And Stand

Model: SE-1 / SE-2 / SE-3 / SE-4 / SE-5 / SE-6

Item No.: 15111-15116 (reel) / 15101-15106 (stand)

Reel Stand Dimension: 480x220x340 To 1200x400x640mm

Reel Weight: 13-59kg

Stand Weight: 12-39kg

Frame Material: Galvanized Steel

Highlight:

Galvanized Steel Rope Reel Stand

Modular Assembly Conductor Drum Stand

Sealed Bearing Rotation Rope Reel and Stand

Basic Infomation

Place of Origin: China

Brand Name: Suntech

Certification: ISO 9001, CE

Model Number: SE

Payment & Shipping Terms

Packaging Details: Plywood case with steel-banded reinforcement for export

Delivery Time: 3-5 working days for stock, 15-25 days for bulk orders

Payment Terms: L/C,T/T

Supply Ability: 9000 Pieces per Month

Gallery

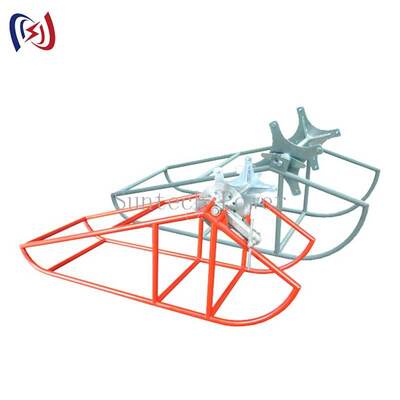

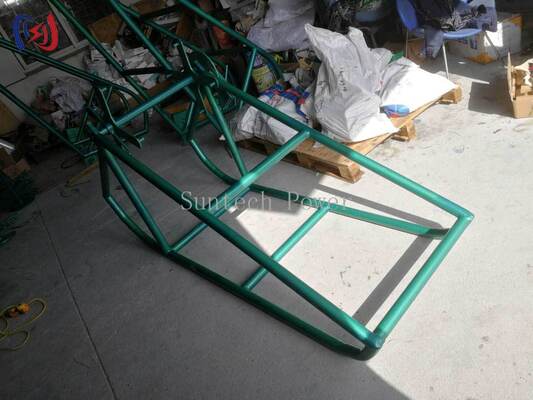

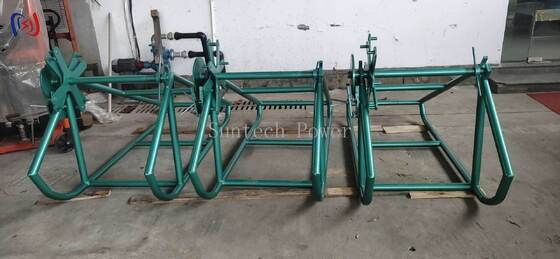

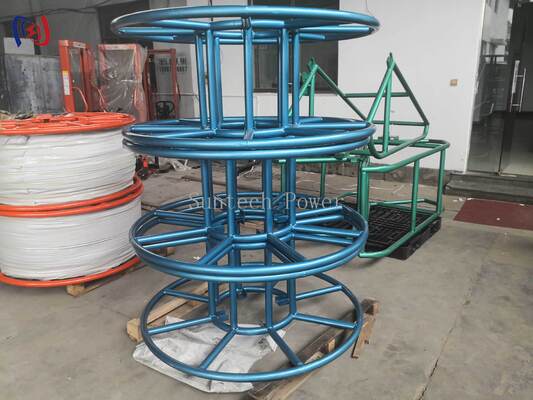

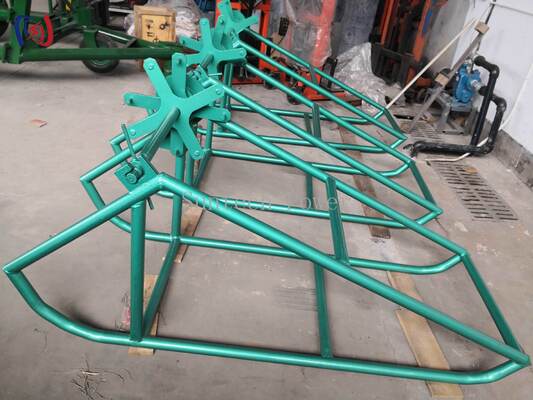

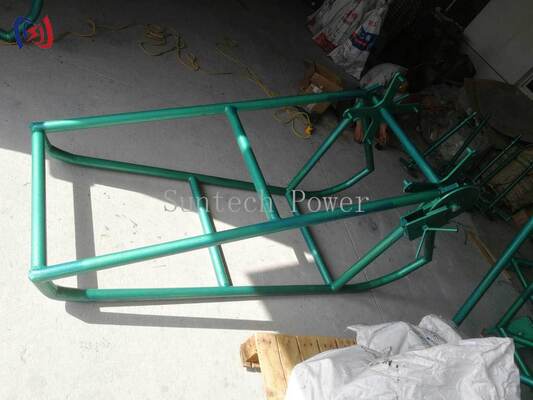

Heavy Duty Galvanized Steel Rope Reel Stand with Modular Assembly and Sealed Bearing Rotation for Industrial Rope Storage

Product Description

Rope Reel and Stand for Industrial Rope Storage and Controlled Deployment

The Rope Reel and Stand is a modular rope management system for workshops, yards and field stores. Each pair combines a welded steel stand with a matched driven reel so rope, wire rope and hybrid line feed out under control instead of being dragged across the floor. Six models cover reel sizes from 480mm to 1200mm, and because the base, column and reel mount separate, the unit can be moved, stored and reloaded without a crane.

Build and Operation

Matched reel and stand: supplied as a pair, so reel and stand dimensions are aligned for smooth rotation from the first use.
Heavy-duty steel frame: a welded base keeps the stand stable while the reel turns under load.
Sealed bearing rotation: the reel spins freely for even, low-effort payout and rewind.
Modular assembly: base, column and reel mount separate quickly for transport and compact storage.
Transport lock: drums are secured so the reel cannot spin loose while the unit is moved.
Multi-rope compatible: suits wire rope, nylon and polypropylene line.

Technical Specifications

Item No. (Reel)	Item No. (Stand)	Model	Reel Stand Dimension (mm)	Weight Reel (kg)	Weight Stand (kg)
15111	15101	SE-1	480x220x340	13	12
15112	15102	SE-2	720x400x640	30	16
15113	15103	SE-3	850x400x640	40	16
15114	15104	SE-4	950x400x640	50	20
15115	15105	SE-5	1100x400x640	55	30
15116	15106	SE-6	1200x400x640	59	39

Quality Control and Testing

Frames are welded from steel sections, checked for squareness on a jig, and finished against corrosion before packing. Bearing rotation and drum-lock operation are verified during assembly, and each reel-and-stand pair is inspected before shipment. Production runs under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.

Typical Applications

Dock line and mooring line management
Tower crane rigging and construction rope
Mining hoisting and ventilation ropes
Power line and telecom rope or cable pulling
Workshop and yard rope storage

Factory Support and Buyer Assurance

Manufacturer-direct pricing with no trading-layer mark-up
OEM and ODM available with custom reel sizes, colours and branding
Model selection support (SE-1 to SE-6) based on rope type and reel size
Spare bearings, brake parts and locking pins held in stock
12-month limited warranty

Tell us your rope type, diameter and required reel size, and our engineers will recommend the right SE model and confirm a factory-direct quotation within one working day.
