Features

Specifications

Name: Hydraulic Type Cable Reel Stand

Model: SI-5 / SI-10 / SI-10A / SI-16 / SI-20 / SI-30

Rated Load: 50-300KN

Applicable Cable Reel Diameter: 2400-5000mm

Applicable Cable Reel Width: 1600-3100mm

Core Hole Diameter: 76-200mm

Weight: 172-600kg

Frame Material: High-tensile Steel

Application: Power Transmission And Distribution Cable Stringing

Highlight:

50-300KN Rated Load Hydraulic Cable Reel Stand

2400-5000mm Diameter Conductor Drum Stand

High-Tensile Steel Frame Cable Drum Stand

Basic Infomation

Place of Origin: Ningbo, China

Brand Name: Suntech

Certification: ISO 9001

Model Number: SI

Payment & Shipping Terms

Packaging Details: Plywood case with steel-banded reinforcement for export

Delivery Time: 3-7 working days for stock, 15-25 days for bulk orders

Payment Terms: L/C,T/T

Supply Ability: 3000 Pieces per Month

Gallery

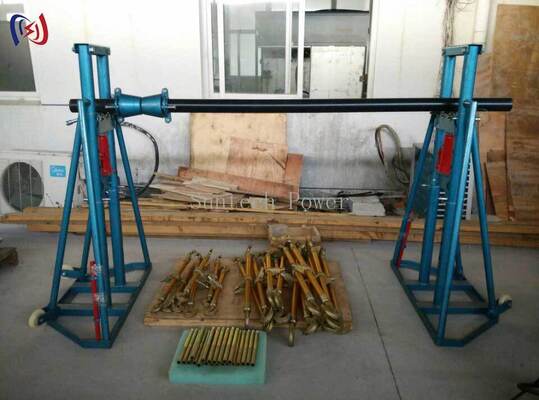

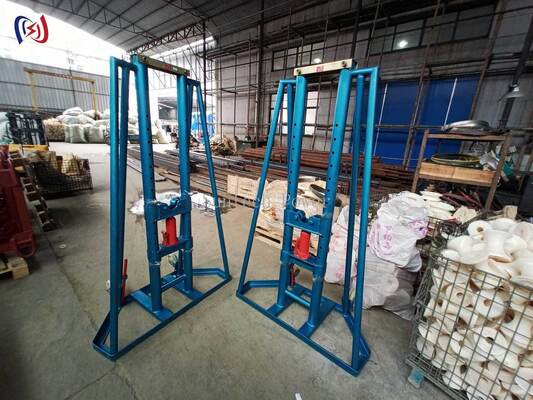

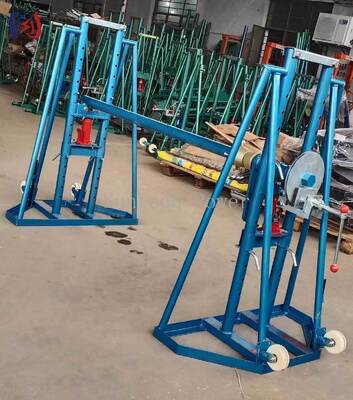

Hydraulic Cable Reel Stand with 50-300KN Rated Load for 2400-5000mm Diameter Drums and High-Tensile Steel Frame

Product Description

Hydraulic Type Cable Reel Stand for Safe and Efficient Handling of Heavy Power Cable Drums

The Hydraulic Type Cable Reel Stand is a purpose-built material-handling solution that raises heavy cable and conductor drums from ground level to a secure working height using a manual hydraulic pump. Mounted on a reinforced high-tensile steel chassis and offered in six load ratings from 50KN to 300KN, it lets a single operator position, lift and pay out drums up to 5000mm in diameter that would otherwise demand a crane and a full crew.

Engineered Around Real Cable-Stringing Work

Hydraulic lift system: a robust hand pump and cylinder raise the drum off the ground with minimal effort, removing the manual lifting and rolling that causes most back and crush injuries on site.
Adjustable arms accommodate drum core holes from 76mm to 200mm and lock the drum securely throughout payout.
Integrated braking applies precise back-tension so cable feeds evenly without slack, kinks or overrun.
Heavy-duty pneumatic wheels let one person move a loaded stand across uneven surfaces and align it with the pull direction.
Reinforced frame: welding is doubled at every stress point and the wide, low cradle keeps the unit stable under full rated load.

Technical Specifications

Item No.	Model	Rated Load (KN)	Reel Diameter (mm)	Reel Width (mm)	Core Hole (mm)	Weight (kg)
21346	SI-5	50	Max. 2400	Max. 1600	76-103	172
21347	SI-10	100	Max. 2700	Max. 1700	120-135	230
21348	SI-10A	100	Max. 3400	Max. 1900	120-135	230
21349	SI-16	160	Max. 4000	Max. 2500	125-200	325
21343	SI-20	200	Max. 4000	Max. 2500	135-160	450
21344	SI-30	300	Max. 5000	Max. 3100	160-200	600

Quality Control and Testing

Frame welding follows a documented procedure, and every chassis is checked for squareness on a jig before painting. Hydraulic cylinders and pumps are pressure-tested, and each finished unit is function-tested through a complete lift cycle before packing. Manufacturing runs under ISO 9001 certified quality management, and a factory inspection record is supplied with each shipment.

Typical Applications

Overhead transmission and distribution line stringing
Substation and switchyard cable installation
Underground and duct cable pulling projects
Railway catenary and telecom backbone works
Industrial plant and wind-farm power cabling

Factory Support and Buyer Assurance

Manufacturer-direct pricing with no trading-layer mark-up
OEM and ODM available with custom load ratings, colours and branding
Technical drawings and load calculations supplied before order
Spare hydraulic pumps, arms and wheels held in stock
12-month limited warranty on hydraulic components

Tell us your drum diameter, width, core hole and required load rating, and our engineers will recommend the right model and confirm a factory-direct quotation within one working day.
