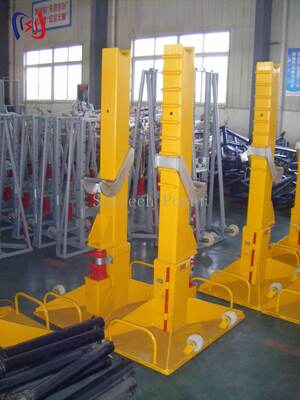

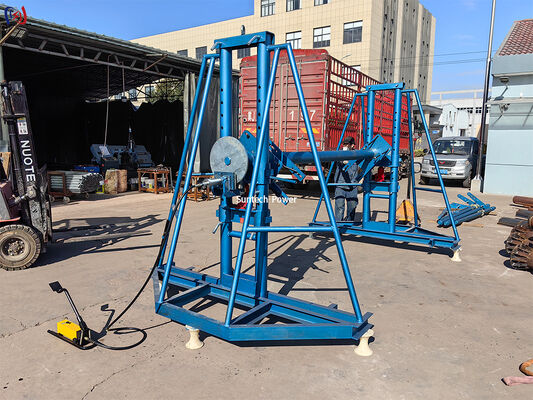

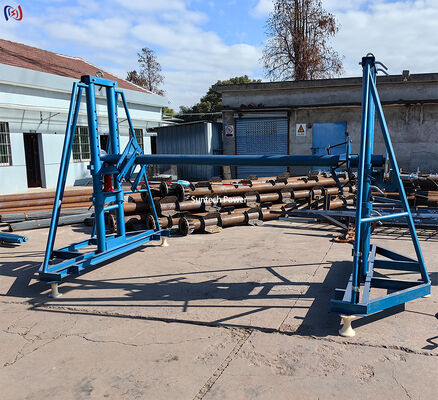

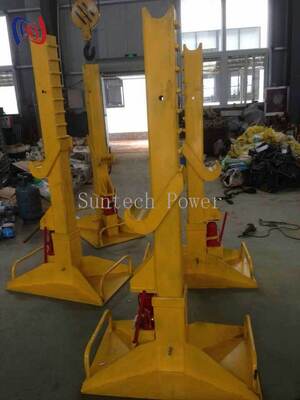

SI-30 Hydraulic Conductor Drum Stand — 300KN Heavy Duty Cable Reel Handling Equipment
The SI-30 Hydraulic Conductor Drum Stand is a heavy-duty material handling solution engineered to lift, position and pay out large power cable, conductor and wire reels with a single operator. A hydraulic pump raises the drum cradle from ground level to working height, replacing manual rolling and jacking that cause back injury and jacket damage. Built around a high-tensile welded steel frame, the SI-30 is rated for a 300KN load and accepts conductor reels up to 5000mm in diameter and 3100mm in width.
Technical Specifications
| Item |
Parameter |
Value |
| 1 |
Model |
SI-30 |
| 2 |
Rated Load |
300 KN |
| 3 |
Applicable Reel Diameter |
≤ Φ5000 mm |
| 4 |
Applicable Reel Width |
≤ 3100 mm |
| 5 |
Core Hole Diameter |
Φ160–200 mm |
| 6 |
Self Weight |
600 kg |
| 7 |
Lifting System |
Manual hydraulic pump |
| 8 |
Frame Material |
High-tensile welded steel |
| 9 |
Braking |
Integrated back-tension brake |
| 10 |
Mobility |
Heavy-duty wheels, mobile trolley |
Model Range & Selection Guide
| Model |
Rated Load (KN) |
Reel Diameter (mm) |
Reel Width (mm) |
Hole Φ (mm) |
Weight (kg) |
| SI-5 |
50 |
≤ Φ2400 |
≤1600 |
76–103 |
172 |
| SI-10 |
100 |
≤ Φ2700 |
≤1700 |
120–135 |
230 |
| SI-10A |
100 |
≤ Φ3400 |
≤1900 |
120–135 |
230 |
| SI-16 |
160 |
≤ Φ4000 |
≤2500 |
125–200 |
325 |
| SI-20 |
200 |
≤ Φ4000 |
≤2500 |
135–160 |
450 |
| SI-30 |
300 |
≤ Φ5000 |
≤3100 |
160–200 |
600 |
Key Features and Benefits
Powered Hydraulic Lifting
The manual hydraulic pump lifts reel weights up to 300KN, enabling one operator to load and position drums that would otherwise require a crane or a full crew, removing the leading cause of lifting injuries in cable work.
Controlled Cable Payout
An integrated back-tension brake regulates payout speed and tension, preventing cable spillage, kinks and slack loops while protecting the conductor and insulation during installation.
Wide Reel Compatibility
Adjustable cradle arms and a wide base accept reel diameters from 2400mm to 5000mm and core holes from 76mm to 200mm, letting one stand serve distribution wire through to heavy transmission conductor.
Mobile and Stable Design
Heavy-duty wheels allow the stand to be rolled between delivery trucks and the work face, while the rigid welded frame locks into a level, stable payout platform on site.
Manufacturing & Quality Assurance
Each SI-30 is produced by an ISO 9001 certified manufacturer with more than 15 years of experience in transmission line stringing and cable handling equipment. Frames are fabricated from high-tensile steel with reinforced welding at all stress points, then load-tested to 1.25 times the rated capacity before shipment. Every unit is supplied with a traceable serial number and inspection record so that procurement and site engineers can verify conformity with the declared 300KN rating.
Typical Applications
Designed for electrical contractors, utility crews and telecommunication installers, the SI-30 supports overhead line stringing, underground cable laying, substation work and heavy industrial cable pulling where large conductor drums must be handled safely and efficiently.
The SI-30 Hydraulic Conductor Drum Stand combines a 300KN load rating, 5000mm reel capacity and single-operator hydraulic lifting in a durable welded steel build. By mechanising the heaviest and most hazardous task in cable handling, it protects personnel, safeguards valuable conductor assets and keeps installation crews productive. Contact our engineering team for model selection, duty-cycle guidance and OEM options.
