Acsr drake conductor compact conductor types of electric conductors
This ACSR zebra bare conductor is widely used in the overhead power disturbution system all around the world , and it is one of the main products for forming electronic electrified wire network.

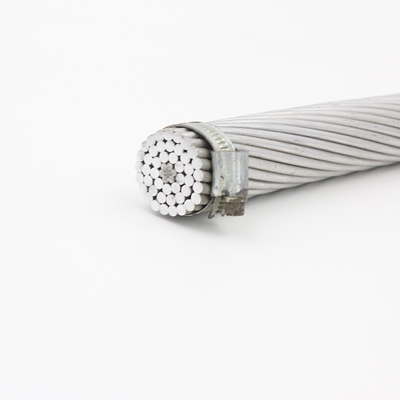

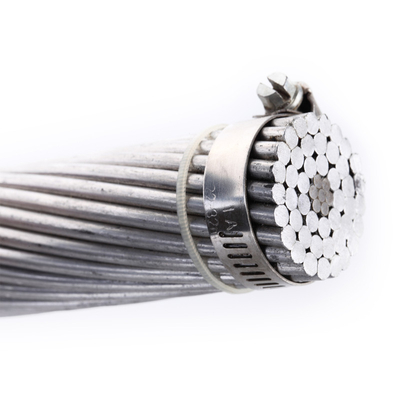

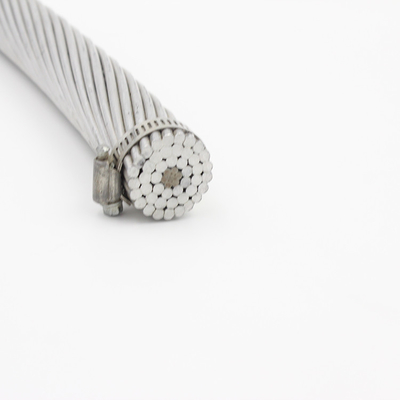

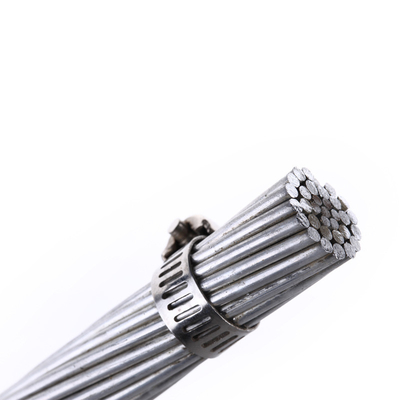

as the picture shows , there are so many types, different size , except AAC , We also can do AAAC / ACSR type .
The specification about ACSR Zebra bare conductor
| Code name | Stranding and wire diameter | Weight | Breaking load | DC Resistance at 20℃ | |
| No | mm | Kg/km | KN | Ohm/km | |
| Box | 7 | 1.85 | 51.5 | 8.44 | 1.748 |
| Acacia | 7 | 2.08 | 65.1 | 9.94 | 1.3828 |
| Almond | 7 | 2.34 | 82.3 | 13.4 | 1.0926 |
| Cedar | 7 | 2.54 | 97.0 | 16.8 | 0.9273 |
| Deodar | 7 | 2.77 | 115.4 | 33.3 | 0.7797 |
| Fir | 7 | 2.95 | 130.9 | 50.65 | 0.6875 |
| Hazel | 7 | 3.3 | 163.8 | 59.1 | 0.5494 |
| Pine | 7 | 3.61 | 196.0 | 101.5 | 0.4591 |
| Holly | 7 | 3.91 | 229.9 | 21.14 | 0.3913 |
| Willow | 7 | 4.04 | 245.4 | 8.44 | 0.3665 |
| Oak | 7 | 4.65 | 325.1 | 8.44 | 0.2767 |
| Mulbery | 19 | 3.18 | 414.7 | 8.44 | 0.2192 |
| Ash | 19 | 3.48 | 496.7 | 8.44 | 0.183 |
| Elm | 19 | 3.76 | 579.8 | 8.44 | 0.1568 |
| Poplar | 37 | 2.87 | 659.2 | 8.44 | 0.1387 |
| Sycamore | 37 | 3.23 | 835.0 | 8.44 | 0.1095 |
| Ups | 37 | 3.53 | 997.3 | 8.44 | 0.0917 |
| Yew | 37 | 4.06 | 1319.2 | 8.44 | 0.0693 |
| Totara | 37 | 4.14 | 1371.7 | 8.44 | 0.0666 |
| Rubus | 61 | 3.5 | 1616.3 | 8.44 | 0.0567 |
| Sorbus | 61 | 3.71 | 1816.1 | 8.44 | 0.0505 |
| Araucaria | 61 | 4.14 | 2261.4 | 8.44 | 0.0406 |
| Redwood | 61 | 4.56 | 2743.6 | 8.44 | 0.0334 |
