| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Steel Wire |
| Minimum Order Quantity: | 3000m |
|---|---|
| Price: | Get the newest price |

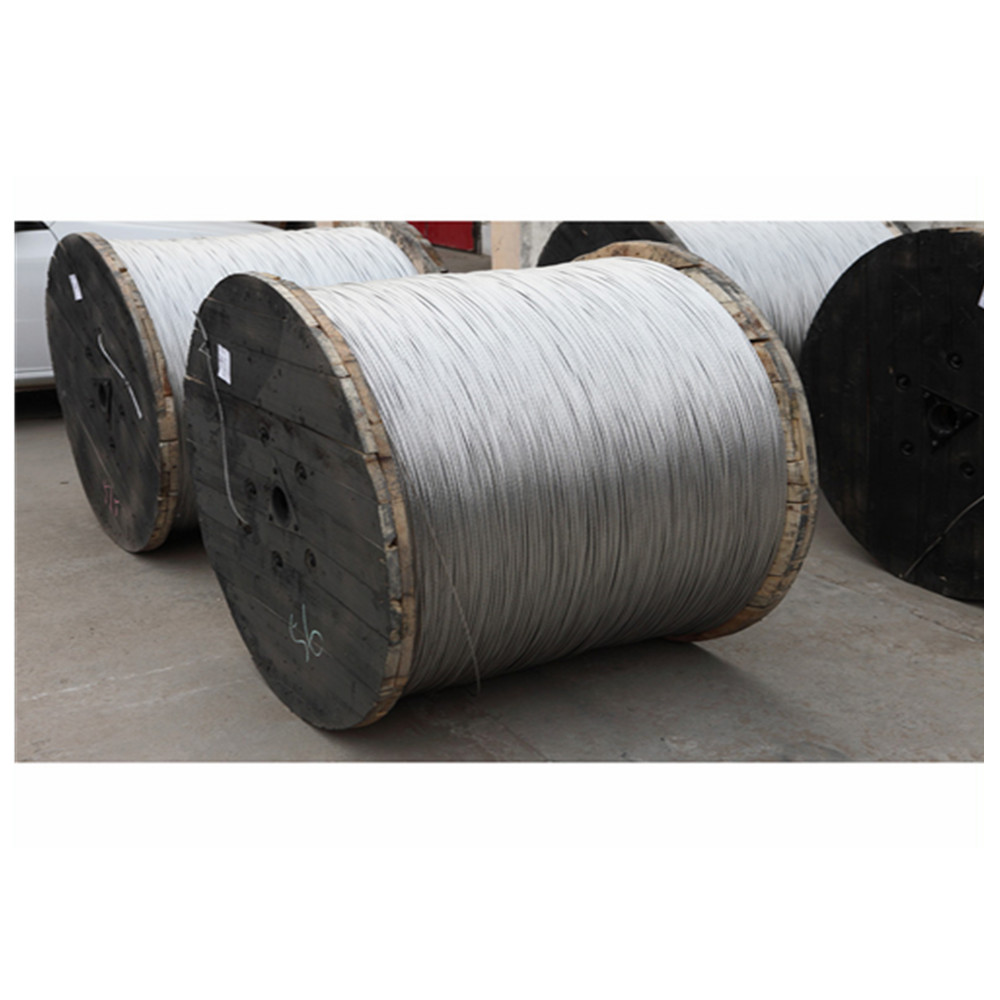

| Packaging Details: | Exported Wooden Case or Containers |
| Delivery Time: | 10-15 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000Ton/Month |
| Product Name: | Steel Galvanized Wire Price | Conductor Type: | Standard |
|---|---|---|---|
| Usage: | Overhead | Size: | 1.44mm-4.77mm |
| Grade: | Normal Tensile Strength | Standard: | ASTM,BS ,IEC |
| High Light: | Transmission Soft Annealed Wire,Communication Steel Galvanized Wire,Overhead Steel Galvanized Wire |
||

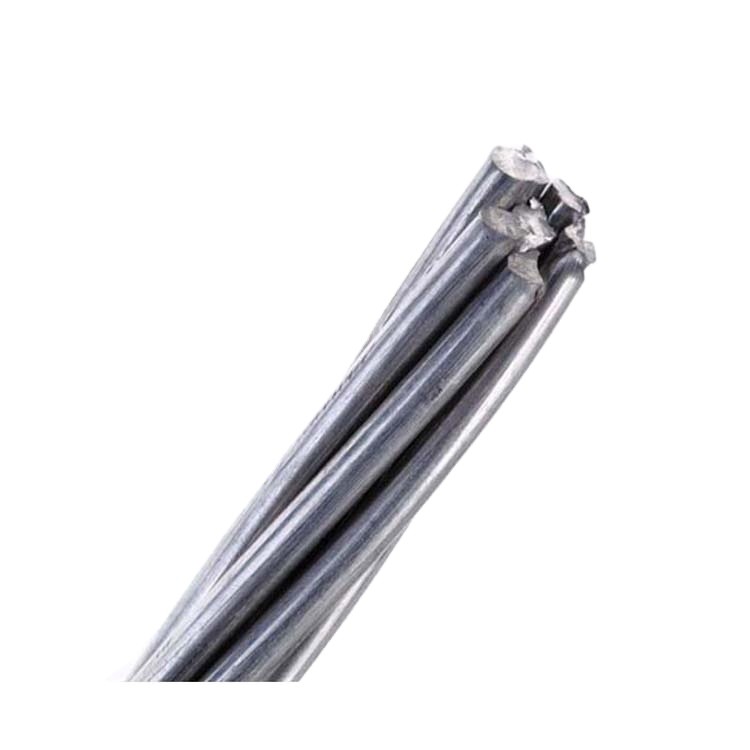

Transmission Cable Communication Cables New Products Steel Galvanized Wire Price
Soft annealed wire, is also written as soft annealed iron wire, annealed iron wire or oxygen-free annealed iron wire. It has good anti-corrosion and anti-oxidation in application. We use advanced equipment to produce high quality soft annealed iron wire for weaving wire mesh and wire cloth, and we also process annealed wire into binding wire or tie wire.
The specification about overhead bare conductor
Specification:
|
Nominal Dia of Strand (mm) |
Number |
Nominal Dia of Coated Wires Strand (mm) |
Approximate Weight of Strand (304.8m/kg) |
Minimum Breaking Strength of Strand (kN) |
||||
| Utilities Grade | Common Grade | Siemens Martin Grade | High Strength Grade | Extra High Strength Grade | ||||
| 3/16(4.76) | 7 | 1.57 | 33 | - | 5.115 | 8.452 | 12.677 | 17.748 |
| 7/32(5.56) | 3 | 2.64 | 40 | - | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32(5.56) | 7 | 1.83 | 44 | - | 6.850 | 11.387 | 17.126 | 24.020 |
| 1/4(6.35) | 7 | 2.03 | 55 | - | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32(7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16(7.94) | 7 | 2.64 | 93 | - | 14.234 | 23.798 | 35.586 | 49.820 |
| 3/8(9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 |
| 7/16 | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2(12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2(12.70) | 1 | 2.54 | 229 | - | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 | 1 | 2.87 | 289 | - | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8(15.88) | 1 | 3.18 | 361 | - | 48.930 | 80.513 | 124.995 | 178.819 |
| 3/4(19.05) | 1 | 3.81 | 524 | - | 71.172 | 116.643 | 181.487 | 259.331 |
