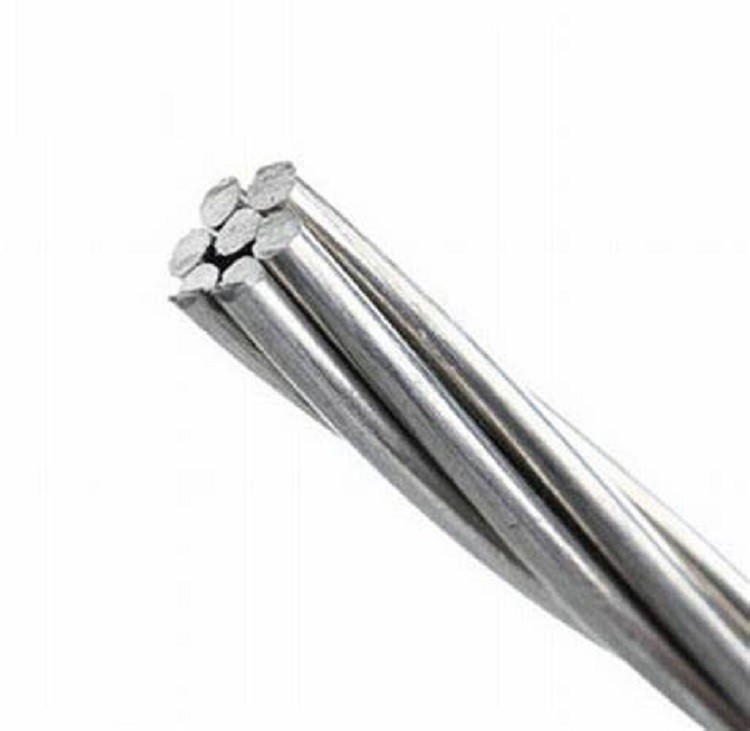

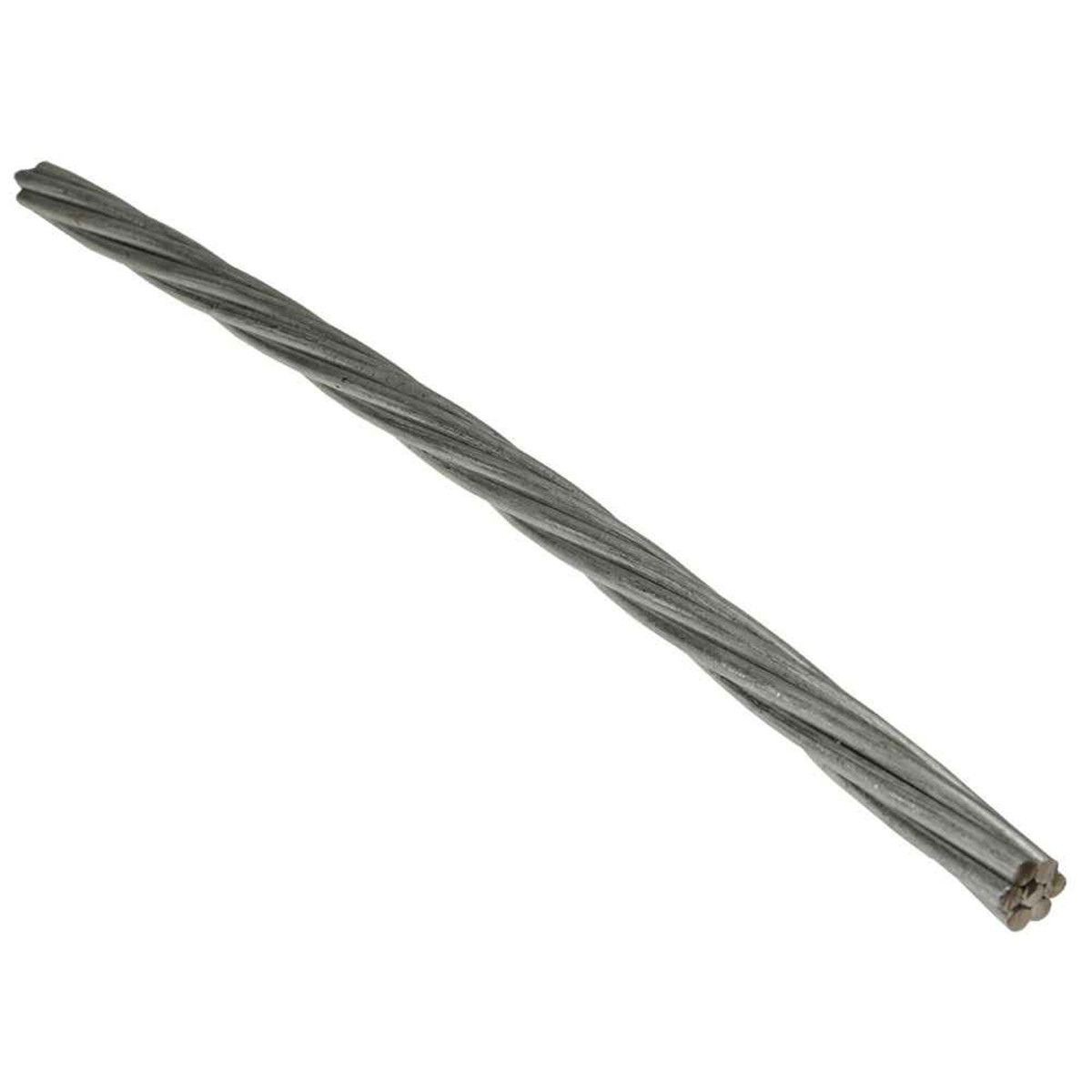

Overhead Bare Aluminum Conductor Electric Galvanized Steel Wire Strand

5000m
MOQ
Get the newest price
Price
Overhead Bare Aluminum Conductor Electric Galvanized Steel Wire Strand
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Galvanized Steel Wire Strand Price
Conductor Type: Standard
Application: Overhead
Conductor Material: Steel
Grade: Normal Tensile Strength
Standard: ASTM,BS ,IEC
Highlight:

Electric Galvanized Steel Wire Strand

,

Steel Galvanized Wire Strand

,

Overhead Steel Wire Strand
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001
Model Number: Galvanised Steel Wire
Payment & Shipping Terms
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 10-15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000Ton/Month
Product Description

Price List Electric Wires Wire Cable New Products Galvanized Steel Wire Strand



This bare conductor is widely used in the overhead power disturbution system all around the world, and it is one of the main products for forming electronic electrified wire network.



Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable for field-erected aerial cable.



Galvanized wire is created by coating carbon steel wire with zinc. This can be done through electro-plating or hot-dip galvanizing. Galvanized wire is used in applications where corrosion resistance is needed.



Galvanized wire is used in the automotive, construction, bedding, and poultry industries. King Steel has the ability to supply galvanized wire up to .375” diameter in various grades.



The specification about overhead bare conductor



Nominal Dia of Strand

(mm)

 Number

Nominal Dia of Coated Wires Strand

(mm)

Approximate Weight of Strand

(304.8m/kg)

Minimum Breaking Strength of Strand

(kN)
Utilities Grade Common Grade Siemens Martin Grade High Strength Grade Extra High Strength Grade
3/16(4.76) 7 1.57 33 - 5.115 8.452 12.677 17.748
7/32(5.56) 3 2.64 40 - 6.228 10.409 15.569 21.796
7/32(5.56) 7 1.83 44 - 6.850 11.387 17.126 24.020
1/4(6.35) 7 2.03 55 - 8.452 14.012 21.129 29.581
9/32(7.14) 7 2.36 74 20.462 11.432 18.905 28.469 39.812
5/16(7.94) 7 2.64 93 - 14.234 23.798 35.586 49.820
3/8(9.52) 7 3.05 124 51.155 18.905 30.915 48.040 68.503
7/16 7 3.68 181 80.068 25.355 41.591 64.499 92.523
1/2(12.70) 7 4.19 234 111.206 32.917 53.823 83.627 119.657
1/2(12.70) 1 2.54 229 - 33.895 56.492 84.961 118.768
9/16 1 2.87 289 - 42.881 71.616 107.202 149.905
5/8(15.88) 1 3.18 361 - 48.930 80.513 124.995 178.819
3/4(19.05) 1 3.81 524 - 71.172 116.643 181.487 259.331



Overhead Bare Aluminum Conductor Electric Galvanized Steel Wire Strand 0
