Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Galvanised Steel Wire |
| Minimum Order Quantity: | 5000m |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Wooden Case or Containers |
| Delivery Time: | 10-15 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000Ton/Month |
| Product Name: | 1x7 EHS Galvanized Strand 3/8" Guy Wire | Model: | Guy Wire |
|---|---|---|---|
| Application: | Overhead | Conductor Material: | Steel |
| Insulation Material: | Bare | Standard: | ASTM,BS ,IEC |
| High Light: | Galvanized Strand Guy Wire,Bare Galvanized Guy Wire,Overhead Guy Strand Wire |
||

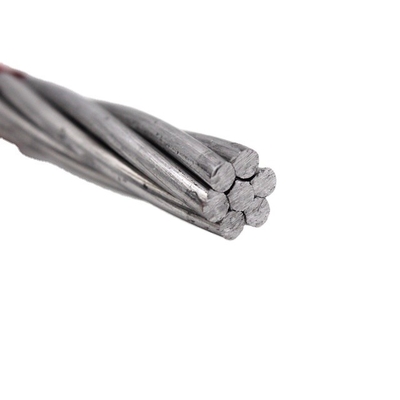

1x7 EHS Galvanized Strand 3/8" Guy Wire
Brief Introduction:
1.Full name: Galvanized Stee lWir/Stay Wire/Guy Wire
2.Size: Guy Wire 1/4,guy wire 3/8,guy wire 7/8,guy wire 7/14
3.SWG Size: 7/8 SWG Stay Wire:7/4.06mm
7/9 SWG Stay Wire:7/3.66mm
7/10 SWG Stay Wire:7/3.25mm
7/12SWG Stay Wire:7/2.64mm
4.Applications: Messenger wires, overhead ground ,static wire or guy wire.
5.Grade: Utilities,common,Siemens-Martin,High Strength and Extra high strength.
Class A,B,C and bezinal a superior corrosive coating of 5% Aluminum and 95%Zinc.
6.Attached technical parameter:
| Production Name | ASTM A475 Galvanized Steel Wire Strand 7/32 Inch (3/2.64mm) |
| Standard | ASTM |
| Brand | Suntech |
| Used | Stay Wire,G I wire,Guy Wire |
| Material of Conductor | Galvanized Steel Stranded Wire |
| Material of Insulation | Yes/no |
| Rated Voltage | Any Voltage |
| Size | 3/2.64 mm |
| Color | Metal color |
| Cergification | SGS,ISO,BV,TUV. |
| Approx.Strand Dia. | Inch 7/32 , mm 5.56 |
| Siemen Martin Grade | 10.409 kN |
| High Strength Grade | 15.569 kN |
| Extra-high Strength Grade | 21.796 kN |
| Approx.Weight | 131 kg/km |
Standard:
Common is the ASTM A475 Standard ,of course ,which has other standards to meet the client's various demands according to the different product size and types .We can all produce it ,pls put one hundred heart on us.
