Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech Power |
| Certification: | ISO9001 |
| Model Number: | Steel Wire |
| Minimum Order Quantity: | 3000m |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Wooden Case or Containers |
| Delivery Time: | 10-15 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000Ton/Month |
| Name: | Steel Wire | Tolerance: | ±5% |
|---|---|---|---|
| Type: | Galvanized | Alloy Or Not: | Non-Alloy |
| Processing Service:: | Welding | Special Use: | Cold Heading Steel |
| High Light: | Galvanized Steel Wire Strand,Welding Steel Wire Strand,Corrosion Resistance Galvanized Wire Strand |
||
Galvanized wire is created by coating carbon steel wire with zinc. This can be done through electro-plating or hot-dip galvanizing. Galvanized wire is used in applications where corrosion resistance is needed.
Galvanized wire is used in the automotive, construction, bedding, and poultry industries. King Steel has the ability to supply galvanized wire up to .375” diameter in various grades.

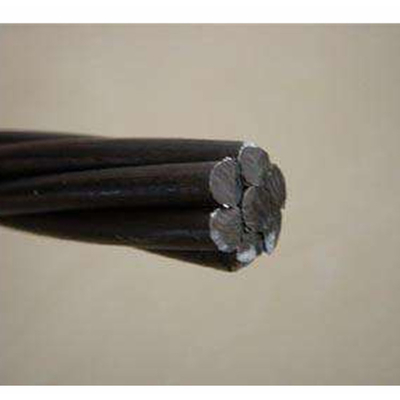

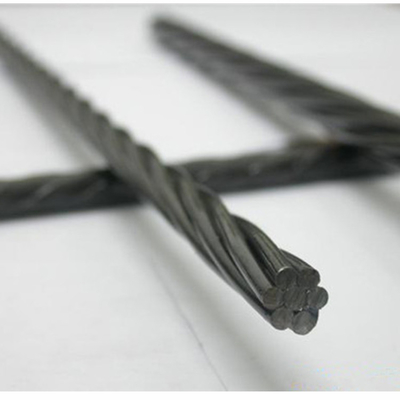

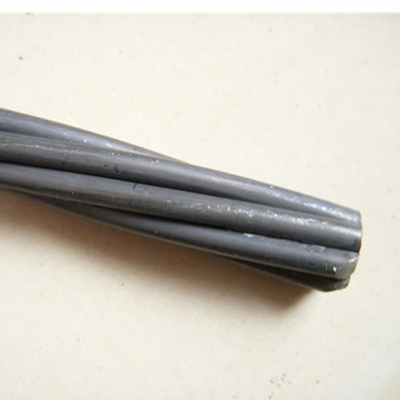

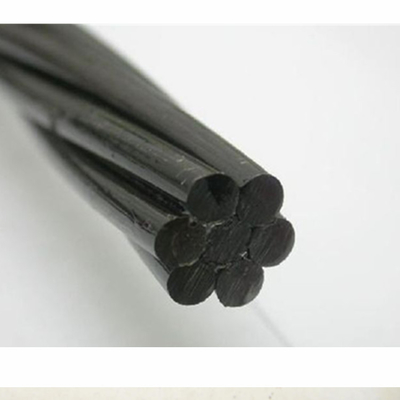

| Production Name | ASTM A475 Galvanized Steel Wire Strand 7/32 Inch (3/2.64mm) |
| Standard | ASTM |
| Brand | Suntech |
| Used | Stay Wire,G I wire,Guy Wire |
| Material of Conductor | Galvanized Steel Stranded Wire |
| Material of Insulation | Yes/no |
| Rated Voltage | Any Voltage |
| Size | 3/2.64 mm |
| Color | Metal color |
| Cergification | SGS,ISO,BV,TUV. |
| Approx.Strand Dia. | Inch 7/32 , mm 5.56 |
| Siemen Martin Grade | 10.409 kN |
| High Strength Grade | 15.569 kN |
| Extra-high Strength Grade | 21.796 kN |
| Approx.Weight | 131 kg/km |
