Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001,CCC |
| Model Number: | AAC |
| Minimum Order Quantity: | 3000m |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Wooden Case or Containers |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000Ton/Month |
| Name: | Bare AAC Electrical Overhead Application Cable | Type: | Bare |
|---|---|---|---|
| Usage: | Transmission Line | Insulation Material: | No |
| Core: | 7,19,37 Stranded | Conductor: | AAC/ACSR/AAAC |
| High Light: | Bare Overhead Electrical Cable,Overhead All Aluminum Conductor,AAC Wasp Conductor BS 215 |
||

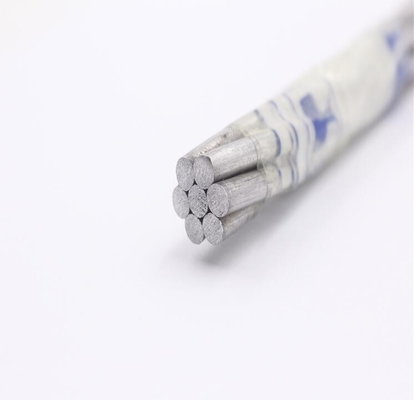

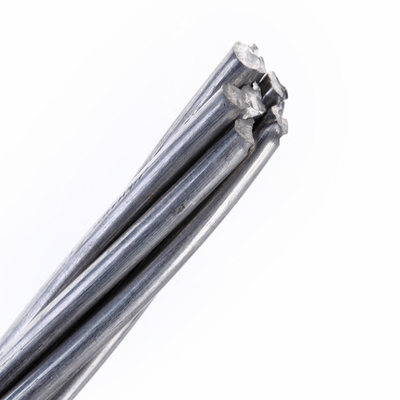

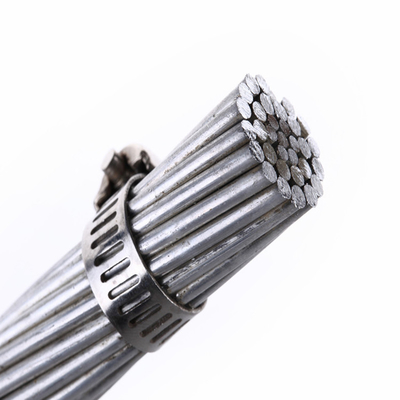

Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required
This product is widely used in the overhead power distribution system in our country and it is becoming more and more popular in the forming electrified wire network.
BS-215:1970 AAC
BS EN 50182:2001 AAC
ASTM B231-90 AAC
DIN 48201-5-81 AAC
IEC 61089(1991-06) AAC
BS 215:1970 AAC
| Code name | Nominal | Stranding | Wire Diameter | Overall Diameter | Total Area | Approximate Weight | Break Load | DC Resistance at 20℃ | Current Rating |
| mm2 | No. | mm | mm | mm2 | kg/km | kN | Ω,km | A | |
| Midge | 22 | 7 | 2.06 | 6.18 | 23.33 | 64 | 3.99 | 1.22700 | 114 |
| Ant | 50 | 7 | 3.1 | 9.30 | 52.83 | 145 | 8.28 | 0.54190 | 181 |
| Fly | 60 | 7 | 3.4 | 10.20 | 63.55 | 175 | 9.90 | 0.45050 | 199 |
| Wasp | 100 | 7 | 4.39 | 13.17 | 105.95 | 292 | 16.00 | 0.27020 | 271 |
| Hornet | 150 | 19 | 3.25 | 16.25 | 157.62 | 434 | 25.70 | 0.18250 | 346 |
| Chafer | 200 | 19 | 3.78 | 18.90 | 213.22 | 587 | 32.40 | 0.13490 | 414 |
| Cockroach | 250 | 19 | 4.22 | 21.10 | 265.75 | 731 | 40.40 | 0.10830 | 470 |
| Butterfly | 300 | 19 | 4.65 | 23.25 | 322.66 | 888 | 48.75 | 0.08916 | 528 |
| Centipede | 400 | 37 | 3.78 | 26.46 | 415.22 | 1143 | 63.10 | 0.06944 | 619 |
