Overhead Bare Aluminum Conductor Steel Reinforced Strands For ACSR Conductor

Overhead Bare Aluminum Conductor Steel Reinforced Strands For ACSR Conductor

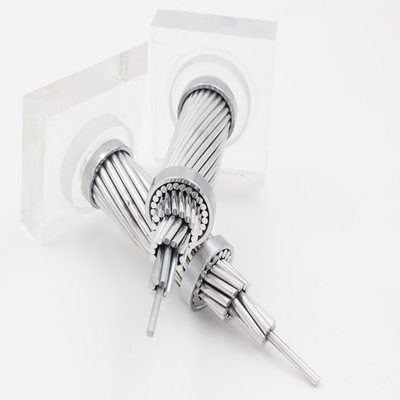

  • Overhead Bare Aluminum Conductor Steel Reinforced Strands For ACSR Conductor

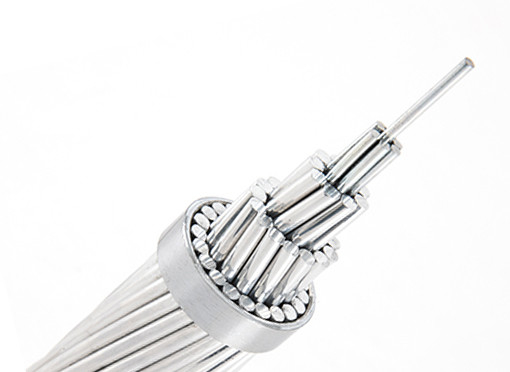

  • Overhead Bare Aluminum Conductor Steel Reinforced Strands For ACSR Conductor
Overhead Bare Aluminum Conductor Steel Reinforced Strands For ACSR Conductor
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Get the newest price
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 15-20 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000Ton/Month
Contact Now
Detailed Product Description
Name: Aluminum Conductor Steel Reinforced Type: Bare
Usage: Transmission Line Insulation Material: No
Rated Voltage: 220KV Conductor: AAC/ACSR/AAAC
High Light:

Bare Acsr Aluminium Conductor Steel Reinforced

,

Overhead Bare Aluminum Cable

,

Steel Reinforced All Aluminum Alloy Conductor

Bare Overhead Aluminum Conductor Steel Reinforced Strands For ACSR Conductor


Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.

The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application.

ACSR conductors are recognized for their record of economy, dependability and favourable strength / weight ratio. ACSR conductors combine the light weight and good conductivity of aluminium with the high tensile strength and ruggedness of steel. In line design, this can provide higher tensions, less sag, and longer span lengths than obtainable with most other types of overhead conductors.

Midal manufacture and supply ACSR on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.

ACSR Technical Characteristics Based on Standard BS 215

Code name Nominal aluminum area Stranding and wire diameter Sectional area of aluminum Total sectional area Approx. overall diameter Approx. mass Calculated D.C. resistance at 20oC Calculated breaking load
Al Steel
mm2 No./mm mm2 mm2 mm kg/km ohm/km kN
RABBIT 50 6/3.35 1/3.35 52.88 61.7 10.05 214 0.5426 18.35
DOG 100 6/4.72 7/1.57 105 118.5 14.15 394 0.2733 32.7
WOLF 150 30/2.59 7/2.59 158.1 194.9 18.13 726 0.1828 69.2
DINGO 150 18/3.35 1/3.35 158.7 167.5 16.75 506 0.1815 35.7
LYNX 175 30/2.79 7/2.79 183.4 226.2 19.53 842 0.1576 79.8
ZEBRA 400 54/3.18 7/3.18 428.9 484.5 28.62 1621 0.0674 131.9



ACSR Technical Characteristics Based on Standard ASTM B 232



Code name

Nominal

AWG/MCM

Stranding and wire diameter Sectional area of aluminium Total sectional area Approx. overall diameter Approx. mass Calculated D.C. resistance at 20oC Calculated breaking load
Al Steel
  No./mm mm2 mm2 mm kg/km Ω/km kN
Turkey 6 6/1.68 1/1.68 13.29 15.48 5.04 54 2.1586 5.24
Swan 4 6/2.12 1/2.12 21.16 24.71 6.36 85 1.3557 8.32
Sparrow 2 6/2.67 1/2.67 33.61 39.22 8.01 136 0.8535 12.7
Robin 1 6/3.0 1/3.0 42.39 49.49 9.0 171 0.6767 15.85
Raven 1/0 6/3.37 1/3.37 53.48 62.38 10.11 216 0.5364 19.32
Quail 2/0 6/3.78 1/3.78 67.42 78.65 11.34 273 0.4255 23.62
