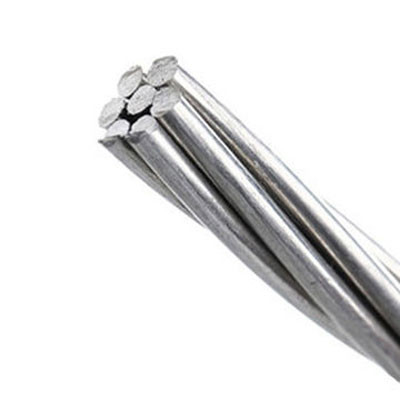

AAAC Bare Aluminum Conductor Resistance Corrosion 95mm2

2000m
MOQ
Negotiation
Price
AAAC Bare Aluminum Conductor Resistance Corrosion 95mm2
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Zebra Conductor 95mm2
Conductor Type: Solid
Application: Construction
Jacket: None
Standard: IEC 61089-1991 ASTM B 399-81 BS3242-1970 DIN 48201-6-1
Material List: Aluminum Alloy Conductor
Highlight:

AAAC Bare Aluminum Conductor

,

Resistance Corrosion Bare Aluminum Conductor

,

95mm2 AAAC Bare Conductor
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: ACSR
Payment & Shipping Terms
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 10-15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000Ton/Month
Product Description

AAAC Conductor Aluminum Alloy Bare Zebra Conductor 95mm2



What is AAAC Zebra Conductor ?


AAAC (All Aluminum Alloy Conductor) Zebra Conductor referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the latter, their use becomes particularly favorable when ice and win loadings are low.


AAAC Zebra Conductor Applications:


AAAC (All Aluminum Alloy Conductors ) Zebra Conductor made up of heat treated alloy of aluminum, magnesium and silicon. Our quality range is available as per Indian Standard and British Standard and customers' specification. These products are used for the transmission of electric power as high as appreciated for their high tensile strength, light weight and resistance to corrosion.


AAAC Zebra Conductor Specifications:


Area : 465 sq mm
Construction: 37 x 4.00
Weight Approx : 1280.5 kg Per km

AAAC-All Aluminum Alloy Conductors
INDIAN STANDARD (IS 398 PART 4)
CODE NAME AREA (mm2) SIZE WEIGHT Current Carrying Capacity at 45oC* (Amp)
Al/St/Dia. (Kg/Km)
(mm.)
Mole 15 3/2.50 40.15 65
Squirrel 22 7/2.00 60.16 105
Weasel 34 7/2.50 94 155
Rabbit 55 7/3.15 149.2 210
Raccoon 80 7/3.81 218.26 290
Dog 100 7/4.26 272.86 325
Dog-up 125 19/2.89 342.51 360
Coyote 148 19/3.15 406.91 400
Wolf 173 19/3.40 474.02 460
Wolf-up 200 19/3.66 549.4 480
Panther 232 19/3.94 636.63 520
Panther-up1 288 37/3.15 794.05 610
Panther-up2 346 37/3.45 952.56 720
Kundah 400 37/3.71 1101.63 740
Zebra 465 37/4.00 1280.5 800
Zebra-up 525 61/3.31 1448.39 875
Moose 570 61/3.45 1573.71 900
Morkulla 604 61/3.55 1666 920
Moose-up 642 61/3.66 1771.36 940
Morkulla-up 695 61/3.81 1919.13 960
Bersimis 767 61/4.00 2115.54 1000



AAAC Zebra Conductor Features


high strength to weight ratio
better sag characteristics
improved electrical properties
excellent resistance to corrosion

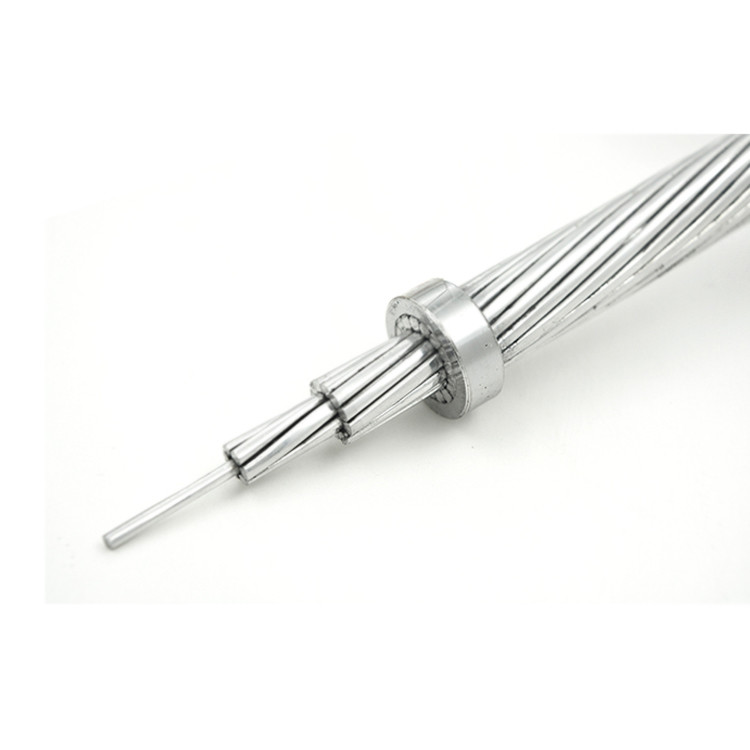

AAAC Zebra Conductor Construction:


Conductors: 6201-T81 aluminum alloy conductors. 6201-T81 aluminum alloy is a high strength aluminum alloy for added durability and reduced sag when stranded overhead. 6201-T81 aluminum alloy is also more resistant to abrasion than 1350-H19 aluminum.
Stranding: Helically stranded.
Ampacity: Medium to high voltages.

AAAC Bare Aluminum Conductor Resistance Corrosion 95mm2 0
Tag:

Bare Aluminum Conductor Cable

Overhead Bare Aluminum Conductor

All Aluminum Alloy Conductor
