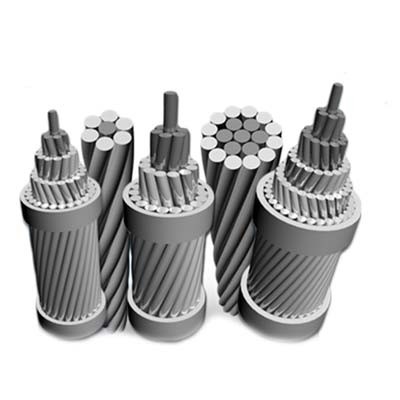

ACSR Aluminum Conductor Steel Reinforced Transmission Line

ACSR Aluminum Conductor Steel Reinforced Transmission Line

  • ACSR Aluminum Conductor Steel Reinforced Transmission Line
  • ACSR Aluminum Conductor Steel Reinforced Transmission Line
ACSR Aluminum Conductor Steel Reinforced Transmission Line
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: 10000m
Price: Negotiation
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 10-15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000Ton/Month
Contact Now
Detailed Product Description
Name: ACSR Mole Squirrel Conductor Type: Bare
Usage: Transmission Line Insulation Material: No
Standard: State Grid,Power Station Material List: Aluminum
High Light:

ACSR Aluminum Conductor Steel Reinforced

,

Transmission Line Horse Conductor

,

Aluminum ACSR Squirrel Conductor

Aluminum Conductor Steel Reinforced ACSR Mole Squirrel Gopher Weasel Fox Ferret Rabbit Mink Skunk Beaver Horse Conductor



What is ACSR Squirrel Conductor ?

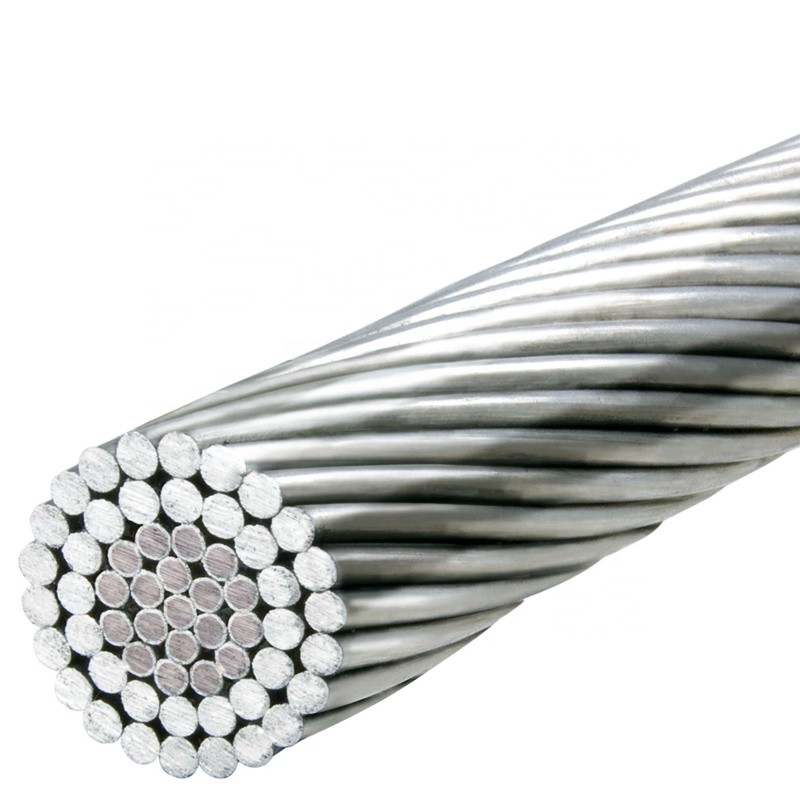

ACSR Squirrel Conductor consists of a solid or stranded steel core and stranded aluminum. The number and diameter of aluminum wire is 6/2.11mm, and the stranding steel is 1/2.11mm. The steel as the inner core has the high strength and ruggedness. External aluminum is light but have good conductivity. So the structure of this conductor is very simple, which ensures little installation time and offers convenient for our life.
The offered range of ACSR Squirrel Conductors manufactured and supplied by us in the market, is widely acclaimed for its efficiency, performance, functional life and conductivity. Manufactured in accordance with the set industry norms and guidelines, utilizing the finest raw materials and modern machines, its standard of quality is highly maintained.


What is the specification of acsr squirrel conductor ?


Code name acsr squirrel conductor
Nominal aluminum area mm 2 20
Stranding structure Al. No. 6
Al. Dia. 2.11
St. No. 1
St. Dia 2.11
Sectional area of aluminum mm 2 20.94
Total sectional area mm 2 24.43
Overall diameter mm 6.33
Total kg/km 85
Calculated breaking load daN 788
Calculate D.C resistance at 20 ℃ Ω/km 1.368
Current Rating A 109


What is the characteristic of acsr squirrel conductor ?


We have learn about the specification and structure of acsr squirrel conductor. Can you guess its characteristics compared with other conductor?High robustness and strength. The acsr squirrel conductor has a mixed construction,which consists of Hard-Drawn 1350-H19 aluminum wires surrounded the Zine coat steel strands. Steel as the inner core , is higher strength than aluminium, which allows for increased mechanical tension to be applied on the conductor. That ensures high robustness and strength of our products and increase the safety performance of equipment operation.


ACSR Aluminum Conductor Steel Reinforced Transmission Line 0
