Home /Products/Bare Aluminum Conductor/Steel Reinforced Bare Aluminum Conductor ACSR Mink Conductor

Steel Reinforced Bare Aluminum Conductor ACSR Mink Conductor

3000m
MOQ
Negotiation
Price
Steel Reinforced Bare Aluminum Conductor ACSR Mink Conductor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: ACSR Mink Conductor
Type: Bare
Usage: Transmission Line
Insulation Material: No
Standard: State Grid,Power Station
Material List: Aluminum
Highlight:

ACSR Mink Conductor Steel Reinforced

,

Aluminum ACSR Mink Conductor

,

Bare Aluminum Alloy Conductor
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: ACSR
Payment & Shipping Terms
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 10-15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000Ton/Month
Product Description

Aluminum Conductor Steel Reinforced ACSR Mink Conductor



What is acsr mink conductor?

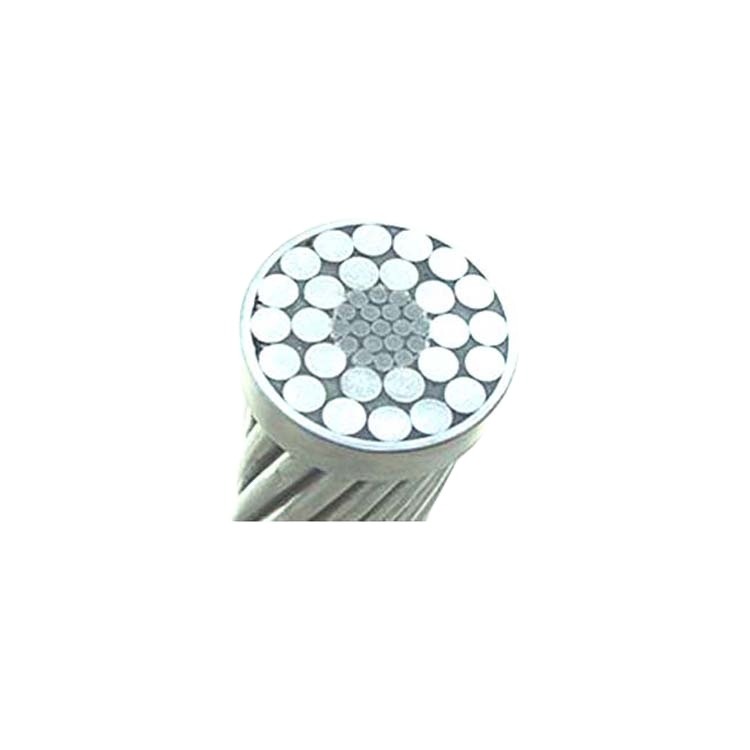

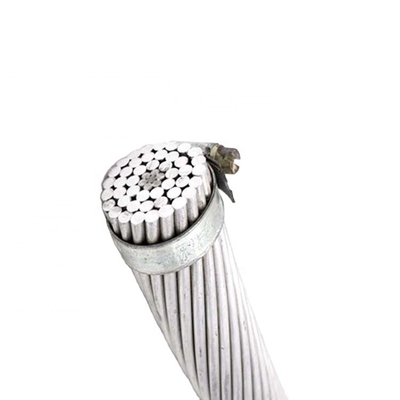

Form the name, we can know the acsr mink conductor is aluminum conductor steel reinforced. acsr mink conductor belongs to BS-215 standard, which is British standard. “Mink” is a code name of acsr conductor. ACSR mink conductor is a special type of stranded cable that consists of steel core surrendered by aluminum. So we can see its structure is very simple.The specification of mink conductor is 6/3.66mm aluminum and 1/3.66mm steel. And the high tensile strength and hardness of steel core ensure the weather-resistance property and the long span.


What is the specification of acsr mink conductor?



Code name acsr mink conductor
Nominal aluminum area mm 2 60
Stranding structure Al. No. 6
Al. Dia. 3.66
St. No. 1
St. Dia 3.66
Sectional area of aluminum mm 2 63.18
Total sectional area mm 2 73.71
Overall diameter mm 10.98
  kg/km 255
Calculated breaking load daN 2180
Calculate D.C resistance at 20 ℃ Ω/km 0.4545
Current Rating A 174



What is the application of acsr mink conductor?


Aerial power transmission lines
Ground wire overheads
Extra long span installations
River Crossings

Steel Reinforced Bare Aluminum Conductor ACSR Mink Conductor 0
Tag:

Bare Aluminum Conductor Cable

Overhead Bare Aluminum Conductor

All Aluminum Alloy Conductor
