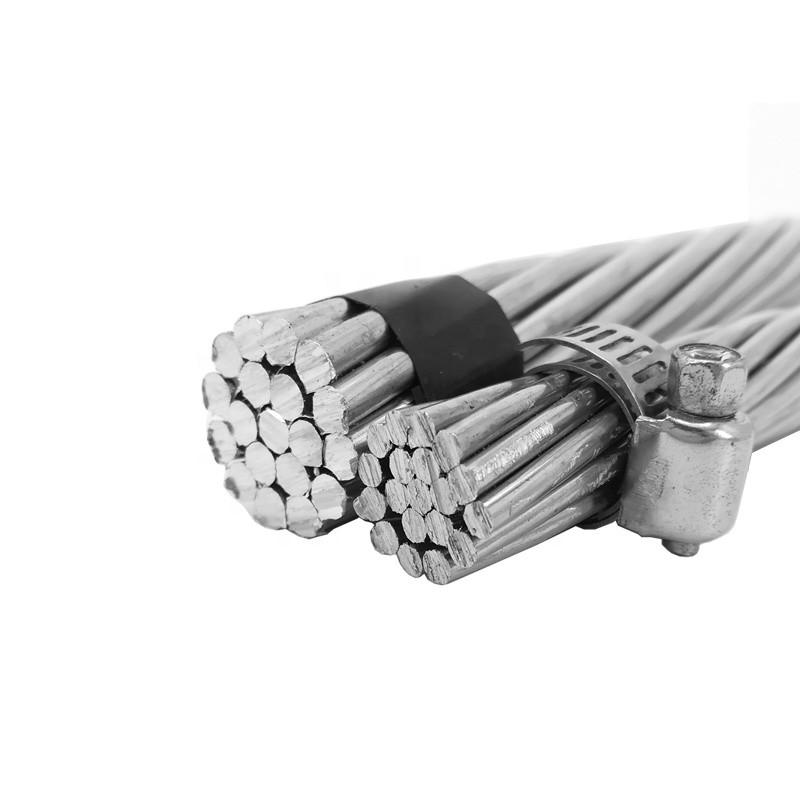

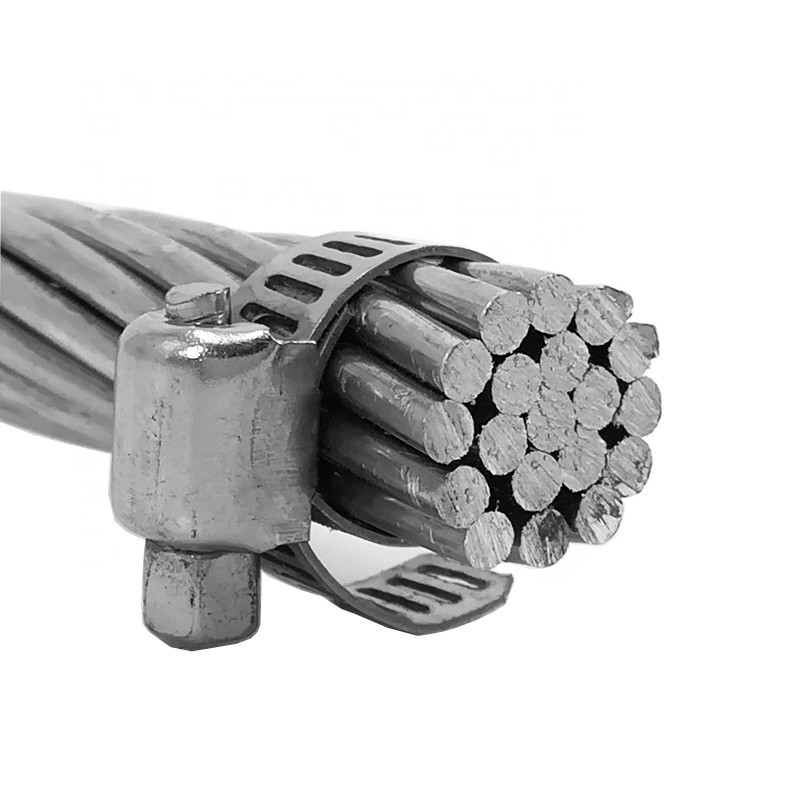

AAAC Bare Aluminum Conductor 50mm2 For Power Transmission

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	Suntech
Certification:	ISO9001,CCC
Model Number:	ACSR

Payment & Shipping Terms:

Minimum Order Quantity:	2000m
Price:	Negotiation
Packaging Details:	Exported Wooden Case or Containers
Delivery Time:	10-15 workdays
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000Ton/Month

Contact Now

Detailed Product Description

Name:	AAC All Aluminium Conductor	Jacket:	Non-sheathing Bare
Application:	Power Transmission	Model Number:	LGJ/AAC
Standard:	State Grid,Power Station	Material:	Aluminum
High Light:	Power Transmission AAAC Bare Conductor , 50mm2 AAC All Aluminum Conductor , Bare Overhead Line Conductor

50mm2 AAC/AAAC/ACSR All Bare Conductor

What is acsr conductor ?

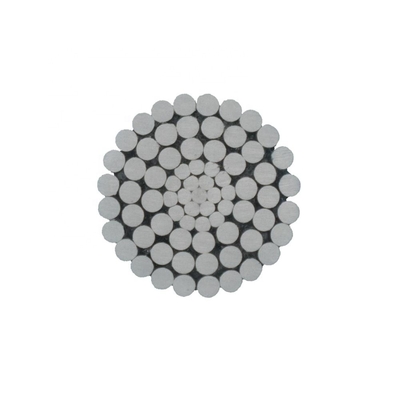

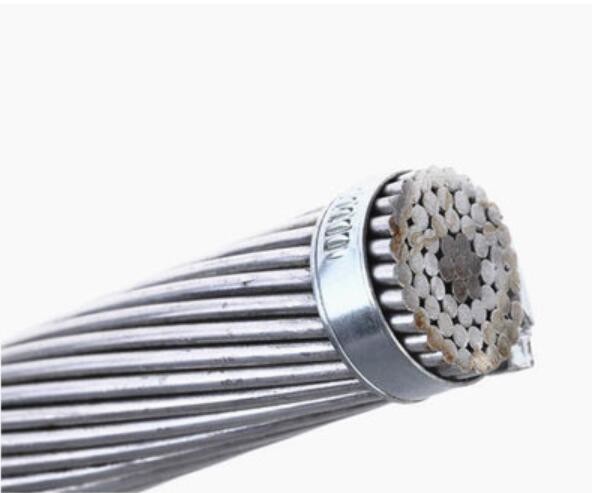

ACSR (Aluminium Conductor Steel Reinforced) conductor is a bimetallic conductors. The inner layers are composed by steel wires and the external layers are composed by hard-drawn aluminium AA1350-H19. The steel wires guarantee high mechanical performances.This kind of conductor is used for medium and long spans thanks to the high value of specific mechanical resistance and good transport capacity.

The steel section will change to obtain the RTS requested. The modulus of elasticity of single steel wire is three time greater than an aluminium single wire. The final modulus of elasticity is defined by the composition of ACSR conductor (number of steel wires, number of aluminium wires).The same behaviour will be found for the coefficient of linear expansion. The final value is determined by the single value of the material used and the modulus of elasticity and the section of the two components.To guarantee the protection of steel, a thin zinc coating on the wire is carried out. The zinc coating is important to prevent the galvanic corrosion.ACSR conductors has always been given high reliability thanks for the presence of steel that ensures the conductor large safety margins.

ACSR Conductors In Canadian Standard

Code name	Total Area			Stranding and diameter		Approximate overall diameter	Linear mass			Rated tensile strength	Maximum D.C. Resistance at 20 ℃ Ω/km	Cuttent Rating
	Aluminum	Steel	Total	Aluminum	Steel		Aluminum	Steel	Total.
	mm 2	mm 2	mm 2	mm	mm	mm	kg/km	kg/km	kg/km	daN		A
wren	8.34	1.39	9.73	6/1.33	1/1.33	3.99	22.9	10.8	33.7	308	3.43035	63
Warbler	10.59	1.34	11.93	6/1.5	1/1.50	4.5	29	14	43	420	2.7139	67
Turkey	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	524	2.1586	78
Swan	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	832	1.3557	105
Swante	21.16	5.35	26.5	7/1.96	1/2.61	6.53	58	42	100	1053	1.3557	104
Swallow	26.69	4.45	31.14	6/2.38	1/2.38	7.14	73.3	34.6	107.9	1021	1.07124	126
Sparrow	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	1270	0.8535	139
Sparate	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	1611	0.8535	138
Robin	42.39	7.1	49.49	6/3.00	1/3.00	9	116	55	171	1585	0.6767	160
Raven	53.48	8.9	62.38	6/3.37	1/3.37	10.11	147	69	216	1932	0.5364	183
Quail	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	2362	0.4255	210
Pigeon	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	2941	0.3373	241
Penguin	107.23	17.87	125.1	6/4.77	1/4.77	14.31	294	139	433	3706	0.2675	276
Waxwing	135.16	7.48	142.64	18/3.09	1/3.09	15.45	373	58	431	3027	0.2133	319
Partridge	135.16	22	157.16	26/2.57	7/2.00	16.28	374	172	546	5029	0.2143	323
Ostrich	152	24.71	176.71	26/2.73	7/2.12	17.28	421	193	614	5652	0.1906	346
Merlin	170.45	9.48	179.93	18/3.47	1/3.47	17.35	470	74	544	3823	0.1691	364
Linnet	170.45	27.81	198.26	26/2.89	7/2.25	18.31	472	217	689	6271	0.1699	371
Oriole	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	311	784	7745	0.1704	372
Chickadee	201.42	11. 16	212.58	18/3.77	1/3.77	18.85	555	87	642	4399	0.1431	403
Brant	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	6469	0.1438	405
Ibis	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	7211	0.1438	403
Lark	201.42	46.97	248.39	30/2.92	7/2.92	20.44	560	367	927	8869	0.1442	410
Pelican	241.68	13.42	255.1	18/4.12	1/4.14	20.7	666	105	771	5216	0.1193	449
Flicker	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	7666	0.1199	454
Hawk	241.68	39.42	281.1	26/3.44	7/2.67	21.79	670	308	978	8665	0.1199	455
Hen	241.68	56.39	298.07	30/3.20	7/3.20	22.4	671	441	1112	10534	0.1201	457
Osprey	282	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	6088	0.1022	492
Parakeet	282	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1067	8822	0.1027	492
Dove	282	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1140	10103	0.1027	499
Eagle	282	65.81	347.81	30/3.46	7/3.46	24.21	783	515	1298	13392	0.103	500
Peacock	306.58	39.74	346.32	24/4.03	7/2.69	24.2	849	311	1160	9588	0.0945	522
Squab	306.58	49.94	356.52	26/3.87	7/3.01	24.51	850	390	1240	10841	0.0945	523
Wood duck	306.58	71.55	378.13	30/3.16	7/3.61	25.25	851	560	1411	12884	0.0947	523
Teal	306.58	69.87	376.45	30/3.61	19/2.16	25.24	851	548	1399	13359	0.0947	527
Kingbird	322.26	17.9	340.16	18/4.78	1/4.78	23.88	889	139	1028	6956	0.08945	530
Rook	322.26	41.81	364.07	24/4.14	7/2.76	24.84	893	326	1219	10083	0.08989	537
Grosbeak	322.26	52.45	374.71	26/3.97	7/3.09	25.15	893	409	1302	11180	0.08989	538
Scoter	322.26	75.22	394.48	30/3.70	7/3.70	25.88	895	589	1484	13544	0.09011	541
Egret	322.26	73.55	395.81	30/3.70	19/2.22	25.9	894	576	1470	14055	0.09011	542
Swift	322.26	8.96	331.22	36/3.38	1/3.38	23.62	888	70	958	6052	0.08945	542
Flamingo	337.74	43.81	381.55	24/4.23	7/2.82	25.4	936	342	1278	10566	0.08577	552
Gannet	337.74	55.03	392.77	26/4.07	7/3.16	25.76	936	429	1365	11733	0.08577	618
Stilt	362.58	46.97	409.55	24/4.39	7/2.92	26.31	1005	367	1372	11335	0.07989	577
Starling	362.58	59.03	421.61	26/4.21	7/3.28	26.68	1005	461	1466	12591	0.07989	578
Redwing	362.58	82.58	445.16	30/3.92	19/2.35	27.43	1006	647	1653	15394	0.08009	581
Tern	402.84	27.87	430.71	45/3.38	7/2.25	27.03	1116	217	1333	9737	0.07191	610
Condor	402.84	52.19	455.03	54/3.08	7/3.08	27.72	1116	408	1524	12445	0.07911	614
Cuckoo	402.84	52.19	455.03	24/4.62	7/3.08	27.74	1116	408	1522	12394	0.07191	614
Drake	402.84	65.51	468.45	26/4.44	7/3.45	28.11	1116	518	1628	13992	0.07191	614
Coot	402.84	11.16	414	36/3.77	1/3.77	26.41	1110	88	1198	7485	0.07156	614
Mallard	402.84	91.87	484.71	30/4.14	19/2.48	28.96	1119	719	1838	17118	0.07208	618
Ruddy	456.06	31.54	487.6	45/3.59	7/2.40	28.73	1263	247	1510	10931	0.06351	656
Canary	456.06	59.1	515.16	54/3.28	7/3.28	29.52	1263	461	1724	14095	0.06351	660
Rail	483.42	33.42	516.84	45/3.70	7/2.47	29.61	1339	262	1601	11585	0.05992	679
Catbird	483.42	13.42	496. 84	36/4.14	1/4.14	28.95	1333	105	1438	8766	0.05962	679
Cardinal	483.42	62.65	546. 07	54/3.38	7/3.38	30.42	1339	490	1829	14936	0.05992	681
Ortolan	523.68	36.19	559. 87	45/3.85	7/2.57	30.81	1451	283	1734	12310	0.05331	712
Tanager	523.68	14.51	538.19	36/4.30	1/4.30	30.12	1443	113	1556	9493	0.05504	710
Curlew	523.68	67.87	591.55	54/3.52	7/3.52	31.68	1451	530	1981	16180	0.05531	715
Bluejay	563.93	39.03	602.96	45/4.00	7/2.66	31.98	1563	385	1868	13263	0.05136	743
Finch.	563.93	71.55	635.48	54/3.65	19/2.19	32.85	1570	580	2130	17441	0.05161	746
Bunting	604.26	41.55	645.81	48/4.14	7/2.76	33.12	1674	327	2001	14179	0.04793	772
Grackle	604.26	76.58	680.84	54/3.77	19/2.27	33.97	1682	600	2282	18678	0.04817	773
Bittern	644.51	44.52	689.03	45/4.27	7/2.85	34.17	1785	349	2134	15148	0.04494	802
Pheasant	644.51	81.63	726.19	54/3.90	19/2.34	35.1	1795	638	2433	19400	0.04516	807
Skylark	644.51	17.87	662.38	36/4.78	1/4.78	33.42	1777	140	1917	11585	0.04472	810
Dipper	684.84	47.1	731.94	45/4.40	7/2.92	35.16	1898	368	2266	16070	0.0423	831
Martin	684.84	88.71	771.55	54/4.02	19/2.41	36.17	1906	679	2585	20605	0.0425	835
Bobolink	725.1	50.32	775.42	45/4.53	7/3.02	36.24	2009	393	2402	17071	0.03994	859
Plover	725.1	91.87	816.97	54/4.14	19/2.48	37.24	2019	719	2738	21824	0.04013	862
Nuthatch	765.35	52.9	818.25	45/4.65	7/3.10	37.2	2120	414	2534	17789	0.03784	886
Parrot	765.35	96.84	862.19	54/4.25	19/2.55	38.25	2131	759	2890	23020	0.03802	890
Lapwing	805.68	55.48	861.16	45/4.77	7/3.18	38.16	2232	435	2667	18702	0.03595	911
Falcon	805.68	102.1	907.81	54/4.36	19/2.62	39.26	2243	799	3042	24255	0.03613	917
Chukar	902.7	73.51	902.72	84/3.70	19/2.22	40.7	2511	575	3086	22685	0.03245	975
BlueBird	1092	88.8	1092.28	84/4.07	19/2.44	44.76	3036	697	3733	26830	0.02681	1180
Kiwi	1100	47.5	1099.2	72/4.41	7/2.94	44.07	3057	370	3427	22160	0.02684	1180
Thrasher	1170.8	65.15	1170.8	76/4.43	19/2.09	45.9	3256	511	3767	25300	0.02478	1200
Grouse	40.52	14.13	54.65	8/2.54	1/4.24	9.32	112	110	222	2360	0.7115	155
Petrel	51.61	30.06	81.67	12/2.34	7/2.34	11.71	143	235	378	4715	0.5613	187
Minorca	56.13	32.77	88.9	12/2.44	7/2.44	12.22	156	256	412	5125	0.5161	197
Leghorn	68.19	39.81	108	12/2.69	7/2.69	13.46	189	311	500	6170	0.4248	221
Guinea	80.58	46.97	127.55	12/2.92	7/2.92	14.63	223	367	590	7255	0.3595	244
Dotterel	89.48	52.19	141.67	12/3.08	7/3.08	15.42	248	409	657	7850	0.3237	260
Dorking	96.71	56.39	153.1	12/3.20	7/3.20	16.03	268	441	709	8480	0.2995	272
Brahma	102.97	91.87	194.84	16/2.86	19/2.48	18.14	285	722	1007	12880	0.2813	288
Auk	102.84	92.32	195.2	8/4.05	7/2.25	14.83	282.7	217.3	500	8740	0.2789	276
Cochin	107.1	62.45	169.55	12/3.37	7/3.37	16.84	297	488	765	9390	0.2705	287
