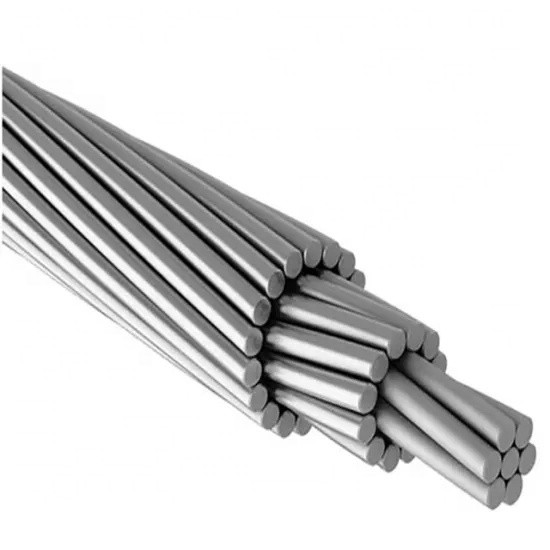

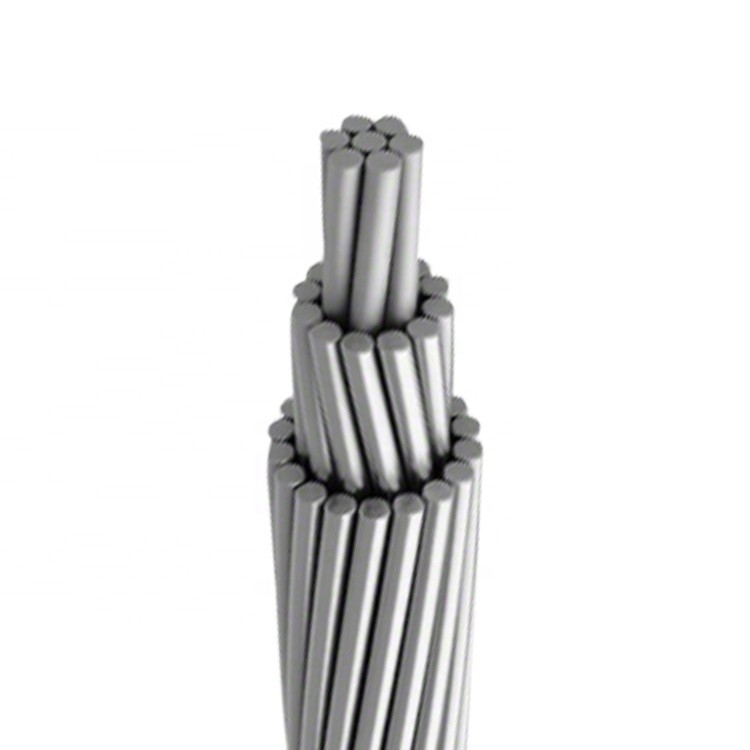

2 AWG Iris AAC All Aluminum Conductor Overhead Line Transmission

2 AWG Iris AAC All Aluminum Conductor Overhead Line Transmission

  • 2 AWG Iris AAC All Aluminum Conductor Overhead Line Transmission
  • 2 AWG Iris AAC All Aluminum Conductor Overhead Line Transmission
2 AWG Iris AAC All Aluminum Conductor Overhead Line Transmission
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO9001,CCC
Model Number: AAC
Payment & Shipping Terms:
Minimum Order Quantity: 2000m
Price: Negotiation
Packaging Details: Exported Wooden Case or Containers
Delivery Time: 10-15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000Ton/Month
Contact Now
Detailed Product Description
Name: AAC All Aluminium Conductor Jacket: Non-sheathing Bare
Application: Power Transmission Model Number: LGJ/AAC
Standard: State Grid,Power Station Material: Aluminum
High Light:

2 AWG Iris All Aluminum Conductor

,

Bare AAC All Aluminum Conductor

,

Bare Overhead Conductors Transmission

2 AWG Iris AAC All Aluminium Conductor


What is 2 AWG Iris AAC Cable ?

2 AWG Iris AAC Cable is manufactured from electrolytically refined (E.C.GRADE) aluminium, having purity of minimum 99.5% of aluminium. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. These conductors are also used extensively in costal because it has a very high degree of corrosion resistance



2 AWG Iris AAC Cable Specifications:



Size AWG: 2
Stranding: 7
Stranding Class: AAA
Diameter Individual Wire Aluminum (Inches): 0.0974
Diameter Complete Cable (O.D.) (Inches): 0.292
Cross Sectional Area (Sq. Inches): 0.0521
Weight Per 1000ft Total (Lbs.): 62.3
Rated Breaking Strength (Lbs.): 1350
Resistance DC 20°C Per 1000ft: 0.260
Resistance DC 75°C Per 1000ft: 0.318
Allowable Ampacity 90C (Amps): 185 Amps



2 AWG Iris AAC Cable Application

2 AWG Iris AAC Cable can be used in low and medium voltage overhead lines. It’s commonly used in urban areas because of its ability to carry significant voltages over short distances. The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries. Shipyards and offshore construction sites benefit from the conductor’s durability. 2 AWG Iris AAC Cable can be used for most overhead transmission duties when conductor strength is not a factor. The conductor can also be used for primary and secondary distribution applications.
AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.

2 AWG Iris AAC Cable Standards:

ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.
For the best 2 awg iris aac cable price, Please feel free to leave your requirement, We will reply you in 12 hours.

AAC overhead conductor DIN 48201
Code Number
Calculated Area
Stranding and Wire Diameter
Overall
Linear
Calculated
Max. D.C.
Diameter
Mass
Breaking load
Resistance at 20°C
mm2
mm2
mm
mm
Kg/km
daN
Ω/km
16
15.89
7/1.70
5.1
44
290
1.8018
25
24.25
7/2.10
6.3
67
425
1.1808
35
34.36
7/2.50
7.5
94
585
1.8332
50
49.48
7/3.00
9
135
810
0.5786
50
48.36
19/1.80
9
133
860
0.595
70
65.82
19/2.10
10.5
181
1150
0.4371
95
95.27
15/2.50
12.5
256
1595
0.3084
120
117
19/2.80
14
322
1910
0.2459
150
147.1
37/2.25
15.2
406
2570
0.196
185
181.6
37/2.50
17.5
501
3105
0.1587
240
242.54
61/2.25
20.2
670
4015
0.1191
300
299.43
61/2.50
22.5
827
4850
0.0965
400
400.14
61/2.89
26
1105
6190
0.07221
500
499.83
61/3.23
29.1
1381
7600
0.05781
625
626.2
91/2.96
32.6
1733
9690
0.04625
800
802.1
91/3.35
36.8
2219
12055
0.03611
1000
999.71
91/3.74
41.1
2766
14845
0.02897
