Name: Thermal Bare All Aluminium Alloy Conductor For Increasing Capacity Transmission
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: TAAAC
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Thermal All Aluminium Ally Conductor

Type: Low/Medium/High Voltage

Core: Aluminum Clad Steel

Jacket: Bare

Standard: BS IEC ASTM DIN

Material: Aluminum

Highlight:

Thermal All Aluminium Alloy Conductor

Increasing Capacity AAAC Bare Conductor

Transmission Aluminium Alloy Conductors

Basic Infomation

Place of Origin: Ningbo,China

Brand Name: Suntech

Certification: ISO9001,CCC

Model Number: TAAAC

Payment & Shipping Terms

Packaging Details: Exported Wooden Case or Containers

Delivery Time: 5-7 workdays

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000Ton/Month

Gallery

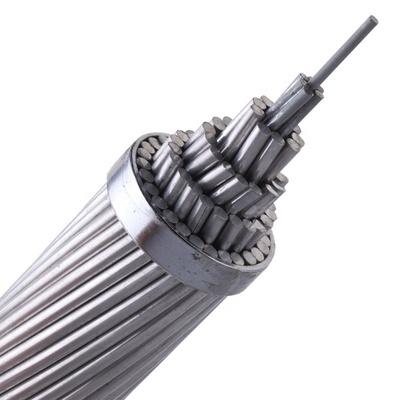

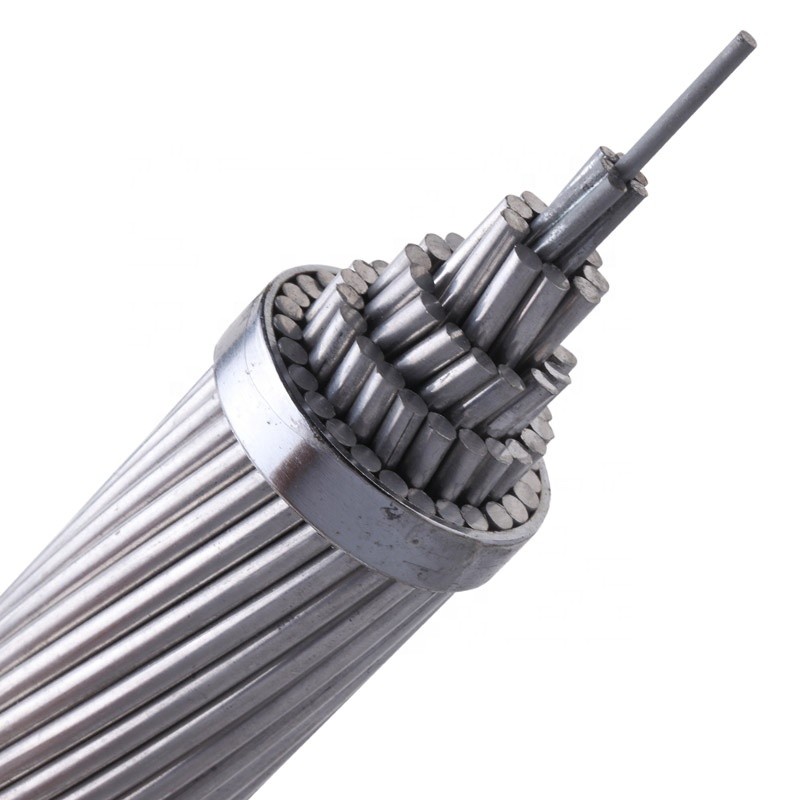

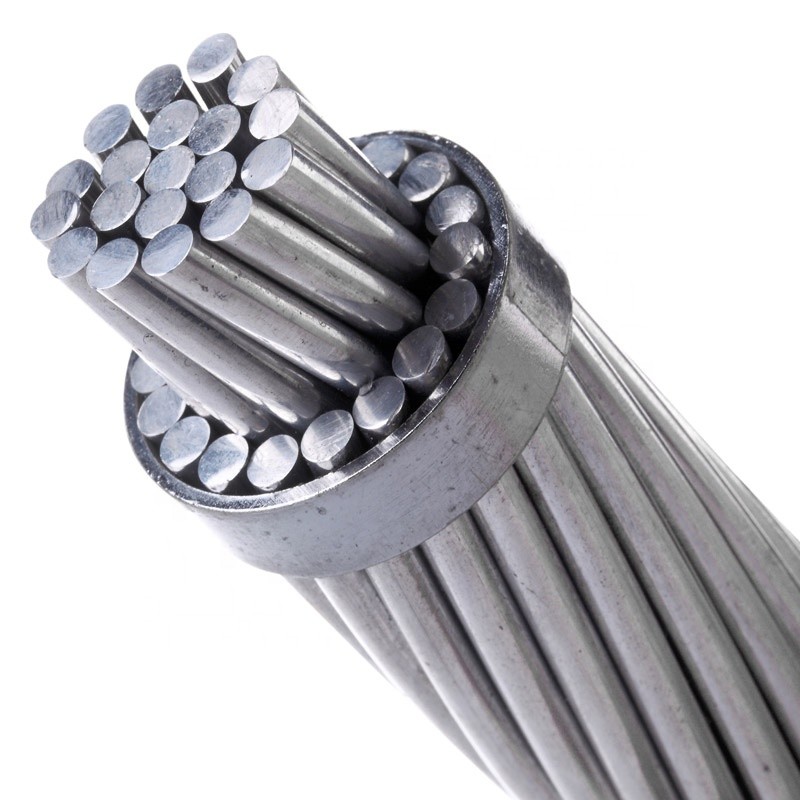

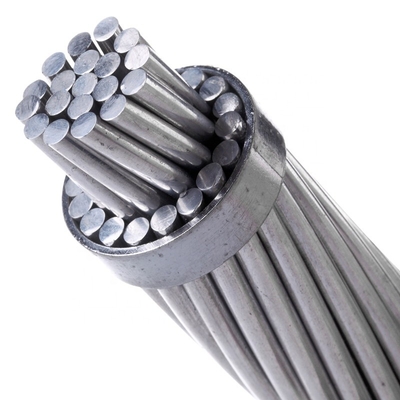

Thermal Bare All Aluminium Alloy Conductor For Increasing Capacity Transmission

Product Description

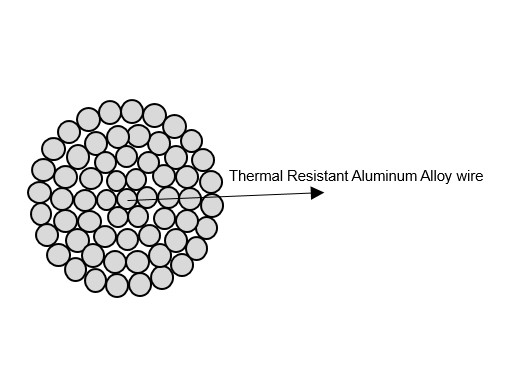

Thermal All Aluminium Ally Conductor TAAAC Conductor

nvar Conductor

Invar Conductor made is a kind of special overhead conductor stranded with high-strength aluminum-clad invar core and super thermal resistant aluminum alloy wire. It takes advantage of the low linear expansion coefficient of invar material to make "low sag" and uses a thermal resistant aluminum alloy to have " large-capacity", making full use of original transmission line and tower resources and saving space. It has the feature of doubling capacity with the same diameter and the same sag, which can ensure power transmission at peak season.

Characteristics

2 times current carrying capacity without increasing sag.
More economical for fittings.
Easier installation than ACCC Conductor.
More reliable operation experience.
In compliance with or exceeding the industry’s most stringent requirements, including:
IEC 62004
IEC 61089
IEC 62219
Q/320623-AP25

Applications

Reconstruction of old transmission lines.
Capacity increasing transmission line.

Typical Parameters (Trapezoid structure)

Code	Structure			Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	Current capacity
	Al	Steel		Areas	Diameter	Breaking load	DC resistance at 20℃	Weight	TACIR		ZTACIR
	Nos./mm			mm2	mm	kN	Ω/km	Kg/km	A
160/40	18/3.37		7/2.65	199.16	17.04	65.06	0.1759	730	771	957
200/45	17/3.87		7/2.85	244.62	18.87	76.87	0.1412	883	890	1105
200/50	17/3.87		7/2.95	247.81	19.01	80.39	0.1409	906	892	1110
250/45	18/4.20		7/2.85	294.04	20.64	82.64	0.1141	1019	1017	1268
250/40	18/4.13		7/2.75	290.96	20.51	81.12	0.1143	996	1014	1264
240/55	18/4.13		7/3.20	297.43	20.82	93.12	0.1169	1083	1007	1138
240/50	18/4.71		7/3.00	290.62	20.55	88.13	0.1157	1032	1000	1131
315/55	18/4.71		7/3.20	396.92	23.15	104.06	0.0907	1266	1182	1479
315/50	18/4.71		7/3.00	363.10	22.91	97.20	0.0910	1232	1176	1471
330/60	18/4.81		7/3.30	386.95	23.68	109.70	0.0869	1329	1216	1522
350/55	20/4.71		7/3.20	404.77	24.19	109.33	0.0819	1379	1262	1580

Overseas References

Country	Total Length
USA	2600km
Finland	2130km
Chile	6800km
Peru	5000km
Thailand	5200km
Malaysia	9000km
Kenya	1700km
Nigeria	600km
Saudi Arabia	2100km
Indonesia	800km
