Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO |
Model Number: | SCO11 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Get the newest price |
Packaging Details: | Box with Pattets For Shipping |
Delivery Time: | 7-10 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 60000PCS Per Month |
Product Name: | 11kv Ceramic Type Drop Out | Application: | Overhead Line |
---|---|---|---|
Safety Standards: | IEC | Rated Voltage: | 10-220KV |
Material: | Silicone Rubber | Rated Current: | 100A |
High Light: | Silicone Rubber Drop Out Fuse Cutout,High Voltage Drop Fuse Cutout,Ceramic High Voltage Fuse Cutout |

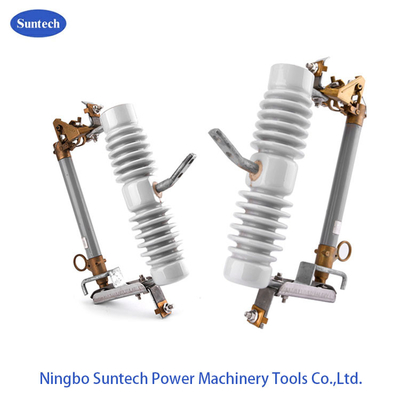

11kv Ceramic Type Drop Out Cut Out Fuse
THE FUSE LINK also is the fuse elements. is the replaceable portion of the fuse cutout that will melt and diconnect the circuit with its own heat when there is overcurrent went through it. The fuse link is the key element to control the fuse characteristics. The material, size and shape of the fuse link determine the melt properties. fuse link materials are divided into two categories: low melting point and high melting point. Low melting point materials such as lead and lead alloy, its melting point is low and easy to fuse, because of its high resistivity, so made of a large cross section size, more metal vapor produced during the melting, only suitable for the low breaking capacity of the fuse cutout. High melting point materials such as copper, silver, its melting point is high, not easy to fuse, but because of its low resistivity, can be made than the low melting point of smaller cross section size, less metal vapor produced during the melting, suitable for high breaking capacity of the fuse cutout . The shapes of fuse link are either filamentous or banded. Changing the shape of the variable section can significantly change the melt characteristics of the fuse cutout. Fuse cutouts have various melted characteristic curves and can be applied to different types of protection objects.
Suntech is an experienced manufacturer in fuse cutout production, have sale thousands and thousands pieces to all over the world. offering fuse cut out from 11kV to 33kV ,with porcelain body or polymer body. 11kv fuse cutout, 11kv dropout fuse, 33kv fuse cutout, 33kv dropout fuse, are very hot sale product. Just feel free to conntact us if you need, even you want to slove technical problems.
Fuse cutout can be divided into high voltage fuse cutout and low voltage fuse cutout according to the service voltage. It can be divided into dropout fuse for protecting transformers and general electrical equipment, for protecting voltage transformers, for protecting power capacitors, ffor protecting semiconductor components, dropout fuse for protecting motors and dropout fuse for protecting household appliances, etc. According to the structure can be divided into open type, semi-closed type, pipe type and jet type fuse cutout
The rated current of the fuse link is not equal to the rated current of the whole fuse cutout . The rated current of the fuse link shall be selected according to the load current of the protected equipment. The rated current of the fuse cutout shall be greater than the rated current of the fuse link.
Products Specification | ||||||||
Type | Rated voltage(kV) | Rated current(A) | Rated frequency(HZ) | Rated breaking current(KA) | Power frequency dry pressure (kV) | Main loop resistance(Ω) | Lightning impulse voltage(kV) | Short-term power frequency withstand voltage(kV) |
HRW3-10/200 | 10 | 200 | 50 | 12.5 | 42 | ≤300 | 110 | 50 |
HRW7-10/200 | 10 | 200 | 50 | 12.5 | 42 | ≤300 | 110 | 50 |
HRW11-10/200 | 10 | 200 | 50 | 12.5 | 42 | ≤300 | 110 | 50 |
HRW12-12/200 | 12 | 200 | 50 | 12.5 | 42 | ≤300 | 110 | 50 |
HPRW6-12/200 | 12 | 200 | 50 | 12.5 | 42 | ≤300 | 110 | 50 |
