Name: 33KV Porcelain Expulsion Drop Out Fuse Cutout Outdoor High Voltage
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SJSL-1
Price: 285,715.00 USD
Availability: InStock

33KV Porcelain Expulsion Drop Out Fuse Cutout Outdoor High Voltage

1 PCS

MOQ

Get the newest price

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Dual-Hook Aluminium Alloy Turnbuckle

Item No.: 14121-14124

Model: SJSL-1-SJSL-5

Rated Load: 10-50KN

Max Center Distance: 798-1500mm

Adjustable Distance: 290-630mm

Weight: 2-6KG

Warranty: 1 Year

Highlight:

Outdoor Drop Out Fuse Cutout

33KV Drop Out Fuse Cutout

Porcelain Expulsion Drop Out Fuse Cutout

Basic Infomation

Place of Origin: China

Brand Name: Suntech

Certification: ISO

Model Number: SJSL-1

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 7 days after deposit

Payment Terms: L/C,T/T

Supply Ability: 10000PCS /Month

Gallery

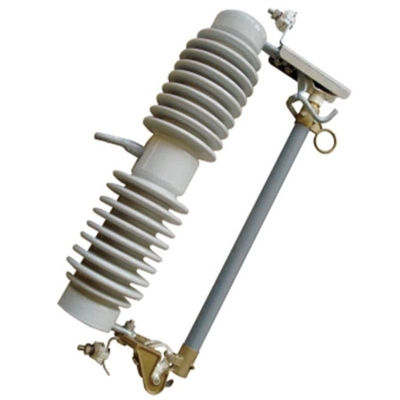

33KV Porcelain Expulsion Drop Out Fuse Cutout Outdoor High Voltage

Product Description

Outdoor High Voltage 33KV Porcelain Expulsion Drop Out Fuse Cutout

The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.

33KV Porcelain Expulsion Drop Out Fuse Cutout Outdoor High Voltage 1

33KV Porcelain Expulsion Drop Out Fuse Cutout Outdoor High Voltage 3

Description

Fuse cutout is to provide reliable protection for the 10-35KV power distribution line and distribution transformers, it also protects the overload and short circuit, switching on/off the rated load current.

Standard

IEC 60282-2

Environmental Conditions

Ambient Temperature: -30℃ - +40℃

Altitude: 3000m

Frequency: 50Hz / 60Hz

Maximum Wind Speed: 35m/s

Technical Parameter Table

Type	Unit	STCO-33/100	STCO-33/200
Rated Voltage	KV	33	33
Rated Current	A	100	200
Breaking Current	KA	6	8
Impulse Voltage (BIL)	KV	170	170
Power Frequency withstand Voltage	KV	70	70
Creepage Distance	MM	660	660
Weight	KGS	15	15.5
Dimension	CM	56x38x14.5	56x38x14.5
