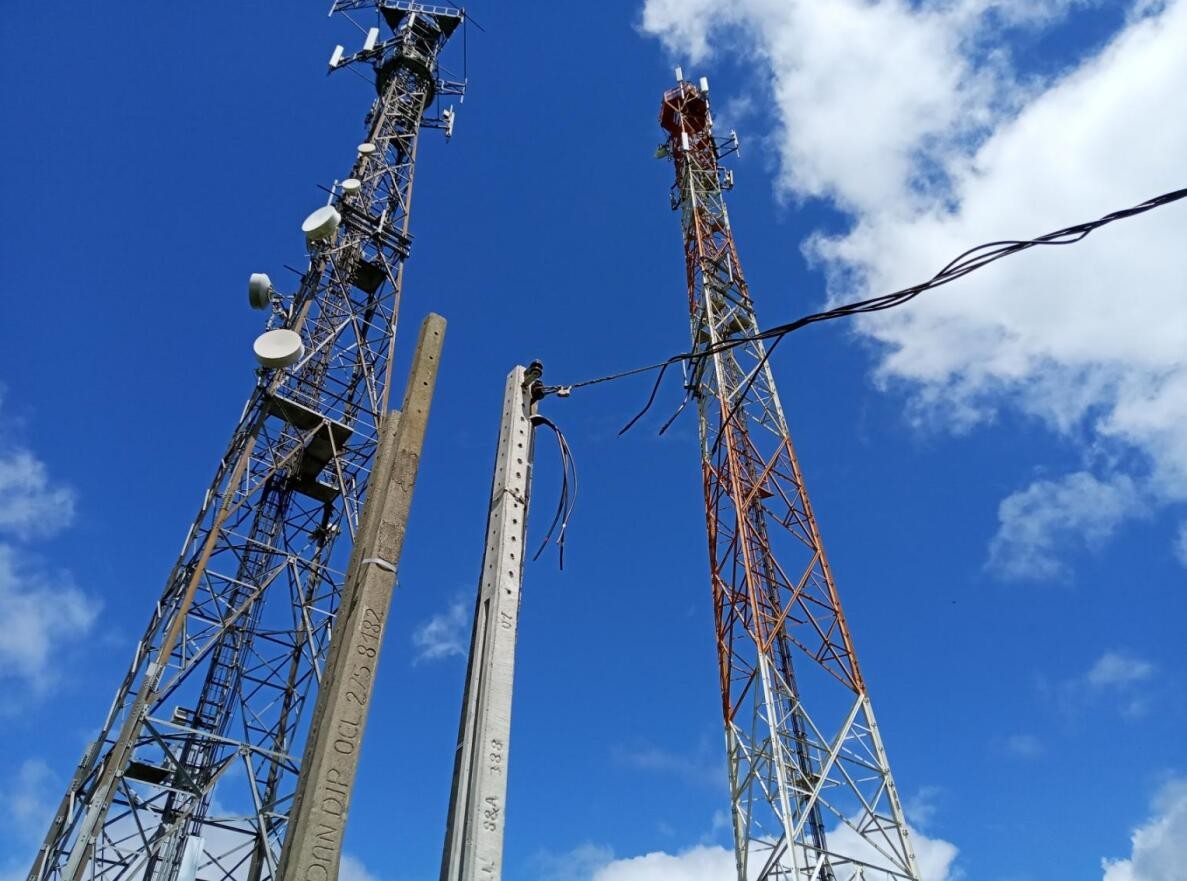

Transmission Line Tubular Steel Telecom Tower For Construction Site

Transmission Line Tubular Steel Telecom Tower For Construction Site

  • Transmission Line Tubular Steel Telecom Tower For Construction Site
  • Transmission Line Tubular Steel Telecom Tower For Construction Site
Transmission Line Tubular Steel Telecom Tower For Construction Site
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Steel Telecom Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Steel Telecom Tower Material: Steel Q235,Q345,Q420
Height: 10-120M Surface Treatment: Hot Dip Galvanized
Wind Speed: 100~160km/h_3 Second Gust Usage: Construction Site
High Light:

Q235 Steel Telecom Tower

,

Hot Dip Galvanized Steel Tubular Tower

,

Q420 Steel Telecom Tower

Transmission Line Tubular Telecommunication Steel Telecom Tower For Construction Site



We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.



Production Process

 Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical   specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical   documents from our client.



Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

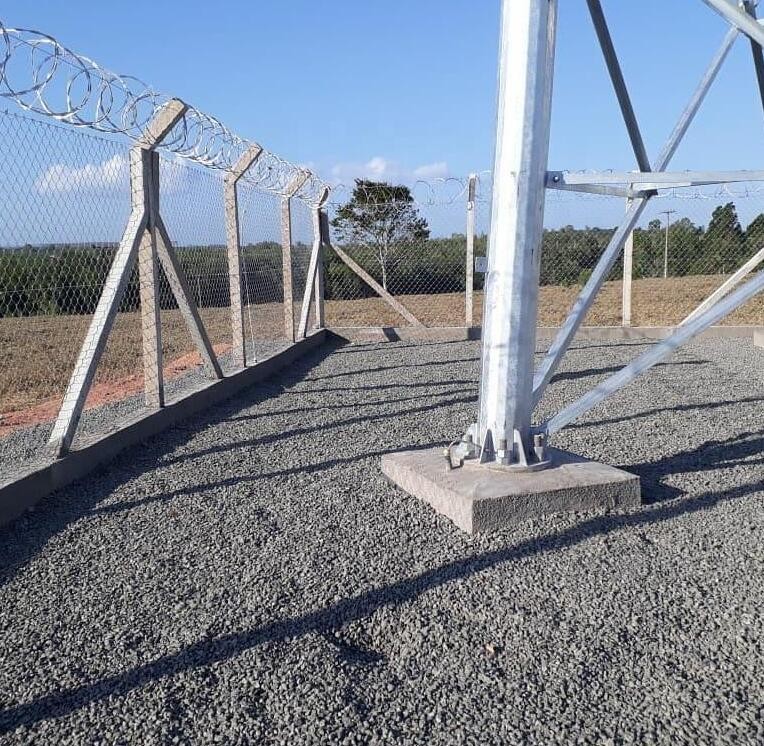

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients



Our Product Range:



Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



Factory price

We are our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.



Feedback:

Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services



Transmission Line Tubular Steel Telecom Tower For Construction Site 0



FAQ:

1. Are you a manufacturer or a trading company?

We are a professional electrical manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.

2. Do you offer free samples?

We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.

3. Do you accept our design on products or boxes?

Yes. We accept customized design and we have a professional design team who can design products based on your requirements.

4. How long is your delivery time?

Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.



Our Services

Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project

management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide

fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries

Association,China Standard, American National Standards Institute, Uniform Building Code, and others).
