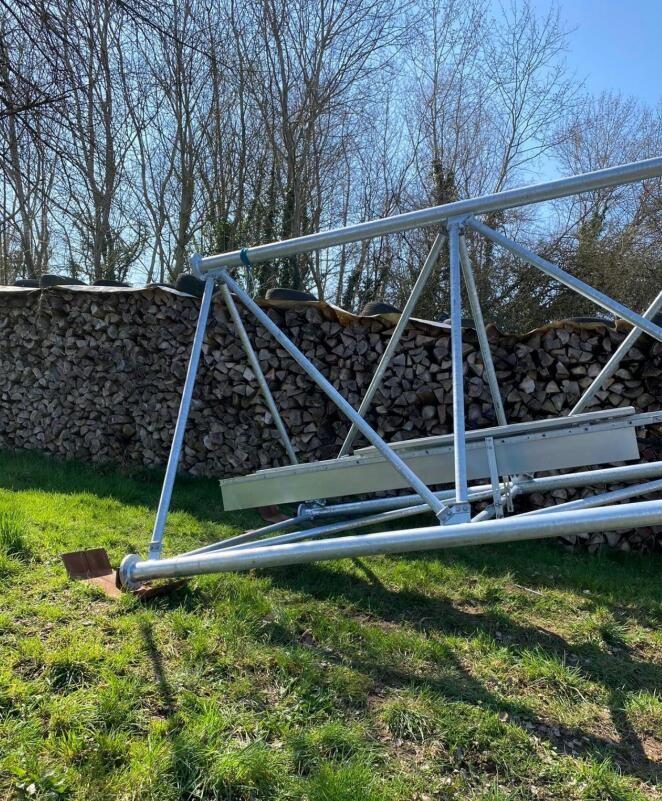

50m Hot Dip Galvanized Steel Angle Tubular Tower With Bracket Fall Arrest

50m Hot Dip Galvanized Steel Angle Tubular Tower With Bracket Fall Arrest

  • 50m Hot Dip Galvanized Steel Angle Tubular Tower With Bracket Fall Arrest
  • 50m Hot Dip Galvanized Steel Angle Tubular Tower With Bracket Fall Arrest
50m Hot Dip Galvanized Steel Angle Tubular Tower With Bracket Fall Arrest
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Steel Angle Tubular Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest price
Packaging Details: Exported Containers
Delivery Time: 30-35 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Self-Supply Steel Lattice Tower Material: Steel Q235,Q345,Q420
Height: 10-100M Surface Treatment: Hot Dip Galvanized
Wind Speed: 100~160km/h_3 Second Gust Lifetime: 20-30 Years
High Light:

Q235 Steel Angle Tubular Tower

,

50m Telecommunication Steel Tower

,

Hot Dip Galvanized Steel Tubular Tower

50m Telecommunication Hot Dip Galvanized Steel Angle Tubular Tower With Bracket,Fall Arrest,Aviation Light



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.



Our Product Range:



Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



Production Process

 Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical   specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical   documents from our client.



Monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.



Detailed Product description as follows :

1. Circle /Polygonal

2. Slip joint/Flange Joint

3. Hot Dip Galvanization (ASTM123)

4. ISO9001 / ISO14001 certificate

5. Slip joints result in easy field assembly and erection

6. Painting Optional: according to customer's requirements

7. Design standard: TIA/EIA-222-G/F

8. Design software: SUNTECH TOWER



Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients



50m Hot Dip Galvanized Steel Angle Tubular Tower With Bracket Fall Arrest 0
