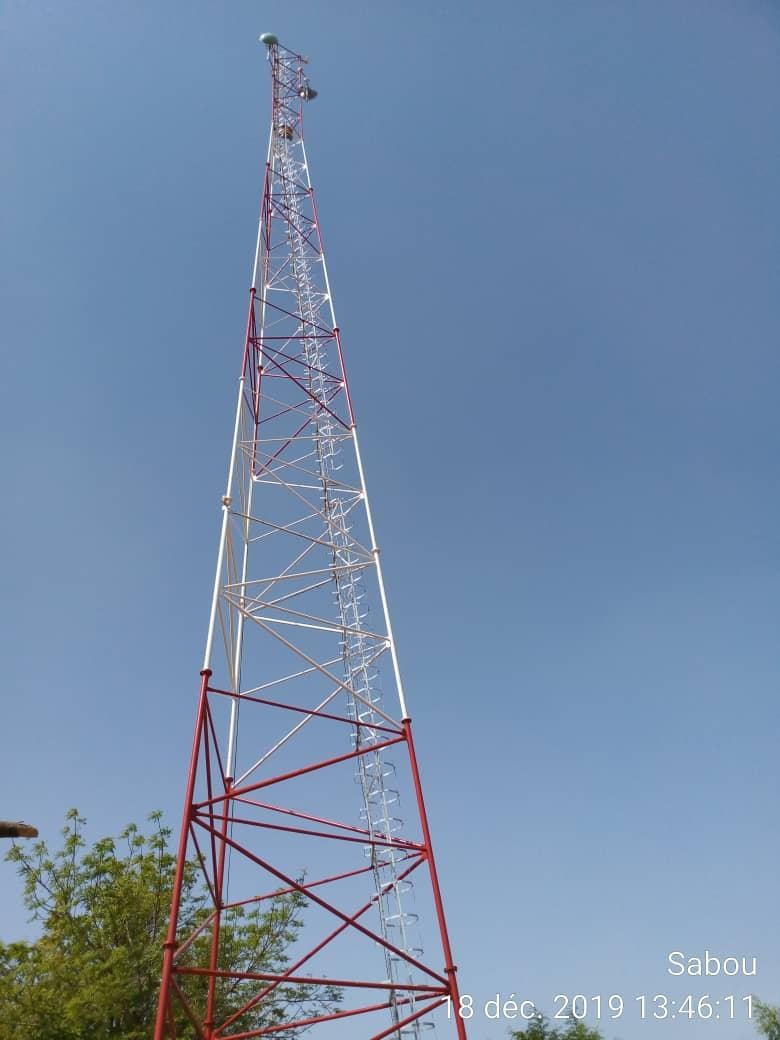

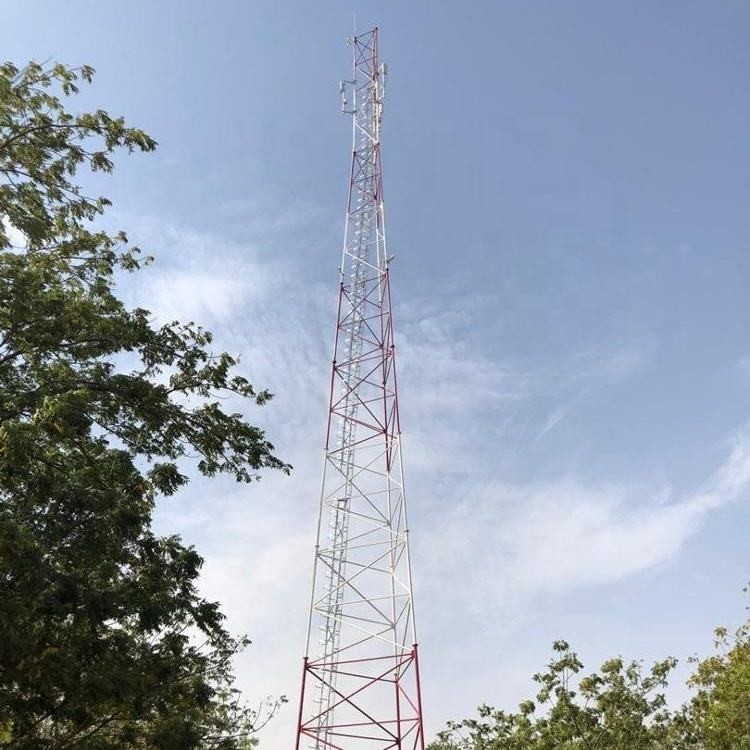

Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets

Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets

  • Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets
  • Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets
Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Tubular Telecom Antenna Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Tubular Telecom Antenna Tower Material: Steel Q345,Q235,Q420
Height: 10-100M Surface Treatment: Hot Dip Galvanized
Wind Speed: 110~160km/h_3 Second Gust Application: Telecom Site Construction
High Light:

Galvanized Steel Telecom Antenna Tower

,

Tubular Telecom Antenna Tower

,

Steel Q235 Telecom Antenna Tower

Telecommunication Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets And Lightning Rod Etc

Telecommunication Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets And Lightning Rod



Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.



Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily



Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients



Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets 0



Quick Detail:

4 legged square telecom lattice angular tower feature:

Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base

station; simple structure, easy processing, convenient for factory production. Generally high tower type,

suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.

Applicable to rural and suburban area which is open, lower area on the appearance requirements.



Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on

a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for

standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped

with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,

lightning protection kit and more. All of the accessories can be installed at any desired height and orientation

according to customer Specification.



Galvanized Steel Angle Tubular Telecom Antenna Tower With Brackets 1



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.
