Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech Tower |
| Certification: | ISO, CE |
| Model Number: | Rooftop Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the newest price |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 70000 Metric Ton/Metric Tons Per Year |
| Product Name: | Rooftop Tower | Material: | Steel Q345,Q235,Q420 |
|---|---|---|---|
| Wind Speed: | 110~160km/h_3 Second Gust | Application: | Construction Site |
| Surface Treatment: | Hot Dip Galvanised | Lifetime: | 20-30 Years |
| High Light: | Steel Q235 Rooftop Telecom Tower,Aviation Light Steel Tower,Lightning Rod Telecommunication Steel Tower |
||

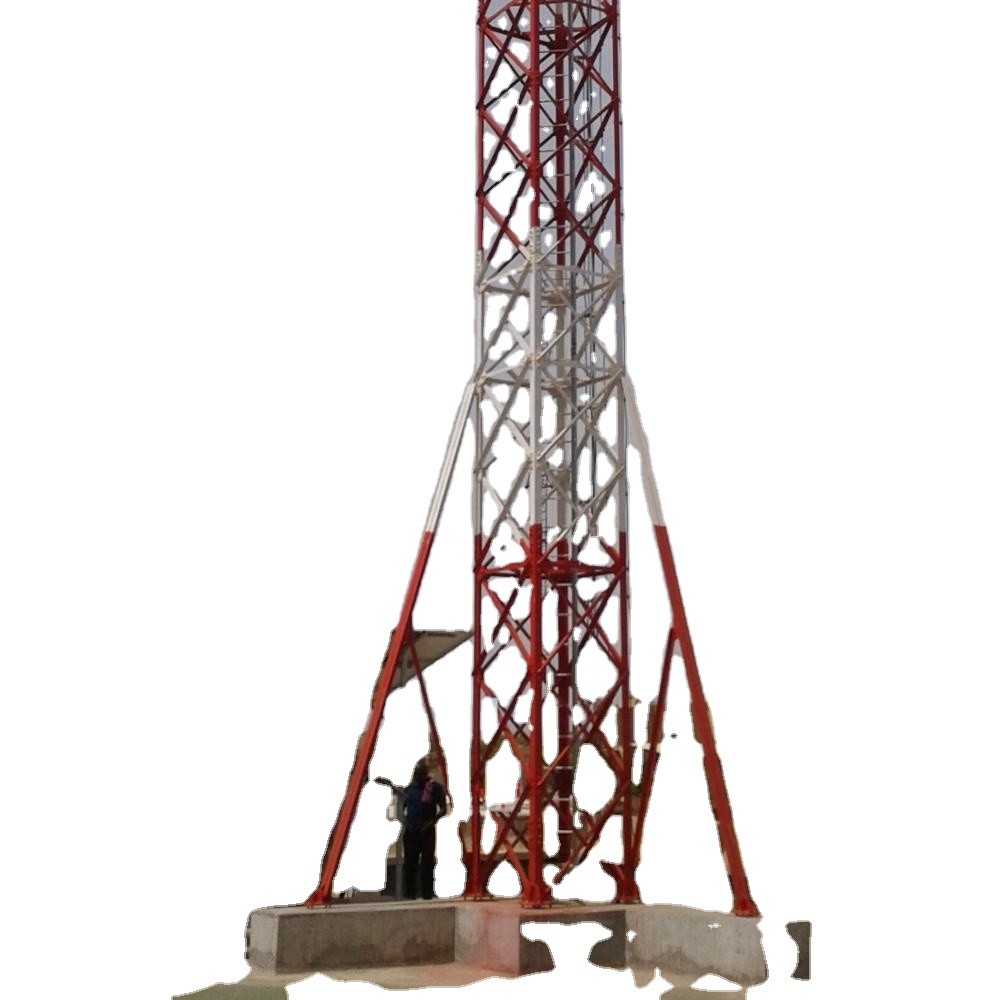

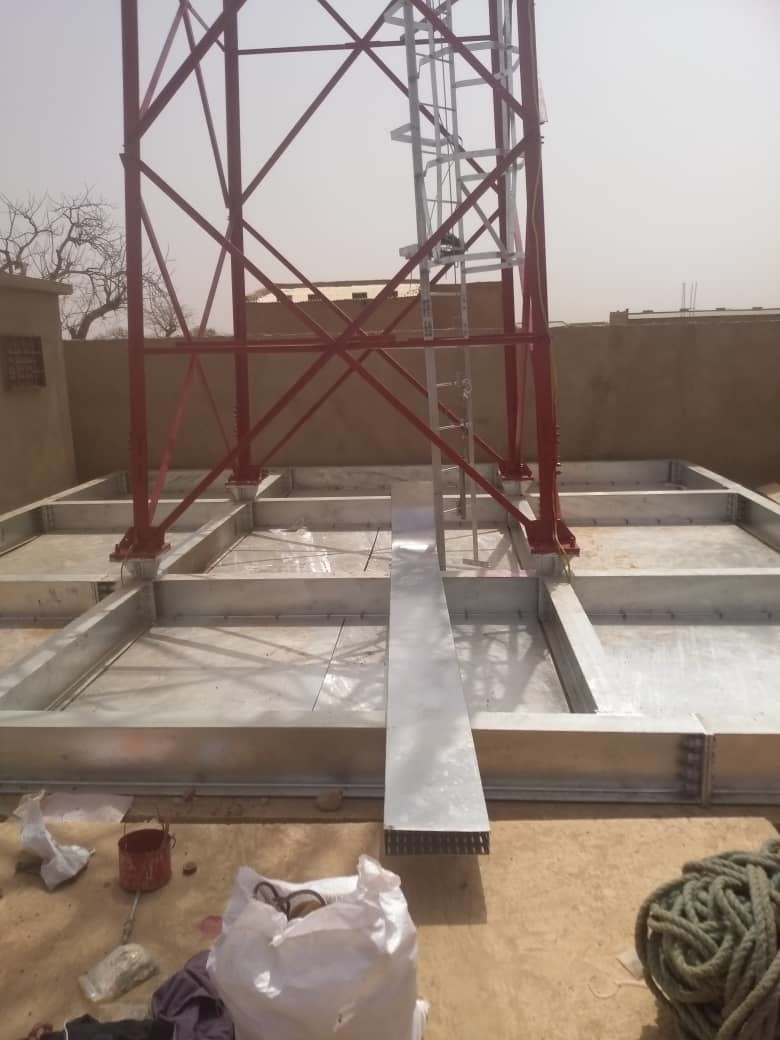

Rooftop Tower For Telecommunication With Bracket,Lightning Rod,Fall Arrest,Aviation Light
Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line and telecommunication towers in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.
Quick Detail:
Self supporting tower usually is 3-leg or 4-leg tower, and its material is steel pipe or angle steel. As for the connection,
tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and
other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,
ultrashort wave, wireless network signal transmission and transmission.
Signal tower is a type of signal transmission tower, also called a signal transmission tower or a signal
tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe
three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),
lifting communication tower, and movable communication tower.

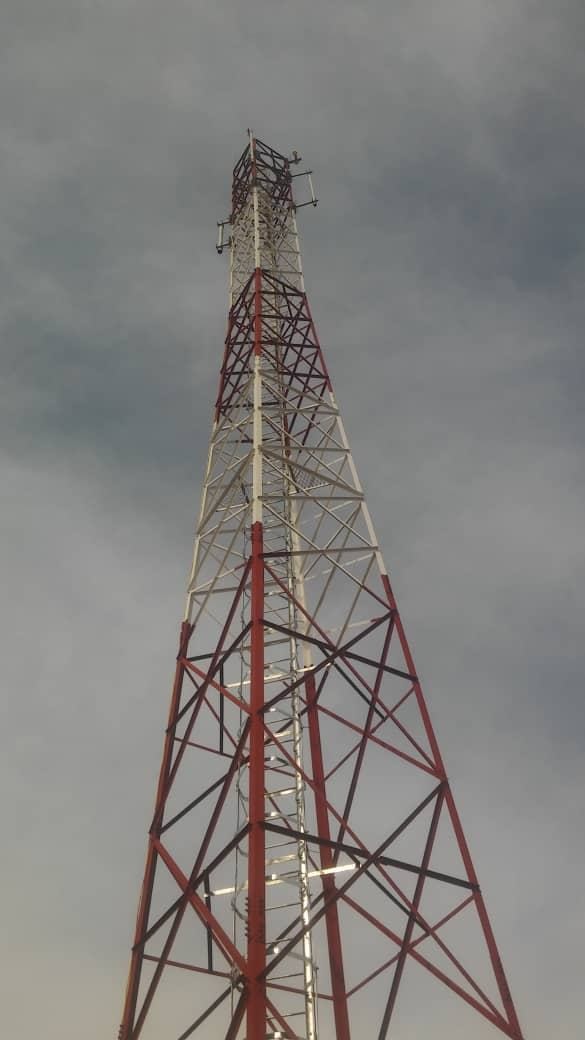

4 legged square telecom lattice angular tower feature:
Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base
station; simple structure, easy processing, convenient for factory production. Generally high tower type,
suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.
Applicable to rural and suburban area which is open, lower area on the appearance requirements.
Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on
a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for
standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped
with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,
lightning protection kit and more. All of the accessories can be installed at any desired height and orientation
according to customer Specification.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 5. Guyed Mast |
| 10 | Warranty |
1. Tower structures: 10 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
