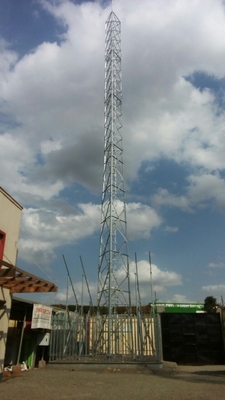

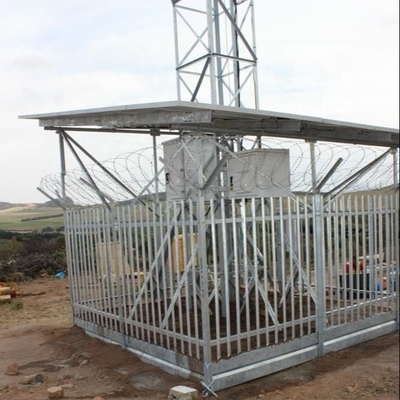

Lattice Type Paint Kits Steel Tower Used For Communication

Lattice Type Paint Kits Steel Tower Used For Communication

  • Lattice Type Paint Kits Steel Tower Used For Communication
  • Lattice Type Paint Kits Steel Tower Used For Communication
Lattice Type Paint Kits Steel Tower Used For Communication
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Lattice Type Paint Kits Steel Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest price
Packaging Details: Exported Containers
Delivery Time: 30-35 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 90000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Lattice Type Paint Kits Steel Tower Material: Steel Q345,Q235,Q420
Height: 10-100M Surface Treatment: Hot Dip Galvanized
Wind Speed: 110~160km/h_3 Second Gust Application: Telecom Site Construction
High Light:

Paint Kits Telecommunication Steel Tower

,

Q345 Communication Steel Tower

,

Lattice Telecommunication Steel Tower

Telecommunication Lattice Type Paint Kits Steel Tower Used For Communication



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.



Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.



Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple structure, and clear force transmission, which can give full play to the material's bearing performance. On the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand, it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure body shape coefficient can significantly reduce the wind load on the tower body.



Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients



Lattice Type Paint Kits Steel Tower Used For Communication 0



Tower Design

Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete

conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutiny

to deliver what you need.



Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.



Telecom Structure Erection Guide

If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily
