| Place of Origin: | China |
| Brand Name: | Suntech Tower |
| Certification: | ISO, CE |
| Model Number: | Self-Support Telecom Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 Metric Ton/Metric Tons Per Year |
| Product Name: | Self-Support Telecom Tower | Material: | Steel Q345,Q235 |
|---|---|---|---|
| Height: | 10-80M | Surface Treatment: | Hot Dip Galvanized |
| Wind Speed: | 110~160km/h_3 Second Gust | Application: | Telecom Site Construction |
| High Light: | Q345 Telecom Steel Tower,Galvanization Telecom Steel Tower,Self Support Telecom Tower |
||

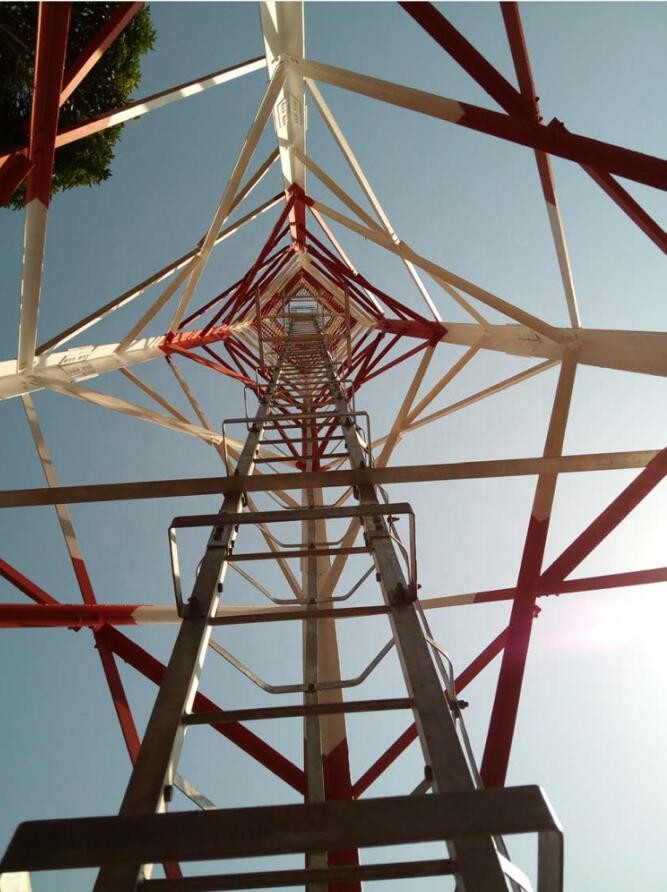

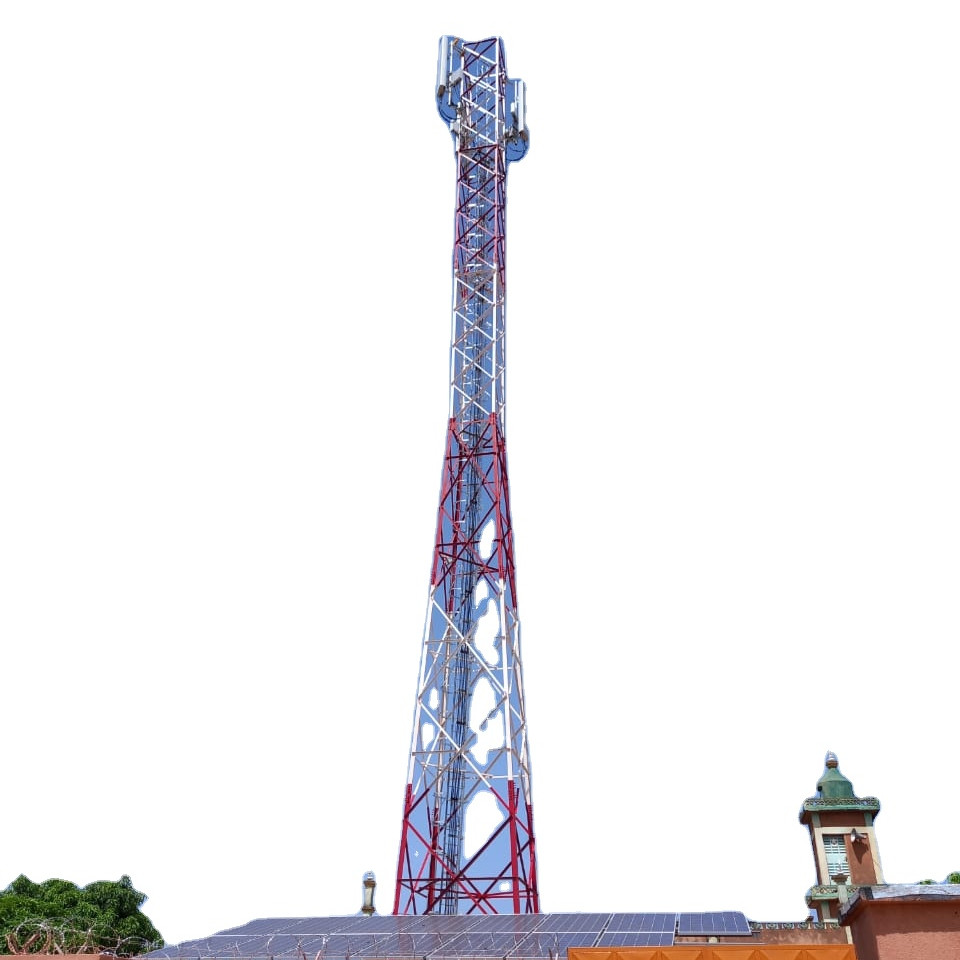

RDS RDU Galvanization Steel Tower Self-Support Telecom Tower
Quick Detail:
Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This
fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.
As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe
capacity issues on their networks. While new technology and better wireless antennas can help, the best solution
is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more
stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles
and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more
aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas
Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds
of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting
,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent
standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |

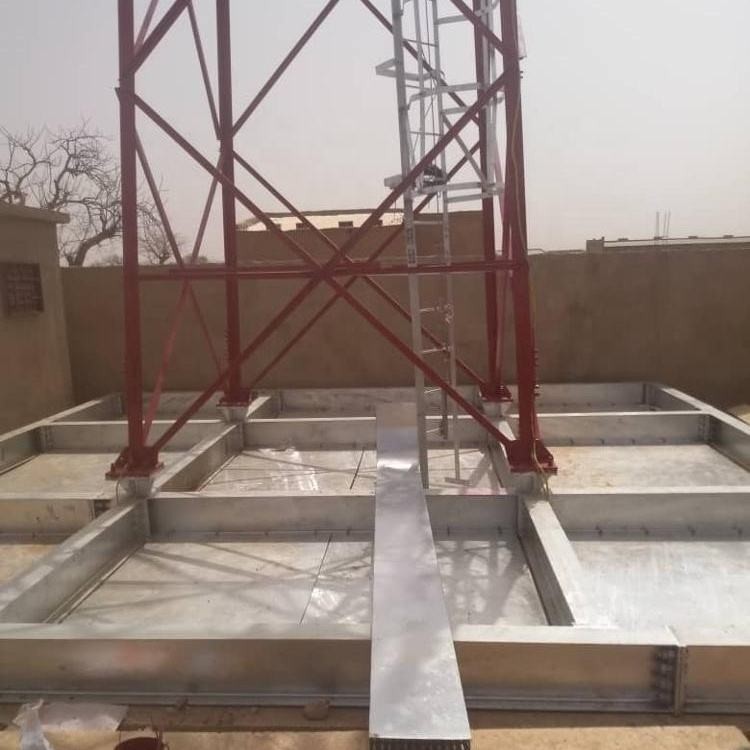

1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
