Monopole Microwave Antenna Radio Tower Galvanized Steel Q345

Monopole Microwave Antenna Radio Tower Galvanized Steel Q345

  • Monopole Microwave Antenna Radio Tower Galvanized Steel Q345
  • Monopole Microwave Antenna Radio Tower Galvanized Steel Q345
  • Monopole Microwave Antenna Radio Tower Galvanized Steel Q345
Monopole Microwave Antenna Radio Tower Galvanized Steel Q345
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Antenna Radio Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest price
Packaging Details: Exported Containers
Delivery Time: 30-35 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 90000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Antenna Radio Tower Material List: Steel Q345 & Q235
Height: 0-100m Surface Treatment: Hot Dip Galvanized
Wind Speed: 110~160km/h_3 Second Gust Usage: Radio Tower
High Light:

Galvanized Steel Monopole Antenna Tower

,

Microwave Antenna Radio Tower

,

Steel Q345 Monopole Antenna Tower

Factory Galvanized Steel Monopole Microwave Antenna Radio Tower



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.



Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

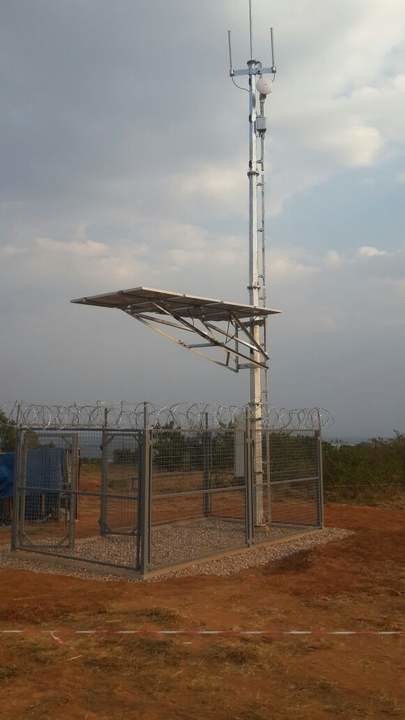

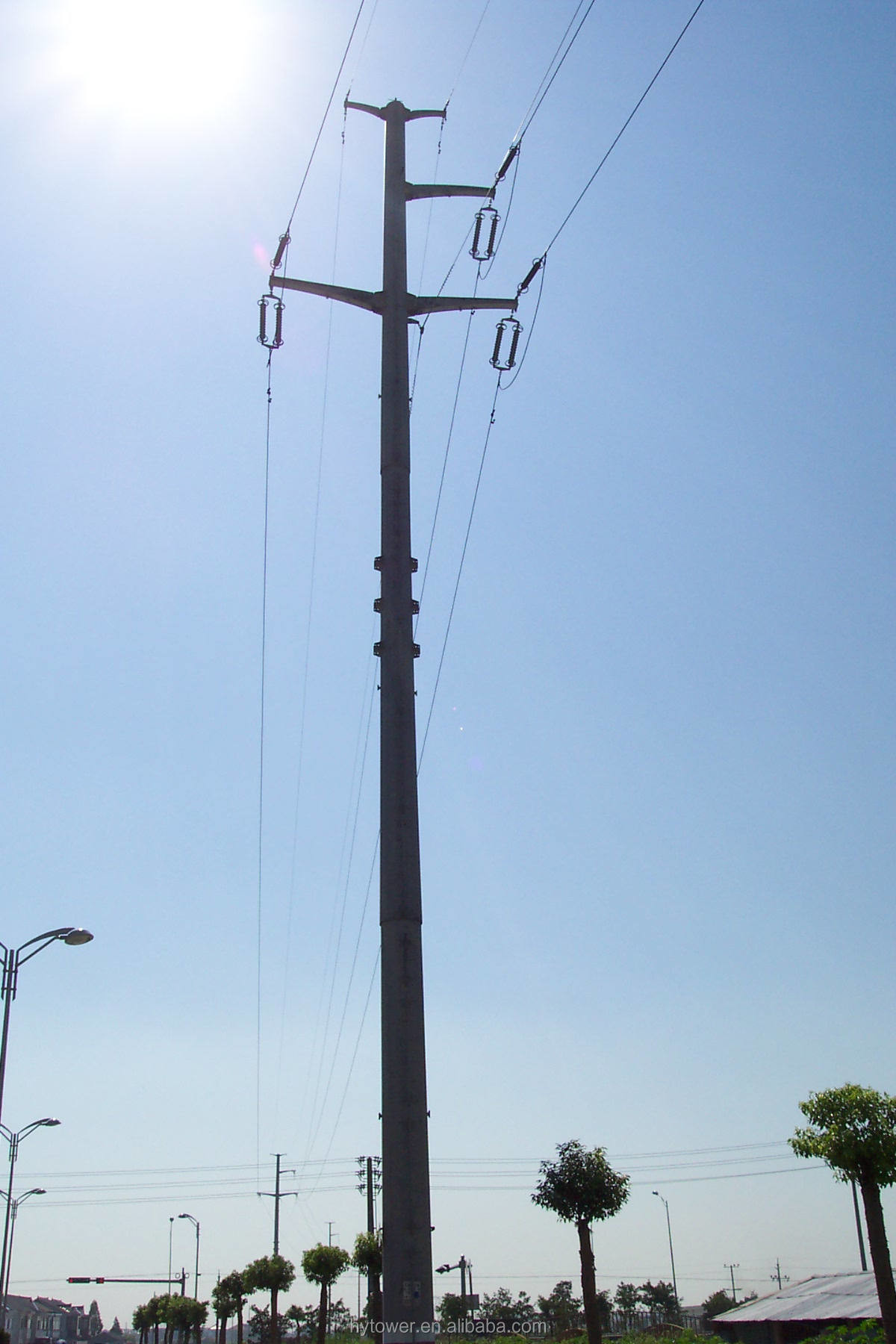

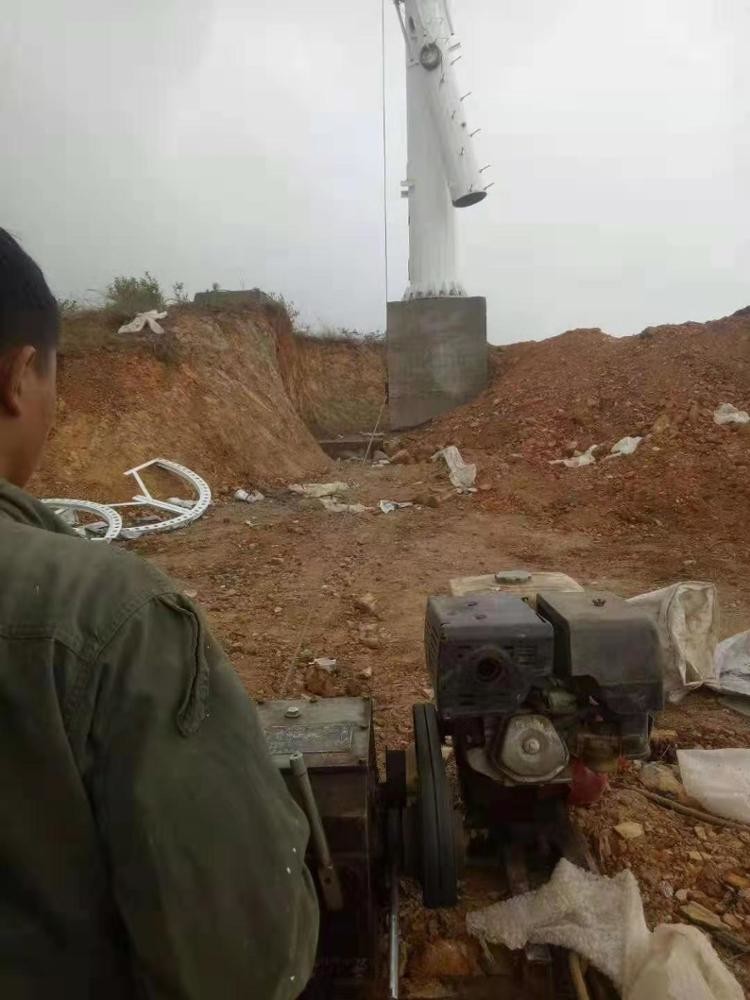

Monopole tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance,

covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the

construction. Tower body adopt more reasonable section, which is connected through high strength

bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.



Guyed Tower

Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.

Guyed tower is a common type of communication tower which is economical and practical. It is lighter and

cheaper than the others. It is very suitable for the geographical wide areas.



Self Supporting Tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the

connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.



Monopole Microwave Antenna Radio Tower Galvanized Steel Q345 0



Transmission Line Steel Tower & Substation Structure- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code

1. Chinese National Standard:
a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line
b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line
2. American Standard:
a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures
b. ACI 318-02 Building Code Requirement for Structure Concrete

2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control

Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality
We treat the quality first and 100% inspection ratio.



Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds

of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting

,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent

standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.



Monopole Microwave Antenna Radio Tower Galvanized Steel Q345 1
