Galvanized Monopole Steel Tower With Aviation Lights Electrical

Galvanized Monopole Steel Tower With Aviation Lights Electrical

  • Galvanized Monopole Steel Tower With Aviation Lights Electrical
  • Galvanized Monopole Steel Tower With Aviation Lights Electrical
Galvanized Monopole Steel Tower With Aviation Lights Electrical
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Telecommunication Paint Towers
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Telecommunication Paint Towers Material List: Steel Q355 & Q245
Height: 0-80m Surface Treatment: Hot Dip Galvanized
Wind Speed: 110~160km/h_3 Second Gust Application: Telecom Tower
High Light:

Galvanized Monopole Steel Tower

,

Aviation Lights Monopole Steel Tower

,

Electrical Monopole Steel Tower

Galvanized Monopole Steel Tower With Aviation Lights Electrical Telecommunication Paint Towers

Quick Detail:
Monopole Tower are one of the least intrusive and easiest communication towers to erect. This
fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.
As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe
capacity issues on their networks. While new technology and better wireless antennas can help, the best solution
is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more
stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles
and concealed monopoles (pine poles, flag poles, palm poles, etc.Requiring smaller footprints and being more
aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.


Transmission Line Steel Tower & Substation Structure- Goods description and major parameters

No.DescriptionDetailed Specification and Major design Parameters
1Design Code

1. Chinese National Standard:
a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line
b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line
2. American Standard:
a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures
b. ACI 318-02 Building Code Requirement for Structure Concrete

2Design SoftwarePLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3Design LoadingAs per requirement and specification by Clients worldwide.
4Load test/destructive testWe can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5Voltage33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6Hot-dip galvanizationISO 1461-2009, ASTM A123
7Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

8Bolts and NutsMainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9Tower TypeAngular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10Tower TypeSuspension Tower, Tension Tower, Dead Tower, Substation Structure
11WarrantyTower structures: 10 years
12Return Period50 Years
13TransportationWe are very close to the biggest port in the world which is our advantage for sea transportation.
14Quality Control

Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality
We treat the quality first and 100% inspection ratio.

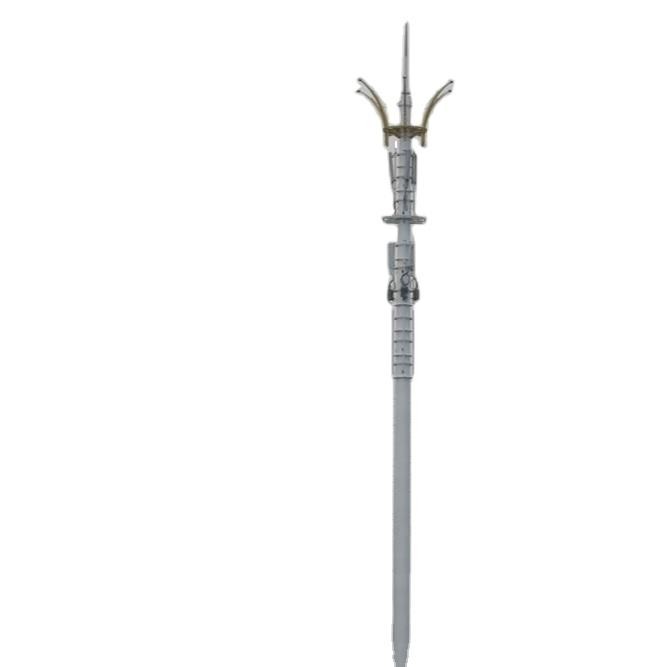

Galvanized Monopole Steel Tower With Aviation Lights Electrical 0


Product Name: 5G Cell Monopole Tower for Telecommunication Industry

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components,

and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission

and transmission.Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles

Cell Phone Radios Monopole TowerContainer bag for Connection Bolts.

Self-Supporting Towers are appropriate for nearly all wireless communication applications. Self-Supporting Towers
are typically three or four sided lattice type structures made from solid rod, pipe, or angle. Self-supporting Towers
are ideal for installations where space requirements are limited.

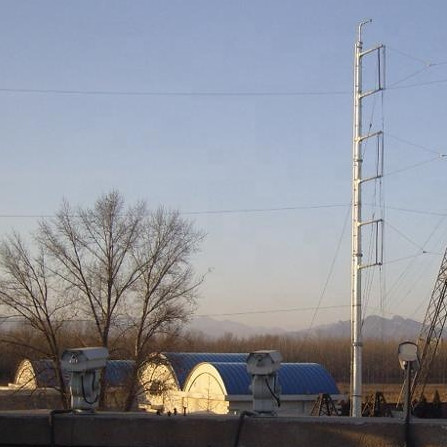

Galvanized Monopole Steel Tower With Aviation Lights Electrical 1
