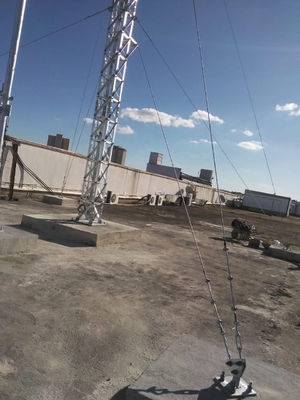

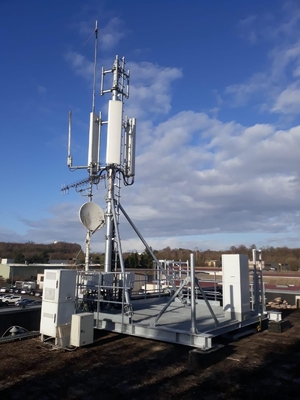

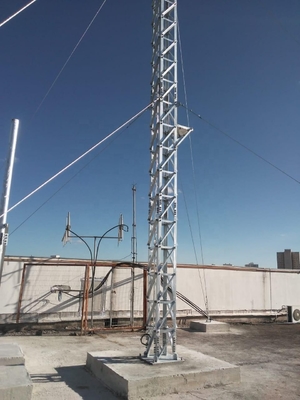

Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories

Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories

  • Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories
  • Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories
  • Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories
Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Roof Top Steel Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product: Roof Top Steel Tower Material List: Steel
Height: 0-100m Surface Treatment: Hot-dip Galvanized And Specific Bark With Branches
Wind Speed: 110~160km/h 3 Second Gust Lifetime: 20-30 Years
High Light:

Q235 Steel Roof Top Tower

,

Hot Dip Galvanized Roof Top Tower

Hot Dip Galvanized Guyed Pole Roof-Top Steel Tower RTT For Telecommunication With Related Accessories



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.

Our group branch company and factory have already engaged in the field of electric power more than 26 years.



Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds

of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting

,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent

standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.



Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories 0



Transmission Line Steel Tower & Substation Structure- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code

1. Chinese National Standard:

a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line

b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line

2. American Standard:

a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures

b. ACI 318-02 Building Code Requirement for Structure Concrete

2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control

Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality

We treat the quality first and 100% inspection ratio.



Hot Dip Galvanized Guyed Pole Roof Top Tower Q235 Steel With Related Accessories 1
