Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile

Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile

  • Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile
  • Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile
Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Telecom Mobile Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product: Tubular Telecom Mobile Tower Material List: Steel Q345,etc
Height: 0-100m Surface Treatment: Hot-dip Galvanized
Wind Speed: 110~160km/h 3 Second Gust Usage: Transmission Line Tower
High Light:

Steel Q345 Tubular Tower

,

Palm Tree Tubular Antenna Tower

,

Pine Tree Tubular Tower

Telecommunication Steel Tower Pine Plam Tree Tubular Telecom Mobile Tower



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and

other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,

ultrashort wave, wireless network signal transmission and transmission.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa.

Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs

and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close

scrutinyto deliver what you need.



Tower Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.



Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile 0



Telecommunication Tower- Goods description and major parameters
No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years

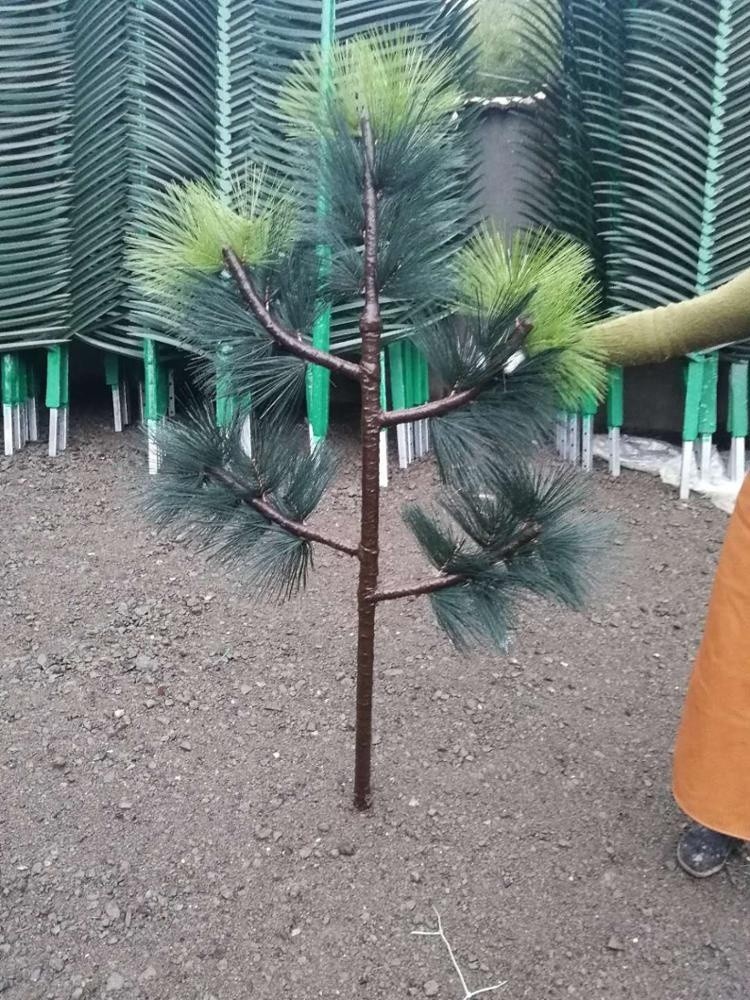

2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients



Our Products Ranges,



Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



Telecommunication Pine Palm Tree Steel Q345 Tubular Tower Mobile 1



With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity

of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which

service for the signal transmission industry development of the world.We have the complete production line

and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the

electric power poles everyday. A quick production period and delivery schedule ensured our client have more

obvious advantage in their market.

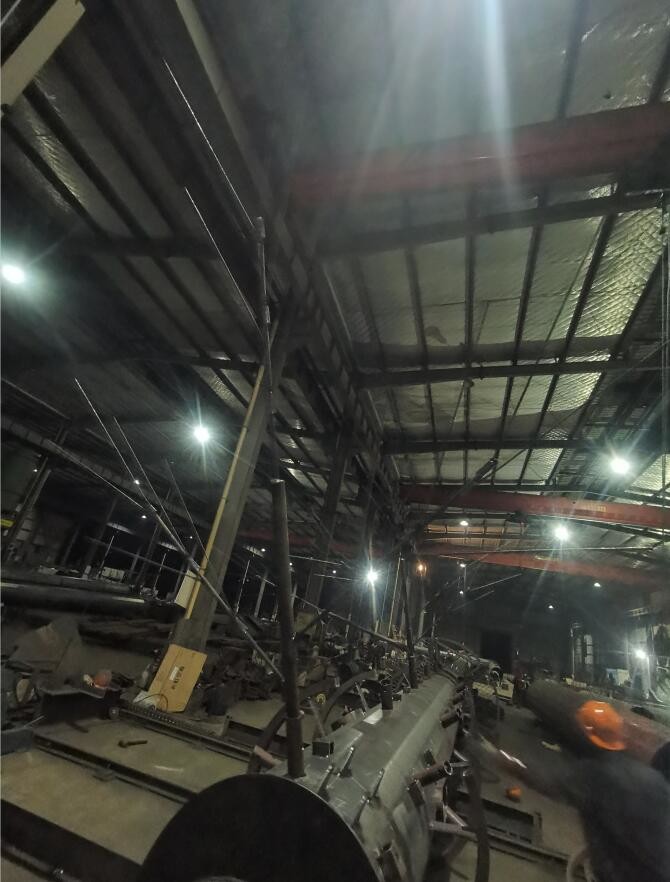

Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.
