Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized

Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized

  • Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized
  • Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized
Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized
Product Details:
Place of Origin: China
Brand Name: Suntech Tower
Certification: ISO, CE
Model Number: Palm Tree Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotitation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Name: Telecommunication Steel Tower Surface Treatment: Hot-dip Galvanized And Specific Bark With Branches
Wind Speed: 110~160km/h_3 Second Gust Material List: Q235B & Q355B Equivalent To A36/S235JR & Gr50/S355JR
Height: 0m~150m Lifetime: 20-30 Years
High Light:

Palm Tree Steel Monopole Tower

,

Hot Dip Galvanized Steel Monopole Tower

,

Q235B Steel Monopole Tower

Telecommunication Palm Tree Steel Monopole Tower For Telecommunicaiton With Hot Dip Galvanized And Related Accessories

Telecommunication Palm Tree Steel Monopole Tower For Telecommunicaiton With Related Accessories



Production Process

 Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical   specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical   documents from our client.



We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.



Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized 0



Telecommunication Tower- Goods description and major parameters
No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients



Our Services

Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project

management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide

fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries

Association,China Standard, American National Standards Institute, Uniform Building Code, and others).

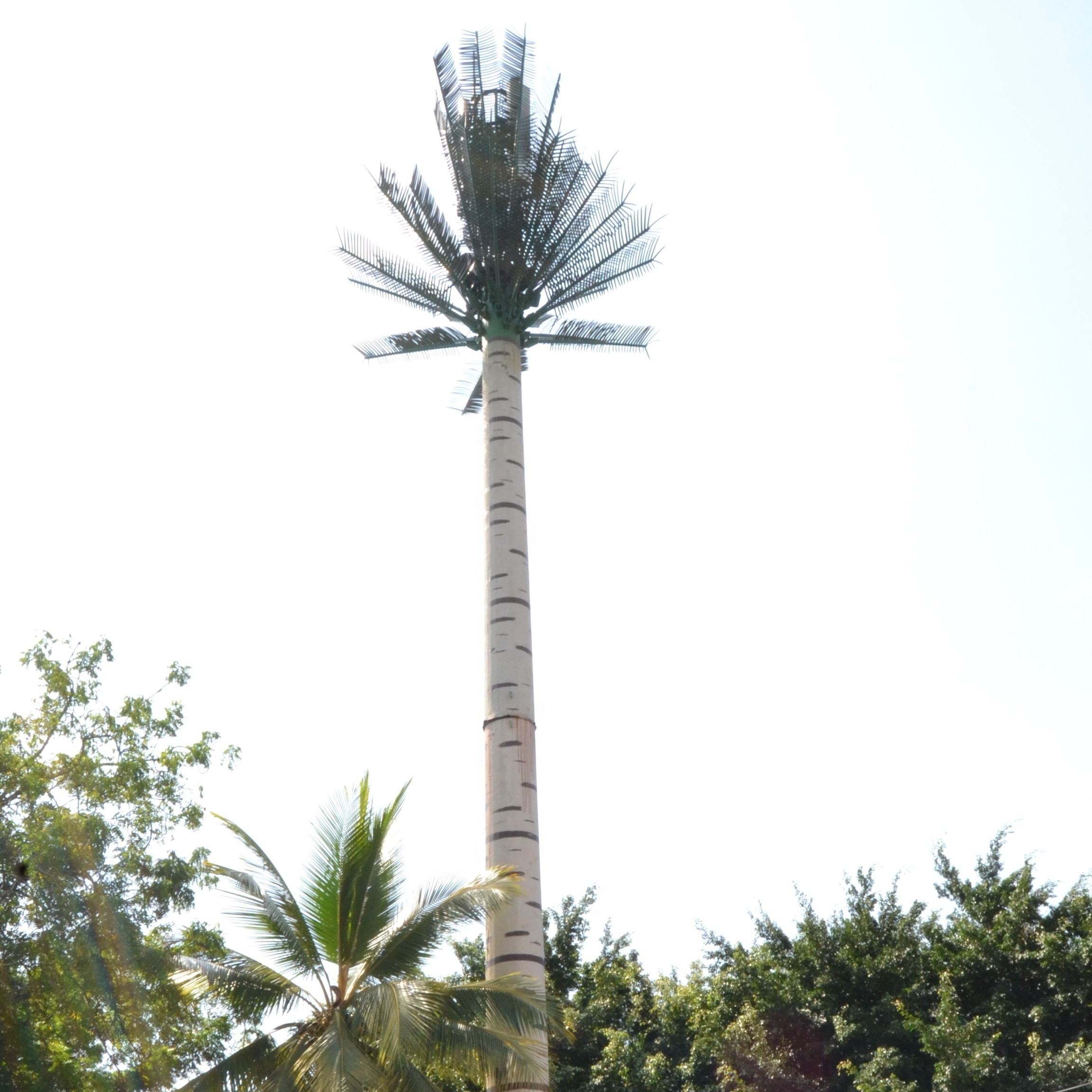

Telecommunication Palm Tree Steel Monopole Tower Hot Dip Galvanized 1



Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians

to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit

our company anytime.
