Wireless Communication Towers For Electricity Gsm Rooftop Telecom

Wireless Communication Towers For Electricity Gsm Rooftop Telecom

  • Wireless Communication Towers For Electricity Gsm Rooftop Telecom
  • Wireless Communication Towers For Electricity Gsm Rooftop Telecom
Wireless Communication Towers For Electricity Gsm Rooftop Telecom
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Rooftop Telecommunication Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Sets Per Year
Contact Now
Detailed Product Description
Name: GSM Rooftop Telecommunication Tower Material: Steel Q355/Q255
Usage: Construction Site Application: Transmission Line Tower
Basic Wind Speed: 60~120km/h_3 Second Gust Lifetime: 25-30 Years
Steel Grade: 1. High Strength Low Alloy Structural Steel: Q420B Which Is Equivalent With ASTM Gr60 2. High Strength Low Alloy Structural Steels: Q345B Which Is Equivalent With ASTM Gr50 Or S355JR 3. Carbon Structural Steel: Q235B Which Is Equivalent With ASTM A36 Or S2 Bolts And Nuts: Mainly ISO 898 Grade 6.8 And 8.8 Bolts
High Light:

Rooftop Wireless Communication Towers

,

Steel Q355 Wireless Communication Towers

,

Rooftop Telecom Antenna Tower

Antenna Tower For Electricity Gsm Rooftop Telecom Wireless Communication Towers

Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



  • Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



  • Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.



Production Process

Here is fabrication process for our transmission tower; however, both parties must discuss all drawings and confirm all shop drawings, technical specification, and which standard to conform. Before mass production, we must received all signed approved shop drawings and technical documents from our client.



Monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.

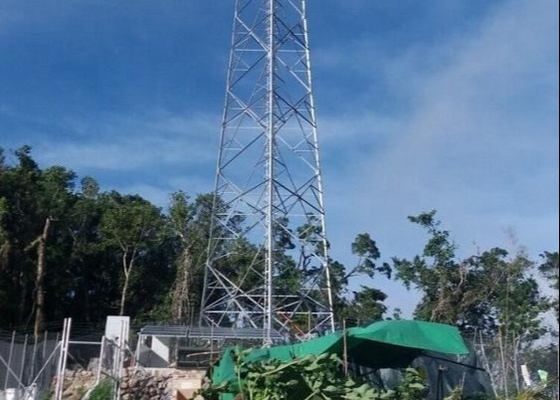

There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.



Detailed Product description as follows :

1. Circle /Polygonal

2. Slip joint/Flange Joint

3. Hot Dip Galvanization (ASTM123)

4. ISO9001 / ISO14001 certificate

5. Slip joints result in easy field assembly and erection

6. Painting Optional: according to customer's requirements

7. Design standard: TIA/EIA-222-G/F

8. Design software: MS TOWER





Products Features:

Available Height: 10m-60M

Wind Pressure: 50KM/H-280 KM/H

Material:main shaft : Q345B/S355JR/ASTM572;Spare parts:Q235B/S235JR/ASTM A36

Anchor bolts:grade 8.8 hot-dipped zinc galvanization

Zinc thickness: minimum 100um for main structure

Vivid appearance,less space,easy to install

Structure: Slip joint/Flange Joint

Lifetime: main shaft and steel parts more than 30 years

Delivery Lead Time: 35 Days after we receive deposit or LC

Antenna Loading Quantity Range:3-18 PCS

Microwave Dish loading Quantity Range :3-18 PCS

Working &Resting Platform Quantity Range:1-3 PCS

Concealed mounts available

Cable and Ladder: can be assembled by customer's request

Typically assembled and erected within a matter of hours

May be fitted with various combinations of feedline entry, feedline exit, and personal access ports

Cable line:supported on internal J-hooks

Earthing Cable and earthing bar : according to customer's request,generally our offer not including this part

Complete line of antenna mounts and accessories available

Provided with step bolts and cable-type safety climb system

Normal camouflaged pine tree tower including : lightning rod ,antenna support ,microwave suppport ,platform ,main section shaft,connection bolts ,anchor bolts ,templates ,internal/external ladder ,cable tray and etc

Aviation light: we can make it if customer request



No. Description Detailed Specification and Major design Parameters
1 Design Code 1. Chinese National Standard:
a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line
b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line
2. American Standard:
a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures
b. ACI 318-02 Building Code Requirement for Structure Concrete
2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality
We treat the quality first and 100% inspection ratio.
