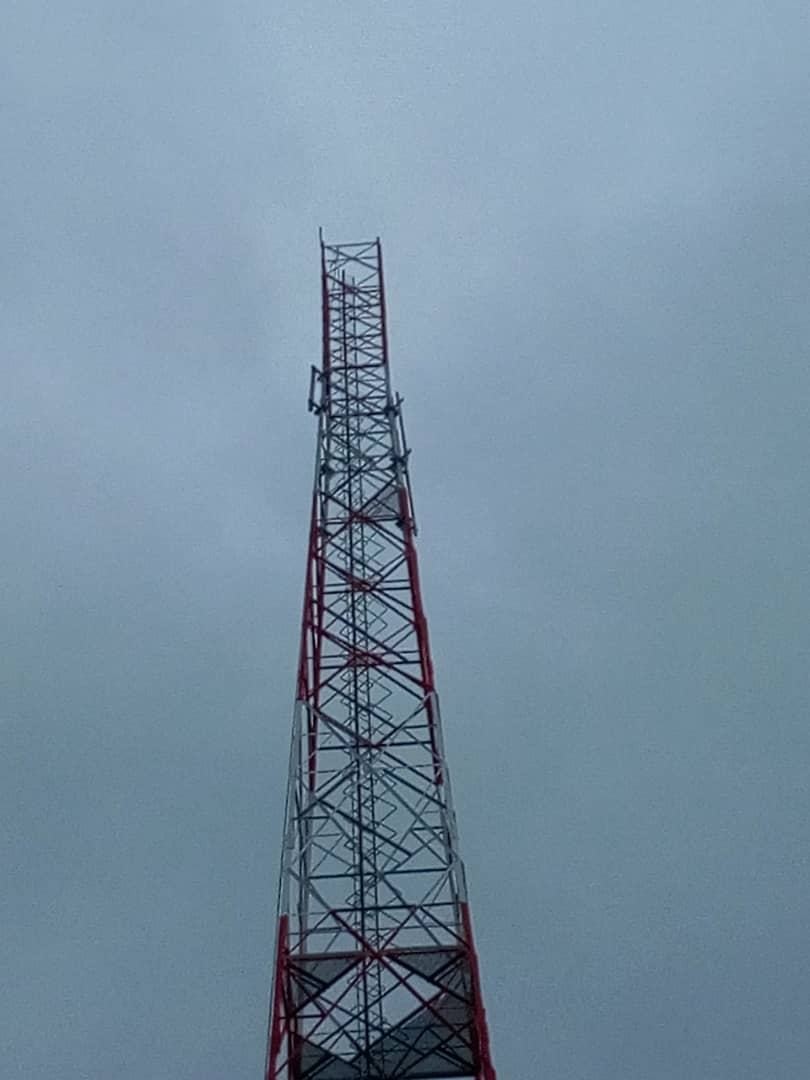

86um 90M Angle Telecom Steel Tower Angular 3 Leg Pole Electricity

86um 90M Angle Telecom Steel Tower Angular 3 Leg Pole Electricity

  • 86um 90M Angle Telecom Steel Tower Angular 3 Leg Pole Electricity
  • 86um 90M Angle Telecom Steel Tower Angular 3 Leg Pole Electricity
86um 90M Angle Telecom Steel Tower Angular 3 Leg Pole Electricity
Product Details:
Place of Origin: China,ningbo
Brand Name: Suntech
Certification: ISO
Model Number: Telecommunication Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Electricity Steel Tower Usage: Angular Telecom Tower
Material: Q235B & Q355B Equivalent To A36/S235JR & Gr50/S355JR Surface Treatment: Hot Dip Galvanised
Application: Site Construction Wind Speed: 110KM/H
Load Test/destructive Test: We Can Arrange It By Government Authority If It Is Necessary And The Cost Of Such Kind Of Test Is Separately From The Tower Pricing. Steel Grade: 1. High Strength Low Alloy Structural Steel: Q420B Which Is Equivalent With ASTM Gr60 2. High Strength Low Alloy Structural Steels: Q355B Which Is Equivalent With ASTM Gr50 Or S355JR 3. Carbon Structural Steel: Q235B Which Is Equivalent With ASTM A36 Or S2
High Light:

Hot Dip Galvanised Telecommunication Steel Tower

,

Telecom Steel Tower Q345B

,

3 Leg Telecom Steel Tower

86um 90M Angle Steel Tower Telecom Angular 3 Leg Pole Electricity

Telecom Angular 3 Leg Pole Electricity Angle Steel Tower



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,

and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing

worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can

save land resources and costs, and is especially suitable for construction in cities.



Quick Detail:

4 legged square telecom lattice angular tower feature:

Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base

station; simple structure, easy processing, convenient for factory production. Generally high tower type,

suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.

Applicable to rural and suburban area which is open, lower area on the appearance requirements.



Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on

a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for

standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped

with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,

lightning protection kit and more. All of the accessories can be installed at any desired height and orientation

according to customer Specification.



Product name Telecom Angular Tower
Place of Origin China
Type Telecommunication Tower
Brand Name Suntech
Sertification ISO9001
Material Q345B or Q235B
Height 10-90M
Wind speed 30m/s
Surface treatment Hot dip galvanized, thickness is no less than 86um
Lifetime More than 30years
