110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure

110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure

  • 110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure
  • 110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure
110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO,SE
Model Number: Telecommunication Tower Structure
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Telecommunication Tower Structure Material: Steel Q355/Q255
Usage: Power Line Transmission Wind Speed: 115KM/H
Surface: Hot Dip Galvanised Lifetime: 20-35 Years
Return Period: 55 Years Voltage: 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
Hot-dip Galvanization: ISO 1461 2009, ASTM A123 Foundation: 50KPa, 100KPa, 150KPa Soil Bearing Capacity Mainly.
High Light:

Hot Dip Galvanised Telecom Steel Tower

,

Radar Telecom Steel Tower

,

Steel Q355 Telecommunication Tower

110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure

Galvanized Angular Steel Radar Telecommunication Tower Structure



Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.



Self Supporting Tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the

connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.



Guyed Tower

Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.

Guyed tower is a common type of communication tower which is economical and practical. It is lighter and

cheaper than the others. It is very suitable for the geographical wide areas.



Design and Detailing

We have broad experience with virtually every make and model of tower used in the South America and Africa.

Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs

and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close

scrutinyto deliver what you need.



Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.



Tower Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.



Structure Analysis and Calculation

We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection

of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is

overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower.



No. Description Detailed Specification and Major design Parameters
1 Design Code 1. Chinese National Standard:
a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line
b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line
2. American Standard:
a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures
b. ACI 318-02 Building Code Requirement for Structure Concrete
2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality
We treat the quality first and 100% inspection ratio.



110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure 0

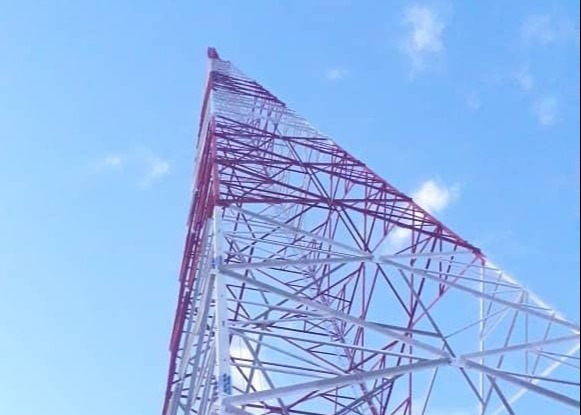

110KV Antenna Telecommunication Tower Galvanized Angular Steel Radar Structure 1
