Place of Origin: | China |
Brand Name: | Suntech |
Certification: | ISO, CE |
Model Number: | WiFi Mobile TV Tower |
Minimum Order Quantity: | 1 Tower |
---|---|
Price: | Get the newest prices |
Packaging Details: | Exported Containers |
Delivery Time: | 35 days after deposit |
Payment Terms: | L/C, T/T, MoneyGram |
Supply Ability: | 3500 Sets Per Year |
Name: | WiFi Mobile TV Tower | Material List: | ASTM A36,ASTM A572 GR65, GR50, Etc. |
---|---|---|---|
Application: | Site Project | Wind Speed: | 110KM/H |
Usage: | Steel Tower | Surface Treatment: | Galvanised |
High Light: | Galvanized Steel Monopole Tower,Triangle Steel Monopole Tower,Telecommunication Steel Tower 110KM/H |

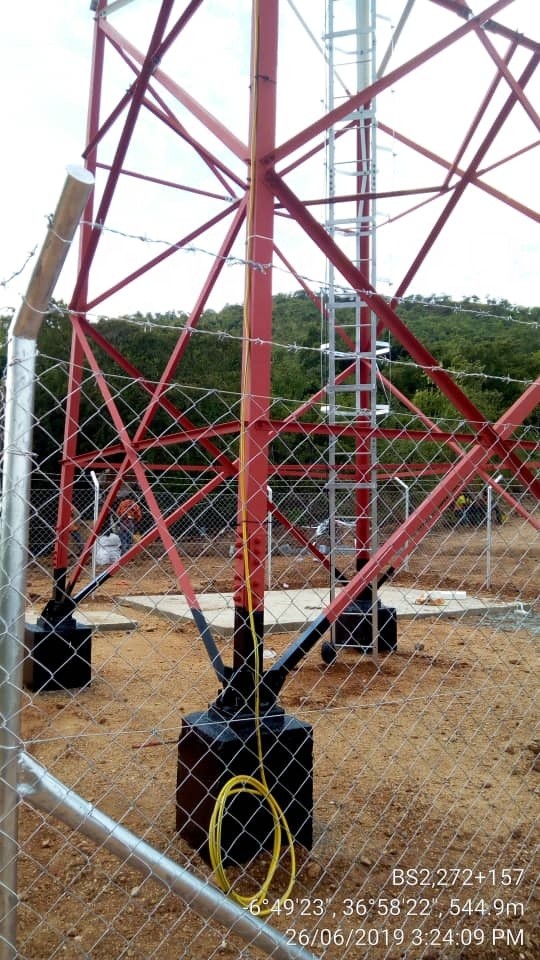

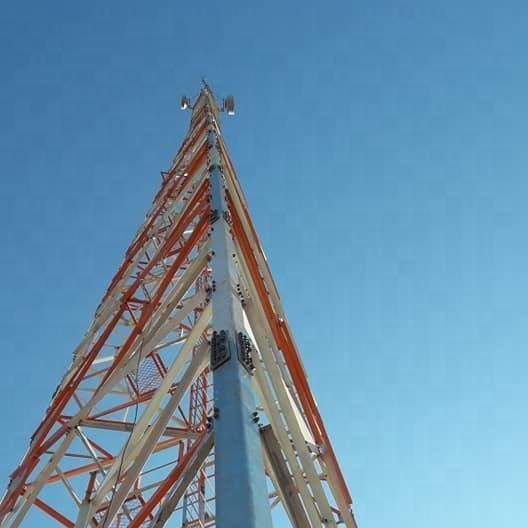

WiFi Mobile TV Tower Galvanized Self-Supporting Steel Triangle Steel Monopole Tower
Galvanized Self-Supporting Steel Triangle Steel WiFi Mobile TV Tower
Telecom Structure Erection Guide
If you have any questions on tower structure erection ,pls feel free to contact us ,we can guide you how to erect the tower structure step by step ,we also can make the tower structure erection Assembly drawing and assembly instruction .so it will help you out on tower Structure erection easily.
Tower Fabrication
As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,
camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive
prices. Let us provide you a quotation.
Structure Analysis and Calculation
We provides exceptional structural analysis services. A structural analysis goes deeper than just a visual inspection. The visual inspection
of a tower will show the physical condition of a tower such as rusting, cracking of welds, bent members, etc. but it will not show whether a tower is
overstressed by the loads it is supporting. A structural analysis uses mathematical engineering formulas for stress, along with known behavior of different materials under stress, to determine if any one point on the tower is stressed beyond safe limits. By using state-of-the-art computer software, we can create a mathematical model of any steel structure, and quickly determine the stresses at hundreds of points on the tower
Steel tubular tower is a traditional superior product of our factory. Especially the self developed multi-station flange processing system has significantly improved the precision of geometric tolerance for each work piece. Thanks to such a process, the 190m high Huangpu large crossing steel tube tower was appraised as a national quality project. Our factory is supplied with advanced equipment such as 2400-ton bending machines, line cutting machines, stitch welding machines, and CNC plasma cutting machines. With these equipment, it is capable to produce equal-diameter tubes and cone-shaped tubes in polygon and round shape. The CNC stitch welding machine can realize one-time moulding of stitch welding for steel tube and the welding line can achieve double-size moulding through single welding. Our factory has been highly affirmed for its production capacity and product quality.
Steel tubular tower members withstand low wind pressure, large cross-section bending rigidity, simple structure, and clear force transmission, which can give full play to the material's bearing performance. On the one hand, it can reduce the weight of the tower and reduce the foundation force; on the other hand, it can help to increase extremes. Ability to resist natural disasters under conditions. When the strength and stability calculation requirements are met, the use of a steel pipe tower with a relatively small wind pressure body shape coefficient can significantly reduce the wind load on the tower body.
Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project
management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide
fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries
Association,China Standard, American National Standards Institute, Uniform Building Code, and others).
Height | From 10M-100M or according to client’s requirement | |||||
Suit for | Electric Power Transmission and Distribution | |||||
Shape | Polygonal or Conical | |||||
Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
Q345B/A572,Yeild Strength≥345MPa | ||||||
As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
Power Capacity | 10kV to 500kV | |||||
Tolerance of the dimension | According to client’s requirement | |||||
Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
Joint of Poles | Slip joint, flanged connected | |||||
Standard | ISO9001:2008 | |||||
Length of per section | Within 13M once forming | |||||
Welding Standard | AWS(American Welding Society)D 1.1 | |||||
Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
Packages | Packing with plastic paper or according to client’s requirement | |||||
Life Period | More than 30 years, it is according to installing environment |
Contact Person: Peter
Tel: 86-13958364836
