Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories

Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories

  • Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories
  • Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories
Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Telecom Lattice Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest prices
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets Per Year
Contact Now
Detailed Product Description
Product Name: 4 Legs Angular Telecommunication Steel Tower Material: Steel Q235B/Q345B/Q420
Application: Mobile Telecom Tower Wind Speed: 120KM/H
Lifetime: 20-30 Years Surface Treatment: Galvanised
High Light:

q420 telecommunication steel tower

,

hdg telecommunication steel tower

,

hot dip galvanized tower for telecommunication

4 Legs Angular Telecommunication Steel Tower Structure With Hot Dip Galvanized And Accessories



Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged

in the field of electric power more than 26 years.

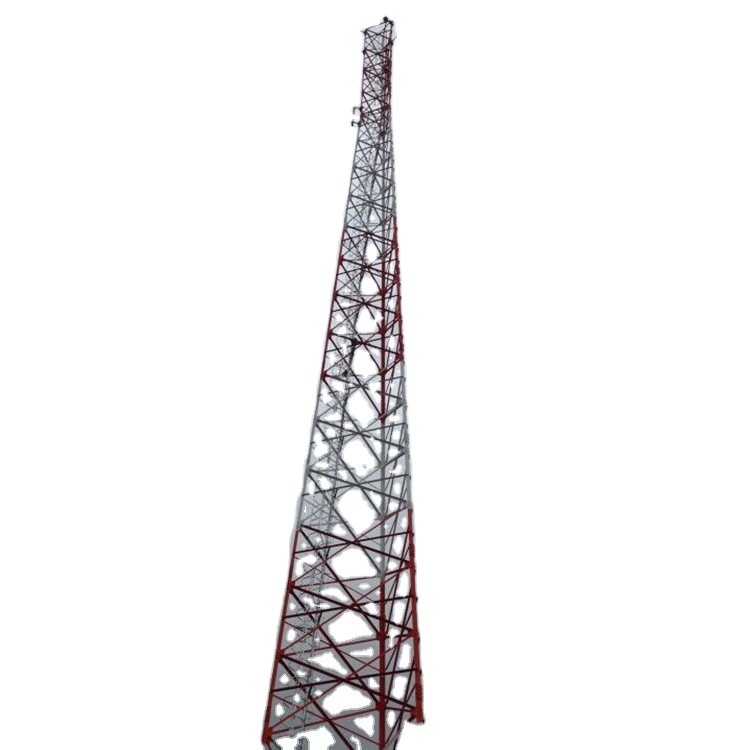

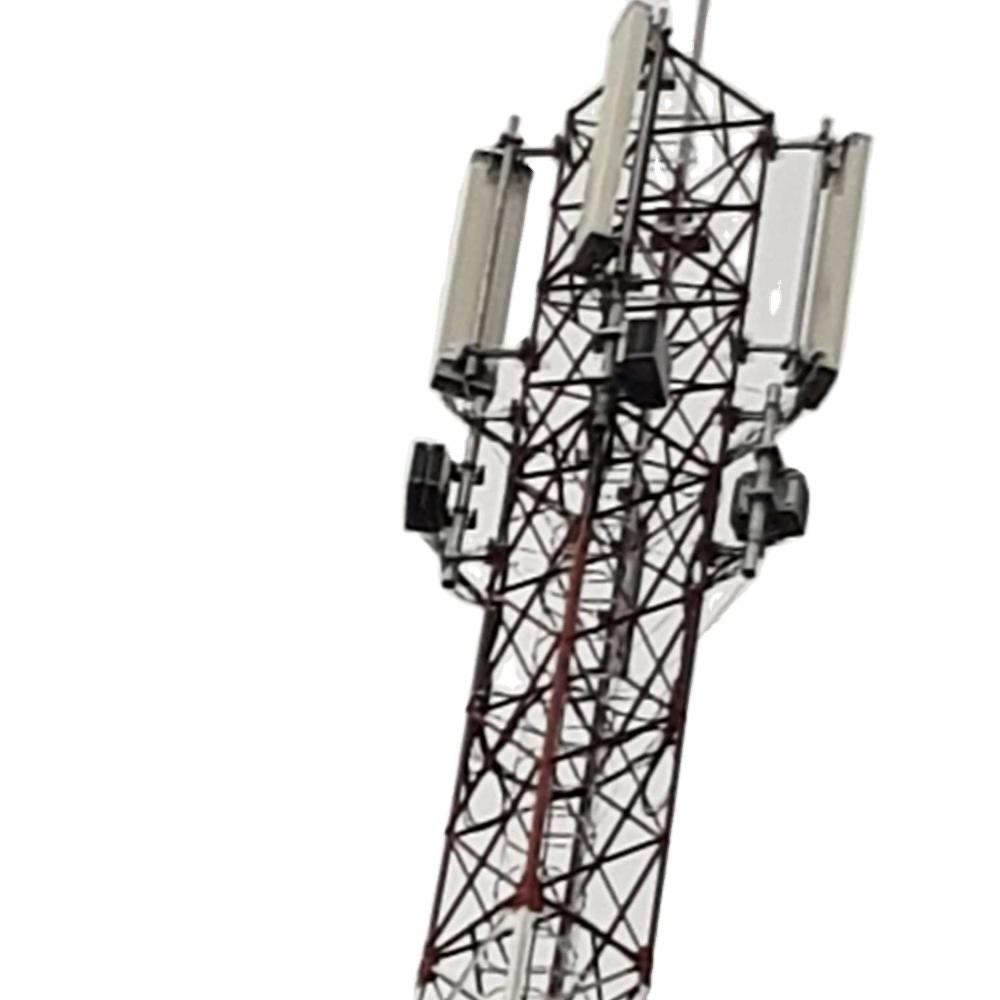

4 legged square telecom lattice angular tower feature:

Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base

station; simple structure, easy processing, convenient for factory production. Generally high tower type,

suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient.

Applicable to rural and suburban area which is open, lower area on the appearance requirements.



Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on

a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for

standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped

with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,

lightning protection kit and more. All of the accessories can be installed at any desired height and orientation

according to customer Specification.



1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.



2. Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.



3. Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.



And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.



Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories 0



For more products

Monopole tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance,

covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the

construction. Tower body adopt more reasonable section, which is connected through high strength

bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.



Guyed Tower

Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.

Guyed tower is a common type of communication tower which is economical and practical. It is lighter and

cheaper than the others. It is very suitable for the geographical wide areas.



Self Supporting Tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the

connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.



Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.



Telecommunication Tower- Goods description and major parameters
No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type 1. 3 Leg Self supported Angular Towers
2. 3 Leg Self supported Tubular Towers
3. 4 Leg Self supported Angular Towers
4. 4 Leg Self supported Tubular Towers
5. Guyed Mast
6. Monopole Tower
7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree
8. RDS Tower: Rapid Deploy Site/Tower
9. Rooftop Towers
10. Smart Poles
10 Warranty 1. Tower structures: 10 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White
2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. ACDB as per specified by clients
6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
7. Fall arrest system: GB and CE certificate fall arrest system.
8. Optical Fiber Cable: as per specified by client
9. Generator: as per specified by client
10. Canopy and Generator Cage: as per specified by clients



Q420 Telecommunication Steel Tower 4 Legs Angular Hot Dip Galvanized And Accessories 1
