Name: Heavy-Duty Cable Turntable for Power Transmission & Distribution
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: HZT1250
Price: 285,715.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Cable Turntable

Item No.: 21551-21553

Model: HTZ1250-HTZ2500

Applicable Drum Diameter: 500-2500mm

Maximum Weight Of Drum: 500KG-1500KG

Dimension: 470x172x105-900x230x130mm

Single Piece Weight: 17-73.5KG

Warranty: 1 Year

Highlight:

4 legs telecommunication steel tower

fall arrest telecommunication steel tower

self supporting tower for telecommunication

Basic Infomation

Place of Origin: China

Brand Name: Suntech

Certification: ISO

Model Number: HZT1250

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 30-35 days after deposit

Payment Terms: L/C,T/T

Supply Ability: 2000 PCS/Month

Gallery

Heavy-Duty Cable Turntable for Power Transmission & Distribution

Product Description

Heavy-Duty Cable Turntable for Power Transmission & Distributio

The Cable Turntable is an indispensable piece of equipment in modern power infrastructure projects, designed to safely handle, deploy, and retrieve heavy cables during installation, maintenance, or upgrades of electrical networks. Engineered for both high-voltage transmission lines and substation cable laying, this robust system ensures smooth, tangle-free cable management while significantly reducing labor intensity and operational risks.

Critical Applications
Transmission Line Projects: Unspooling ACSR/AAC conductors during overhead line stringing.

Substation Installations: Deploying HV busbar cables or grounding grids in confined spaces.

Renewable Energy: Handling wind turbine export cables (up to 66kV) or solar farm DC collections.

Tunnel/Underground Laying: Feeding cables through conduits with precise tension control.

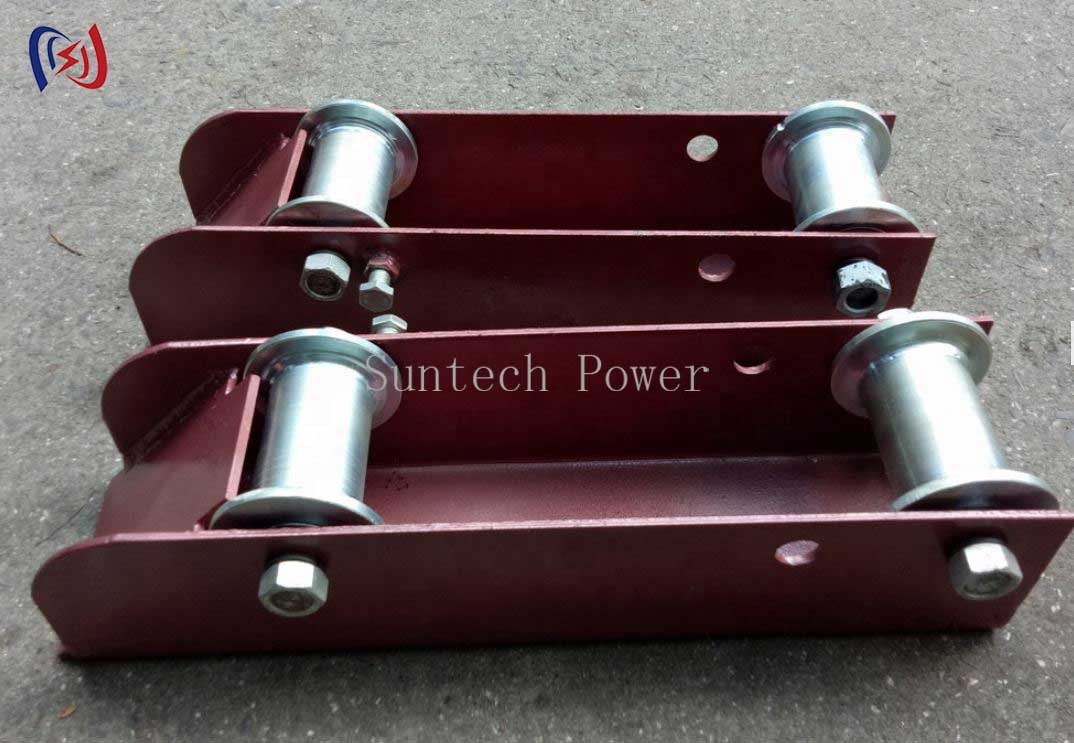

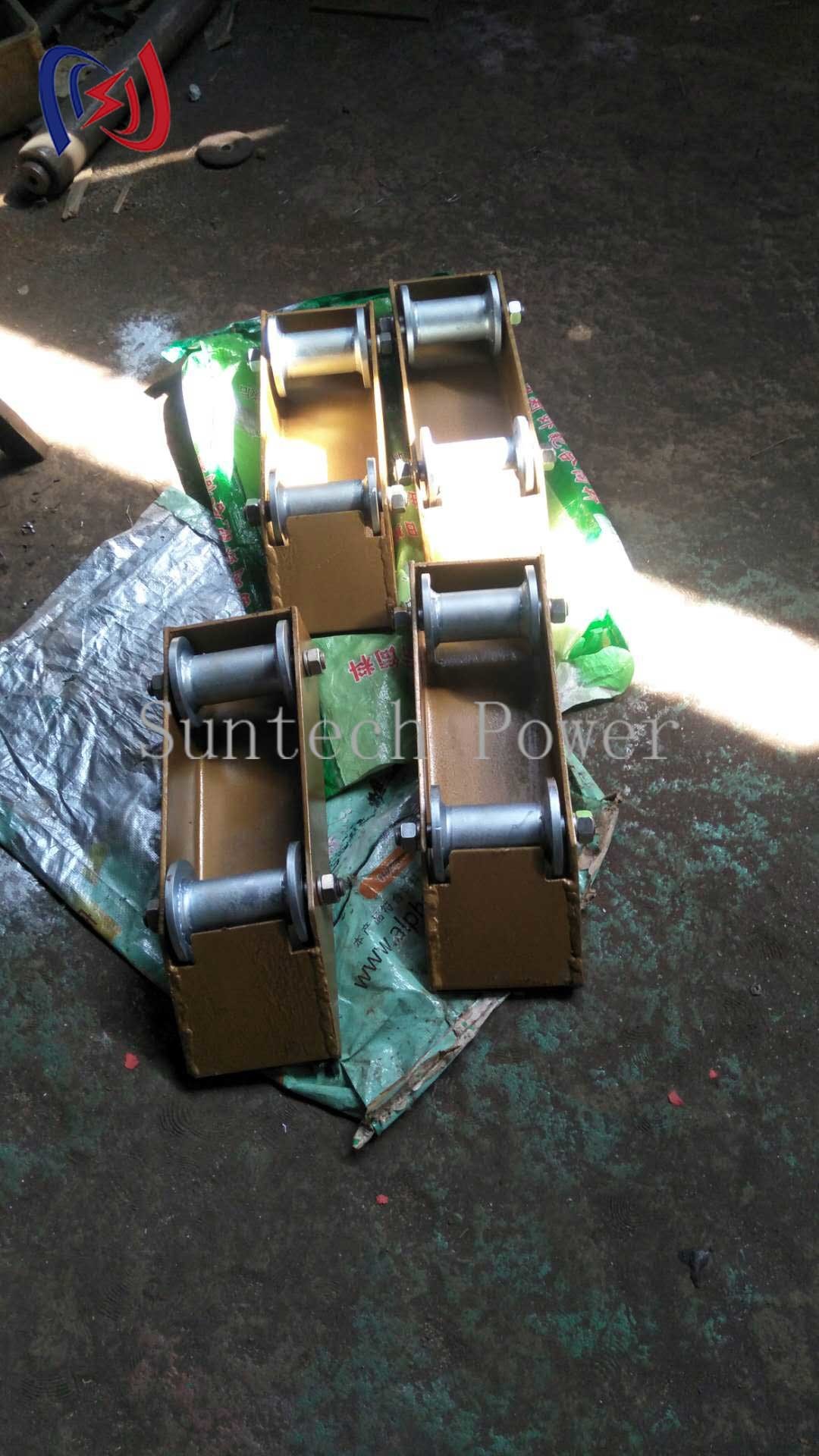

Cable Reel Rotator Platform

servesas cable reel spread fixture .apply to electric power ,communication andrelatively industry to lay cable .the product consisting of turntable ,roller,axis of roller and lock fixture ,mounte.

Using method:

1. Mountedon two roller base on the drum diameter.

2 .Lockthe roller on the slope.

3. Adjustroller base on the drum diameter.

4. Slopesthe drum rim up the turntable along its slants.

5. Relievethe locking roller ,then you can turn the drum .

Technical Data

Item number	21553	21552	21551
Mode	HZT1250	HZT1800	HZT2500
Appllicable drum diameter (mm)	φ500～1250	φ500～1800	φ500～2500
Maximum weight of drum(kg)	500	1500	1500
Dimension(mm)	470×172×105	650×150×145	900×230×130
Single piece weight (kg)	17	40	73.5

Heavy-Duty Cable Turntable for Power Transmission & Distribution 0
