| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Monopole Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Get the newest prices |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Sets Per Year |
| Model Name: | Monopole Tower | Material: | Steel JPole |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanised | Usage: | Construction Tower |
| Height: | Customized | Wind Speed: | 120KM/H |
| High Light: | hdg telecommunication steel tower,120km/h telecommunication steel tower,hdg tubular steel tower |
||

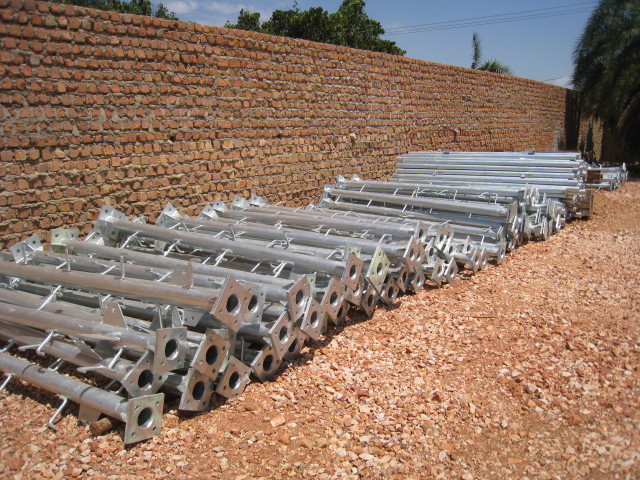

Monopole Self Supporting Tower Telecommunication / Telecom/GSM Antenna Tubular Pole Steel Tower
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged
in the field of electric power more than 26 years.
Our main business:
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. |
| 2. Wind speed as per requested by the clients. | ||
| 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. | ||
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR | ||
| 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR | ||
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type | 1. 3 Leg Self supported Angular Towers |
| 2. 3 Leg Self supported Tubular Towers | ||
| 3. 4 Leg Self supported Angular Towers | ||
| 4. 4 Leg Self supported Tubular Towers | ||
| 5. Guyed Mast | ||
| 6. Monopole Tower | ||
| 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree | ||
| 8. RDS Tower: Rapid Deploy Site/Tower | ||

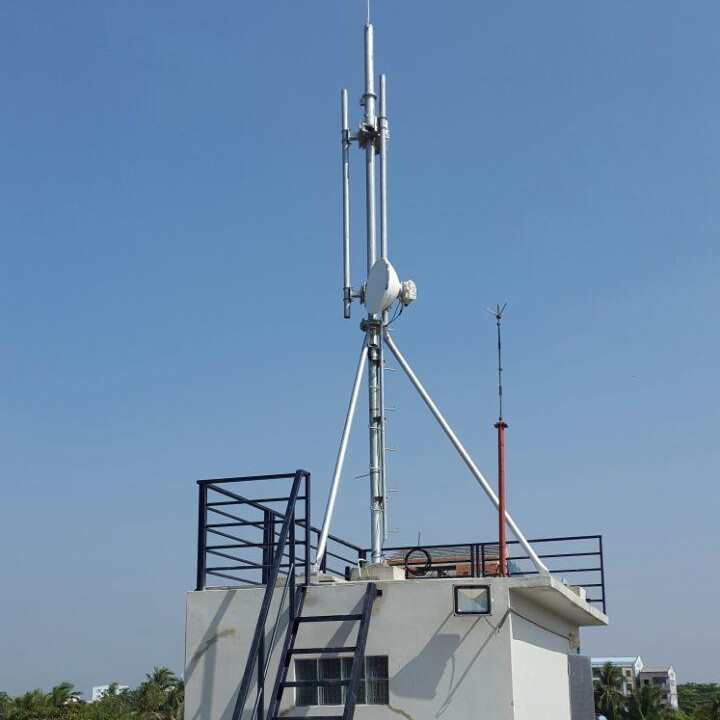

| 9. Rooftop Towers | ||
| 10. Smart Poles | ||
| 10 | Warranty | 1. Tower structures: 10 years |
| 2. Camouflaged towers | ||
| a. Barks: 10 years | ||
| b. Branches and leaves: 3 years | ||
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
| 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light | ||
| 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. | ||
| 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. | ||
| 5. ACDB as per specified by clients | ||
| 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. | ||
| 7. Fall arrest system: GB and CE certificate fall arrest system. | ||
| 8. Optical Fiber Cable: as per specified by client | ||
| 9. Generator: as per specified by client | ||
| 10. Canopy and Generator Cage: as per specified by clients |
Design and Detailing
We have broad experience with virtually every make and model of tower used in the South America and Africa. Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close scrutiny to deliver what you need.
