|Place of Origin:||China|
|Model Number:||Steel Tower|
|Minimum Order Quantity:||1 Tower|
|Packaging Details:||Exported Containers|
|Delivery Time:||30 days after deposit|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||3000 Sets Per Year|
|Name:||Telecommunication Angular Steel Tower||Height:||10-100m|
|Usage:||Telecom Tower||Basic Wind Speed:||110~160km/h_3 Second Gust|
|Lifetime:||20-30 Years||Material:||Steel Q355/Q255|
10meter telecommunication steel tower,
sst telecommunication steel tower,
10meter steel antenna tower

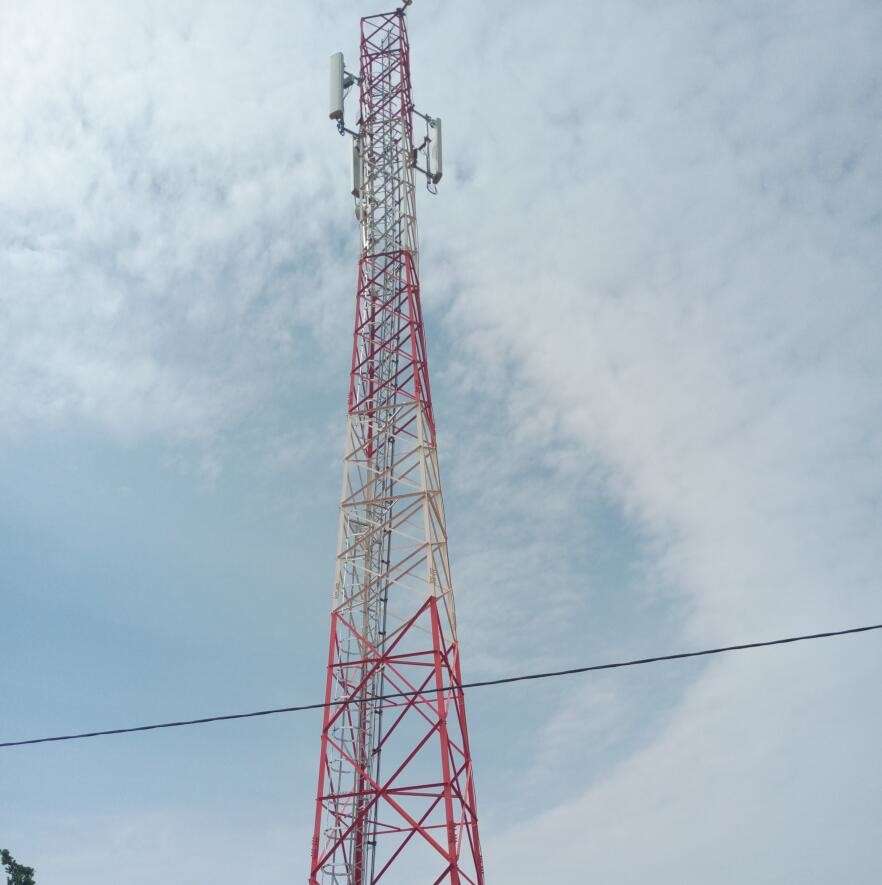

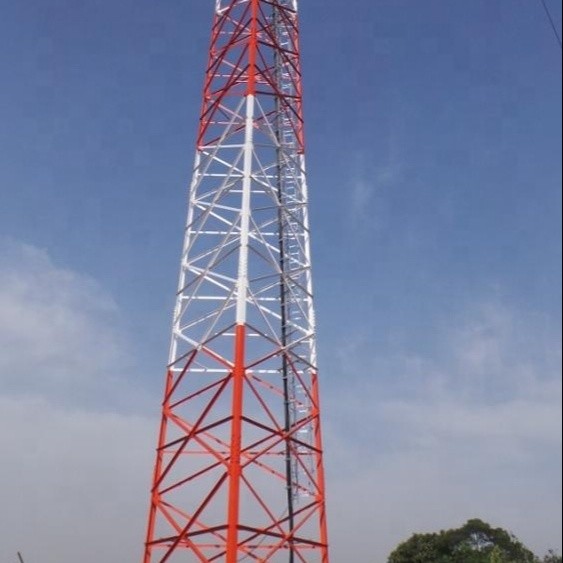

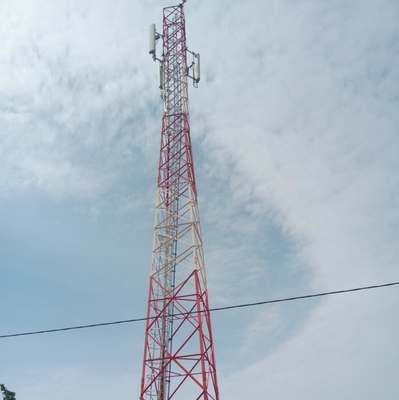

Tower SST Telecommunication Angular Steel Galvanized Tower With Aviation Light
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged
in the field of electric power more than 26 years.
1. Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.

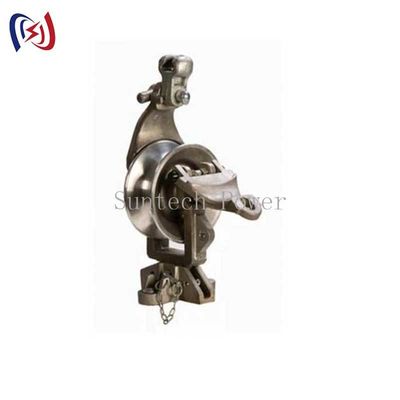

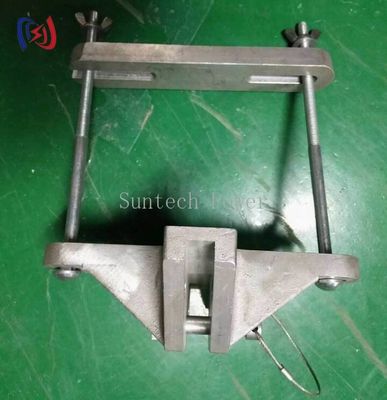

2. Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
3. Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.
Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance,
covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the
construction. Tower body adopt more reasonable section, which is connected through high strength
bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.
Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.
Guyed tower is a common type of communication tower which is economical and practical. It is lighter and
cheaper than the others. It is very suitable for the geographical wide areas.
Self Supporting Tower
Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the
connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
|Telecommunication Tower- Goods description and major parameters|
|No.||Description||Detailed Specification and Major design Parameters|
|1||Design Code||ANSI/TIA222G, European Standard and others|
|2||Design Loading||1. Antenna load area as per specified by Clients worldwide.|
|2. Wind speed as per requested by the clients.|
|3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.|
|5||Hot-dip galvanization||ISO 1461 2009, ASTM A123|
|6||Steel Grade||1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60|
|2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR|
|3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR|
|7||Bolts and Nuts||Mainly ISO 898 grade 6.8 and 8.8 bolts|
|8||Foundation||50KPa, 100KPa, 150KPa soil bearing capacity mainly.|
|9||Tower Type||1. 3 Leg Self supported Angular Towers|
|2. 3 Leg Self supported Tubular Towers|
|3. 4 Leg Self supported Angular Towers|
|4. 4 Leg Self supported Tubular Towers|
|5. Guyed Mast|
|6. Monopole Tower|
|7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree|
|8. RDS Tower: Rapid Deploy Site/Tower|
|9. Rooftop Towers|
|10. Smart Poles|
|10||Warranty||1. Tower structures: 10 years|
|2. Camouflaged towers|
|a. Barks: 10 years|
|b. Branches and leaves: 3 years|
|11||Return Period||50 Years|
|12||Accessories||1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White|
|2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light|
|3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.|
|4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.|
|5. ACDB as per specified by clients|
|6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.|
|7. Fall arrest system: GB and CE certificate fall arrest system.|
|8. Optical Fiber Cable: as per specified by client|
|9. Generator: as per specified by client|
|10. Canopy and Generator Cage: as per specified by clients|
