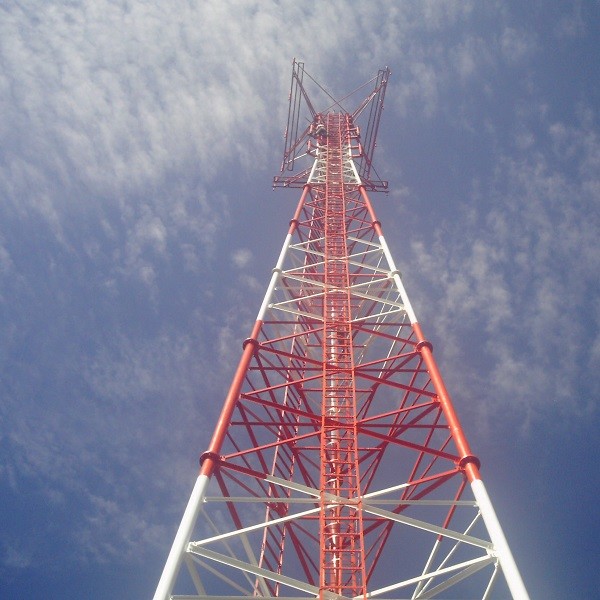

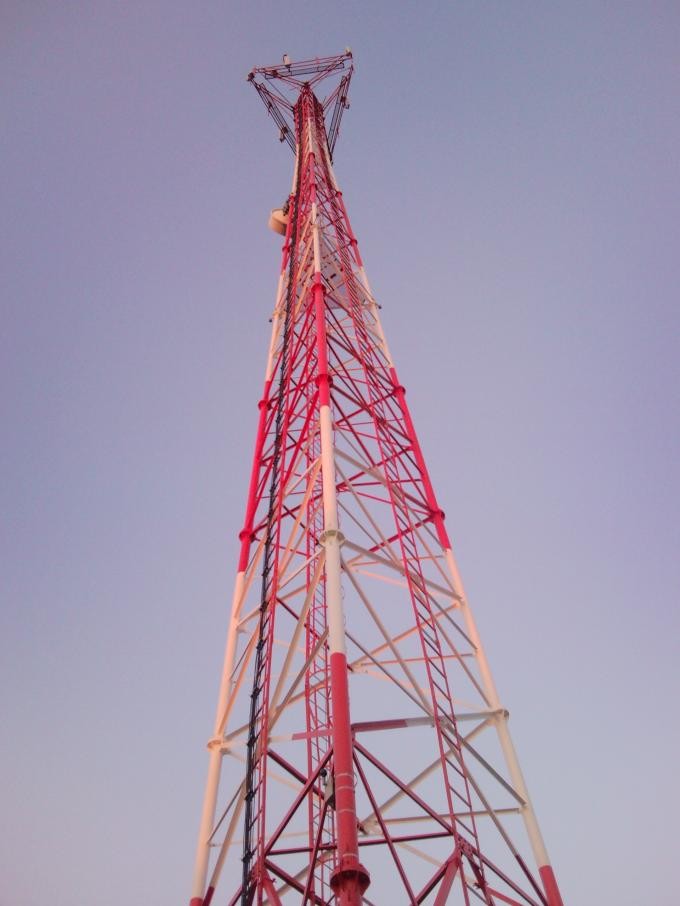

ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower

ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower

  • ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower
  • ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower
ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Tubular Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Get the newest prices
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 30000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Tower Material: Q235B & Q355B
Welding: ISO 1461 2009, ASTM A123 Bolts And Nuts: Mainly ISO 898 Grade 6.8 And 8.8 Bolts
Basic Wind Speed: 110~160km/h_3 Second Gust Lifetime: 20-30 Years
High Light:

ISO 1461 HDG Telecommunication Steel Tower

,

ASTM A123 HDG Telecommunication Steel Tower

,

HDG Tubular Steel Tower

Telecommunication Steel Tubular Tower Hot Dip Galvanized Steel Tower



Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on

a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for

standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped

with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights,

lightning protection kit and more. All of the accessories can be installed at any desired height and orientation

according to customer Specification.



Telecommunication Tower- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G, European Standard and others
2 Design Loading

1. Antenna load area as per specified by Clients worldwide.

2. Wind speed as per requested by the clients.

3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.

4 Structure Classification II
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9 Tower Type

1. 3 Leg Self supported Angular Towers

2. 3 Leg Self supported Tubular Towers

3. 4 Leg Self supported Angular Towers

4. 4 Leg Self supported Tubular Towers

5. Guyed Mast

6. Monopole Tower

7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree

8. RDS Tower: Rapid Deploy Site/Tower

9. Rooftop Towers

10. Smart Poles

10 Warranty

1. Tower structures: 10 years

2. Camouflaged towers

a. Barks: 10 years

b. Branches and leaves: 3 years

11 Return Period 50 Years
12 Accessories

1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White

2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light

3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.

4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.

5. ACDB as per specified by clients

6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.

7. Fall arrest system: GB and CE certificate fall arrest system.

8. Optical Fiber Cable: as per specified by client

9. Generator: as per specified by client

10. Canopy and Generator Cage: as per specified by clients



Our Workshop:

Before put into production, all the material must pass the chemical and physical analysis to make sure that

they have met the requested strength and component. we have more than 15 inspection procedures from

incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee

the quantity.

ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower 0

ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower 1

ISO 1461 ASTM A123 HDG Tubular Telecommunication Steel Tower 2
