Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Suntech |
| Certification: | ASTM Approved,ISO |
| Model Number: | Monopole Cell Tower |
| Minimum Order Quantity: | 1 Tower |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Containers |
| Delivery Time: | 30-35 days after deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 Metric Ton/Metric Tons Per Year |
| Material: | Q235B & Q355B Equivalent To A36/S235JR & Gr50/S355JR | Surface Treatment: | Hot Dip Galvanization |
|---|---|---|---|
| Votage Grade: | 10-750KV | Application: | Telecommunication Tower |
| Usage: | Transmission Tower | Wind Speed: | 120KM/H |
| High Light: | 750KV Monopole Telecom Tower,10KV Monopole Telecom Tower,Wear Resistant Monopole Cell Tower |
||

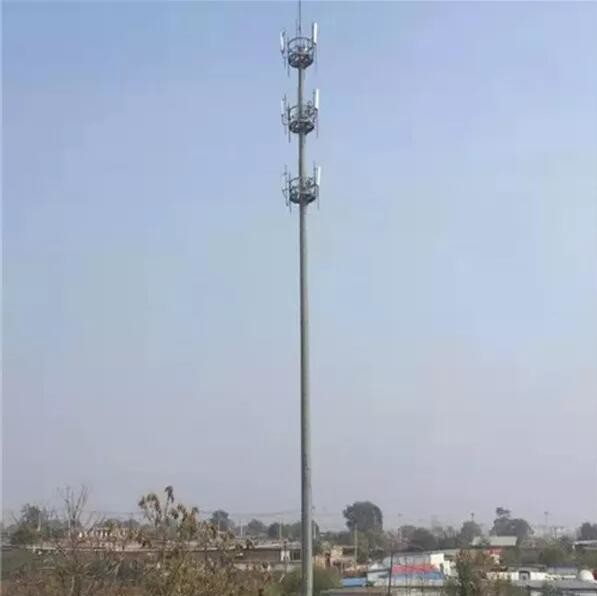

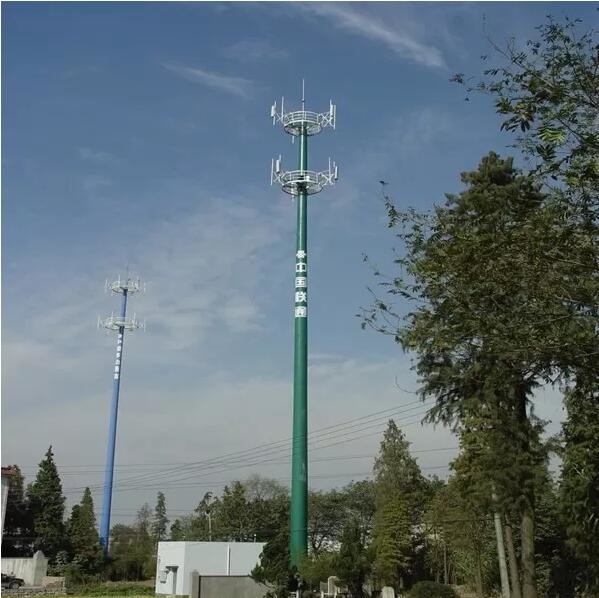

Wear Resistant Telecom Tower Monopole Cell Tower 10 - 750KV ASTM Approved
Monopole cell tower telecom toweris a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.
Detailed Product description as follows :
1. Circle /Polygonal
2. Slip joint/Flange Joint
3. Hot Dip Galvanization (ASTM123)
4. ISO9001 / ISO14001 certificate
5. Slip joints result in easy field assembly and erection
6. Painting Optional: according to customer's requirements
7. Design standard: TIA/EIA-222-G/F
8. Design software: MS TOWER
Products Features:
Available Height:10m-60M
Wind Pressure:50KM/H-280 KM/H
Material:main shaft :Q345B/S355JR/ASTM572;Spare parts:Q235B/S235JR/ASTM A36
Anchor bolts:grade 8.8 hot-dipped zinc galvanization
Zinc thickness: minimum 100um for main structure
Vivid appearance,less space,easy to install
Structure:Slip joint/Flange Joint
Lifetime:main shaft and steel parts more than 30 years
Delivery Lead Time: 35 Days after we receive deposit or LC
Antenna Loading Quantity Range:3-18 PCS
Microwave Dish loading Quantity Range :3-18 PCS
Working &Resting Platform Quantity Range:1-3 PCS
Concealed mounts available
Cable and Ladder: can be assembled by customer's request
Typically assembled and erected within a matter of hours
May be fitted with various combinations of feedline entry, feedline exit, and personal access ports
Cable line:supported on internal J-hooks
Earthing Cable and earthing bar : according to customer's request,generally our offer not including this part
Complete line of antenna mounts and accessories available
Provided with step bolts and cable-type safety climb system
Normal camouflaged pine tree tower including : lightning rod ,antenna support ,microwave suppport ,platform ,main section shaft,connection bolts ,anchor bolts ,templates ,internal/external ladder ,cable tray and etc
Aviation light: we can make it if customer request
Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project
management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide
fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries
Association,China Standard, American National Standards Institute, Uniform Building Code, and others).
| Products | 4G Cell Monopole Tower for Telecommunication Industry |
| Height | 15-60m |
| Applications | Telecommunication, Broadcasting, etc |
| Shape | Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc) |
| Material | Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material |
| Surface Treatment | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 |
| Can be powder coated or painted according to clients' request | |
| Wall Thickness | 2~30mm |
| Once Forming | 16m Once forming without joint |
| Welding | Welding of cell monopole tower complies with AWS D1.1 standard. |
| CO2 welding or submerged arc auto methods | |
| No fissure, scar, overlap, layer or other defects | |
| Internal and external welding makes cell monopole tower more beautiful in shape | |
| If customers need any other requirements of welding on cell monopole tower , we also can make adjustment ad your request | |
| Joint | Cell monopole tower is jointed with insert mode, flange mode. |
| Base plate | Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement. |
| Life Period | More than 25 years, it is according to installing environment |
Contact Person: Peter
Tel: 86-13958364836
