4G Steel Monopole Tower For Telecommunication Industry

1 Tower
MOQ
Get the newest prices
Price
4G Steel Monopole Tower For Telecommunication Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Straight Pole ,Tensile Pole ,Turn Pole
Wind Pressure: 5-190 KM/H
Application: Mobile Communication Tower
Usage: Transmission Line Tower
Surface Treatment: Hot Dip Galvanised
Life: More Than 30 Years
Highlight:

4G Steel Monopole Tower

,

Telecommunication Industry Steel Monopole Tower

,

4G Monopole Telecommunication Steel Tower
Basic Infomation
Place of Origin: China
Brand Name: Suntech
Certification: ISO
Model Number: Telecommunication Tower
Payment & Shipping Terms
Packaging Details: Exported Containers
Delivery Time: 30-35 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80000 Metric Ton/Metric Tons Per Year
Product Description

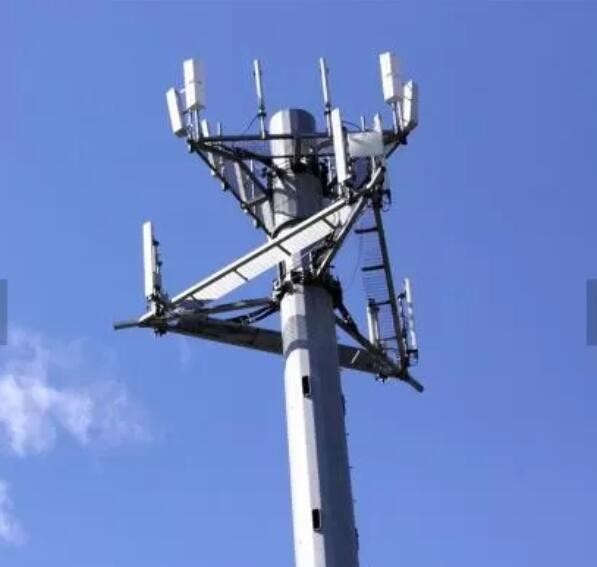

Telecommunication Industry 4G Monopole Cell Steel Tower



Product Name: 4G Cell Monopole Tower for Telecommunication Industry

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.

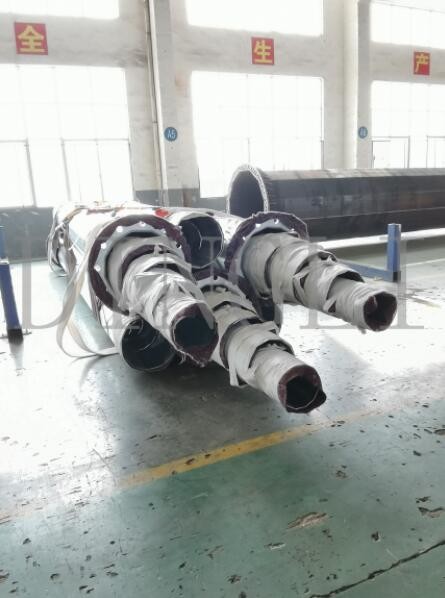

Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles Cell Phone Radios Monopole TowerContainer bag for Connection Bolts.



Specifications of :4G Cell Monopole Tower

Products
  • 4G Cell Monopole Tower for Telecommunication Industry
Height
  • 15-60m
Applications
  • Telecommunication, Broadcasting, etc
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material
  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Surface Treatment
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
  • Can be powder coated or painted according to clients' request
Wall Thickness
  • 2~30mm
Once Forming
  • 16m Once forming without joint
Welding
  • Welding of cell monopole tower complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes cell monopole tower more beautiful in shape
  • If customers need any other requirements of welding on cell monopole tower , we also can make adjustment ad your request
Joint
  • Cell monopole tower is jointed with insert mode, flange mode.
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Life Period
  • More than 30 years, it is according to installing environment

Hot dip galvanizing Standard Steel thickness/mm Mean coating thickness/μm Metallic element Content
Pole shafts,cross arms&bolted on accessories ASTM A123/A123M-15 AS/NZS 4680 >6 85

Mn



0.25%-0.40%


<3-6 70
1.5-3 55

Cu



<0.15%


<1.5 55
Bolts,nuts&washers

GB/T 5267.3-2008

(ISO 10684-2004)

 _____ ≥ 54 P

<0.025%


Foundation bolts ASTM A153/A153M-09 _____ ≥ 54

S



 <0.03%



Features of galvanized telescopic antenna mast:

1, wide application

2, standardized design

3, matured technology

4, good quality



Engineering and Design Management



“Design and technology,professional and common, software and hardware” is cell monopole tower

design philosophy. We have established a close cooperative relationship with design institutions and companies

in the same industry. Through close communication and explorations, our company took in advanced design

concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



In the R&D Department, there are many experienced senior research & design staff and rigid development

network, which ensure our design proposals meet customer demand, even exceed their expectations.
