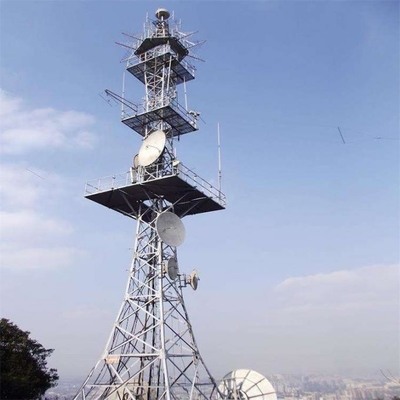

Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission

Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission

  • Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission
  • Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission
Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission
Product Details:
Place of Origin: China
Brand Name: Suntech
Certification: ISO9001
Model Number: Telecom Cell Tower
Payment & Shipping Terms:
Minimum Order Quantity: 1 Tower
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: 35-45days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Metric Ton/Metric Tons Per Year
Contact Now
Detailed Product Description
Material: Hot Roll Steel Q235,345,ASTM A36 A572 Gr50 Or Customized Height: 20-80m
Wind Speed: 30M/S Certification: ISO9001:2008 SGS COC
Bolts And Nuts: Grade 8.8/6.8/4.8;DIN7990, DIN931, DIN933;ISO4032, ISO4034 Model: Self Supporting Cell Site Tower
High Light:

Q345 Steel Telecom Cell Site

,

Q235 Steel Telecom Cell Site

,

Self Supporting Q345 Steel Telecom Tower

Self Supporting Steel Telecom Cell Site Tower Singal Transmission Phone 4g Mobile Aerial



Quick Detail:
1. Design Code TIA/EIA-222-G/F Structure Steel
2. GradeMild SteelHigh Tensile Steel GB/T 700:Q235B, Q235C,Q235DGB/T1591:Q345B, Q345C, Q3455D,

ASTM A36, ASTM A572, Gr50EN10025: S235JR, S235J0, S235J2EN10025: S355JR, S355J0, S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree operational speed
5. Tension strength (Mpa) 360~510470~630
6. Yield strength (t≤16mm) (Mpa) 355235
7. Elongation (%) 2024
8. Impact strength KV (J) 27(20°C) ---Q235B(S235JR)27(20°C)--- Q345B(S355JR)27(0°C)--- Q235C(S235J0)27(0°C)--- Q345C(S355J0)27(-20°C)--- Q235D(S235J2)27(-20°C)--- Q345D(S355J2)
9. Bolts & Nuts Grade 4.8, 6.8, 8.8
10. Standards formechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933;
11.2 Nuts ISO4032, ISO4034;
11.3 Washers DIN7989, DIN127B, ISO7091
12. Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding (SAW)



Specification

Model Number:
4 Legs Angle Tower
Standard
ANSI/TIA-222-G-2005
Material:
Hot roll Steel Q235,345,ASTM A36 A572 Gr50 or customized
Nuts & Bolts:
Grade 8.8/6.8/4.8;DIN7990, DIN931, DIN933;ISO4032, ISO4034
Height:
20-80m
Wind Speed:
30M/S
Surface treatment
Hot Dip Galvanized or painted ,customized
Lifetime:
More than 30 Years



Self Supporting Q235 Q345 Steel Telecom Cell Site Tower For Signal Transmission 0
